    - Telescopic slides, steel for side mounting, full extension, load capacity up to 50 kg
      - Telescopic slides, steel for side mounting, full extension, load capacity up to 50 kg, Form C

Item description/product images

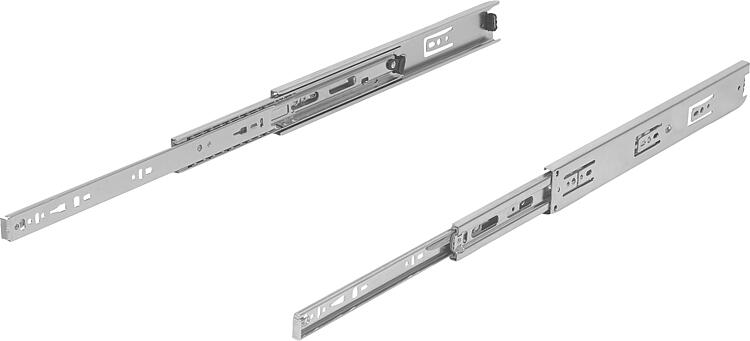

DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold in pairs.Note:By telescopic slides with full extension, the travel is roughly equal to the installed length, which ensures greater comfort and accessibility. When the release lever is actuated, the drawer can be taken out easily and separated from the guide. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used.

Not suitable for horizontal mounting.

The head height of the fastening screws should not exceed 2.5 mm otherwise there is a risk of collision with other parts of the slide.

Form A:
When closing, the movement of the telescopic slides is dampened by the soft closing feature and they move automatically into the end position.
The load capacities specified are based on the maximum value by 80,000 cycles.

Form B:
The telescopic slides slide automatically and almost soundlessly out with just a light push. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 80,000 cycles.

Form C:

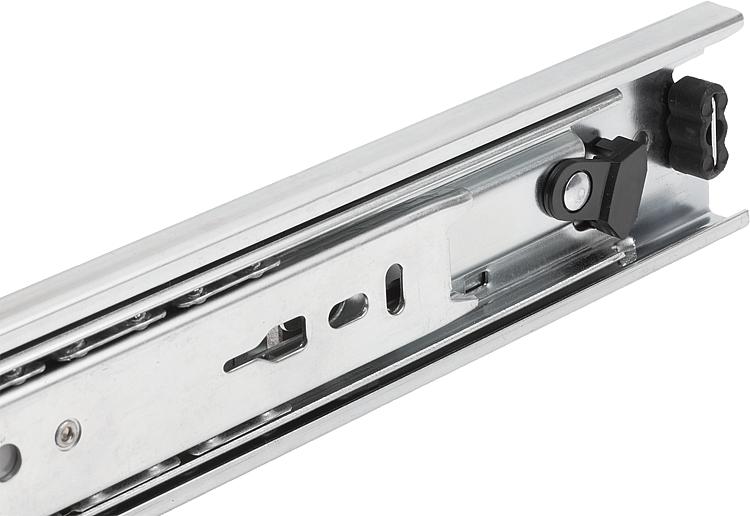

Latches in open and closed positions. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 10,000 or 80,000 cycles.

Form D:
Latches in closed position.
The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 80,000 cycles.

Form E:
The self-retraction function enables the slides to slide automatically into the closed position.The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 10,000 or 80,000 cycles.Temperature range:Form A:
+10 °C to +40 °C.

Form B:
-20 °C to +70 °C.

Form C:
-20 °C to +70 °C.

Form D:
-20 °C to +70 °C.Advantages:Soft close
Push to open
Self-retracting
Latches in open and closed positions
Quick frontal releaseAccessory:Steel mounting bracket for telescopic slides K2393Drawing reference:

Form B:
1) Mounting hole for K2381.2040022, K2381.2050022,
K2381.2060022, K2381.2040035, K2381.2050035 and K2381.2060035 not provided

Form C:
1) Mounting hole for K2381.30600, K2381.30650 and K2381.30700 provided
2) Mounting hole for K2381.30250 not provided

Form D:
1) Mounting hole for K2381.40148, K2381.40199
and K2381.40250 not provided
2) Mounting hole for K2381.40600, K2381.40650
and K2381.40700 provided
3) Mounting hole for K2381.30600 and K2381.30650 not provided

Form E:
1) Mounting hole for K2381.5040027, K2381.5050027, K2381.5040041 and K2381.5050041 not provided

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2381_C Telescopic slides, steel for side mounting, full extension, load capacity up to 50 kg, Form C

240 kB

Drawings

Item selection/filter

Order No.	Form	Form definition	Assembly	Product type	Load capacity per pair (80,000 cycles) kg	Loading pair (10,000 cycles) kg	Packaging type	Price
K2381.30250	C	latches in closed and open positions	side mounting	standard	41	47	1 piece = 1 pair	39.74 €
K2381.30300	C	latches in closed and open positions	side mounting	standard	42	48	1 piece = 1 pair	40.21 €
K2381.30350	C	latches in closed and open positions	side mounting	standard	43	49	1 piece = 1 pair	40.74 €
K2381.30400	C	latches in closed and open positions	side mounting	standard	44	50	1 piece = 1 pair	41.72 €
K2381.30450	C	latches in closed and open positions	side mounting	standard	45	50	1 piece = 1 pair	42.70 €
K2381.30500	C	latches in closed and open positions	side mounting	standard	45	50	1 piece = 1 pair	44.09 €
K2381.30550	C	latches in closed and open positions	side mounting	standard	45	50	1 piece = 1 pair	47.36 €
K2381.30600	C	latches in closed and open positions	side mounting	standard	45	50	1 piece = 1 pair	48.24 €
K2381.30650	C	latches in closed and open positions	side mounting	standard	44	49	1 piece = 1 pair	49.95 €
K2381.30700	C	latches in closed and open positions	side mounting	standard	43	48	1 piece = 1 pair	53.49 €

Order No.	A	A1	A2	A3	A4	A5	A6	A7	A8	A9	A10	A11	B	H	Travel S	L	Accessories KIPP	Price
K2381.30250	35	-	160	-	-	-	96	-	-	-	-	192	12,7	45,7	243	250	-	39.74 €
K2381.30300	35	-	224	-	-	-	96	-	-	-	-	242	12,7	45,7	305	300	-	40.21 €
K2381.30350	35	128	224	-	-	-	128	-	-	-	-	292	12,7	45,7	356	350	K2393.0347	40.74 €
K2381.30400	35	128	224	320	-	-	128	-	-	-	-	342	12,7	45,7	406	400	K2393.0397	41.72 €
K2381.30450	35	128	-	352	-	-	128	-	-	320	-	392	12,7	45,7	457	450	K2393.0447	42.70 €
K2381.30500	35	128	-	416	-	-	128	-	-	320	-	442	12,7	45,7	508	500	K2393.0497	44.09 €
K2381.30550	35	128	-	352	-	480	128	-	-	320	416	492	12,7	45,7	559	550	-	47.36 €
K2381.30600	35	128	224	352	480	-	128	224	-	416	-	542	12,7	45,7	610	600	-	48.24 €
K2381.30650	35	128	224	352	544	-	128	224	-	416	544	592	12,7	45,7	660	650	-	49.95 €
K2381.30700	35	128	224	352	544	-	128	224	288	416	544	642	12,7	45,7	711	700	-	53.49 €
