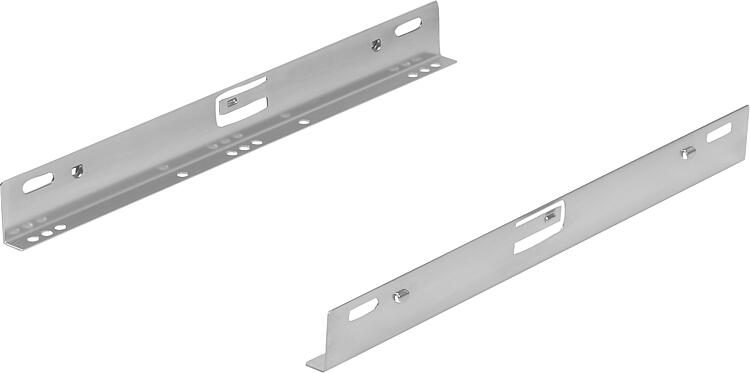

K2393Mounting bracket, steel for telescopic slides |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Mounting bracket steel.Version:Mounting bracket electro zinc-plated.Note for ordering:Sold in pairs.
Note:As an option for floor, platform or side mounting.Accessory:K2381 Telescopic slides, steel, for side mounting, full extension, load capacity up to 50 kg.
K2383 Telescopic slides, steel, for side mounting, partial extension, load capacity up to 50 kg from L= 400.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

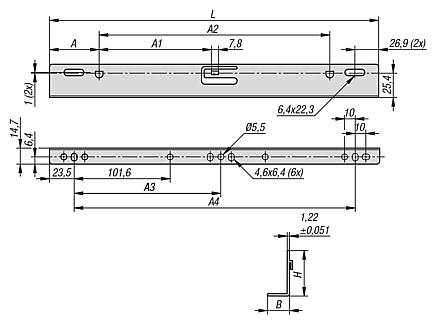

| Order No. | A
| A1 | A2 | A3 | A4 | B | H | L | Packaging type | CAD | Acc. | Price | Order |
|---|
| K2393.0347 | 55,1 | 114,4 | 236,5 | 150 | 300 | 14,7 | 35,7 | 346,7 | 1 piece = 1 pair |  | | 8.47 € | | | K2393.0397 | 55,1 | 139,4 | 286,5 | 175 | 350 | 14,7 | 35,7 | 396,7 | 1 piece = 1 pair | | | 6.84 € | | | K2393.0447 | 55,1 | 164,4 | 336,6 | 200 | 400 | 14,7 | 35,7 | 446,8 | 1 piece = 1 pair | | | 7.28 € | | | K2393.0497 | 55,1 | 189,4 | 386,6 | 225 | 450 | 14,7 | 35,7 | 496,8 | 1 piece = 1 pair | | | 8.11 € | |
