K2018Telescopic slides, steel Double-T form, full extension, load... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Rail and race ball-bearing steel.
Balls, ball-bearing steel.
Ball cage steel.
Version:Rail, runner and ball cage electro zinc-plated.
Race inductively hardened.
Balls hardened.Note for ordering:Sold individually.Note:Full extension consisting of two guide rails which form the intermediate element when connected to each other to form a double T profile, plus two runners which form the link to the connection construction as fixed and moving elements. High load rating and low bending thanks to compact, square design with high base load. The maximum travel is greater than the closed length of the telescopic slide. Mounting should be carried out horizontally if possible. To allow access to all fastening holes, the locking screw in the rail must be removed before mounting and replaced afterwards. Travel in both directions is achieved by removing the locking screws.
The internal stops limit the cage. Provide external stops for a loaded system.

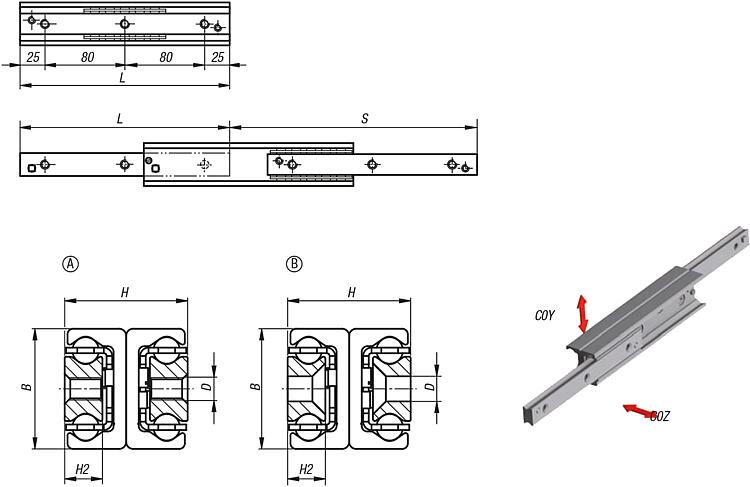

Form A:
Use grade 10.9 screws to install the slide.
Form B:
Use grade 10.9 DIN EN ISO 10642 countersunk head screws to install the slide.
The maximum traversing speed is 0.8 m/s.
Application temperature -30 °C to +170 °C.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form
| Form definition | Size | B | D
for screw | H | H2 | L | Travel
S | C0Y
N | C0Z
N | No. of
holes | CAD | Acc. | Price | Order |
|---|
| K2018.1280210 | A | with tapped holes | 28 | 28 | M5 | 26 | 7,5 | 210 | 232 | 432 | 302 | 3 |  | | 207.38 € | | | K2018.1280370 | A | with tapped holes | 28 | 28 | M5 | 26 | 7,5 | 370 | 380 | 968 | 471 | 5 | | | 277.35 € | | | K2018.1280450 | A | with tapped holes | 28 | 28 | M5 | 26 | 7,5 | 450 | 464 | 1169 | 385 | 6 | | | 309.00 € | | | K2018.1280530 | A | with tapped holes | 28 | 28 | M5 | 26 | 7,5 | 530 | 548 | 1107 | 325 | 7 | | | 342.82 € | | | K2018.1350370 | A | with tapped holes | 35 | 35 | M6 | 34 | 10 | 370 | 406 | 1025 | 718 | 5 | | | 313.57 € | | | K2018.1350450 | A | with tapped holes | 35 | 35 | M6 | 34 | 10 | 450 | 494 | 1250 | 793 | 6 | | | 365.57 € | | | K2018.1350530 | A | with tapped holes | 35 | 35 | M6 | 34 | 10 | 530 | 558 | 1685 | 728 | 7 | | | 397.19 € | | | K2018.1350610 | A | with tapped holes | 35 | 35 | M6 | 34 | 10 | 610 | 646 | 1908 | 626 | 8 | | | 446.81 € | | | K2018.1430450 | A | with tapped holes | 43 | 43 | M8 | 44 | 13,5 | 450 | 486 | 1828 | 1279 | 6 | | | 464.79 € | | | K2018.1430530 | A | with tapped holes | 43 | 43 | M8 | 44 | 13,5 | 530 | 556 | 2375 | 1434 | 7 | | | 498.64 € | | | K2018.1430610 | A | with tapped holes | 43 | 43 | M8 | 44 | 13,5 | 610 | 626 | 2934 | 1300 | 8 | | | 557.12 € | | | K2018.1430770 | A | with tapped holes | 43 | 43 | M8 | 44 | 13,5 | 770 | 796 | 3055 | 1016 | 10 | | | 667.82 € | | | K2018.1430930 | A | with tapped holes | 43 | 43 | M8 | 44 | 13,5 | 930 | 966 | 2506 | 833 | 12 | | | 735.47 € | | | K2018.2280210 | B | with countersink | 28 | 28 | M5 | 26 | 7,5 | 210 | 232 | 432 | 302 | 3 | | | 207.38 € | | | K2018.2280370 | B | with countersink | 28 | 28 | M5 | 26 | 7,5 | 370 | 380 | 968 | 471 | 5 | | | 277.35 € | | | K2018.2280450 | B | with countersink | 28 | 28 | M5 | 26 | 7,5 | 450 | 464 | 1169 | 385 | 6 | | | 309.00 € | | | K2018.2280530 | B | with countersink | 28 | 28 | M5 | 26 | 7,5 | 530 | 548 | 1107 | 325 | 7 | | | 342.82 € | | | K2018.2350370 | B | with countersink | 35 | 35 | M6 | 34 | 10 | 370 | 406 | 1025 | 718 | 5 | | | 313.57 € | | | K2018.2350450 | B | with countersink | 35 | 35 | M6 | 34 | 10 | 450 | 494 | 1250 | 793 | 6 | | | 365.57 € | | | K2018.2350530 | B | with countersink | 35 | 35 | M6 | 34 | 10 | 530 | 558 | 1685 | 728 | 7 | | | 397.19 € | | | K2018.2350610 | B | with countersink | 35 | 35 | M6 | 34 | 10 | 610 | 646 | 1908 | 626 | 8 | | | 446.81 € | | | K2018.2430450 | B | with countersink | 43 | 43 | M8 | 44 | 13,5 | 450 | 486 | 1828 | 1279 | 6 | | | 464.79 € | | | K2018.2430530 | B | with countersink | 43 | 43 | M8 | 44 | 13,5 | 530 | 556 | 2375 | 1434 | 7 | | | 498.64 € | | | K2018.2430610 | B | with countersink | 43 | 43 | M8 | 44 | 13,5 | 610 | 626 | 2934 | 1300 | 8 | | | 557.12 € | | | K2018.2430770 | B | with countersink | 43 | 43 | M8 | 44 | 13,5 | 770 | 796 | 3055 | 1016 | 10 | | | 667.82 € | | | K2018.2430930 | B | with countersink | 43 | 43 | M8 | 44 | 13,5 | 930 | 966 | 2506 | 833 | 12 | | | 735.47 € | |
