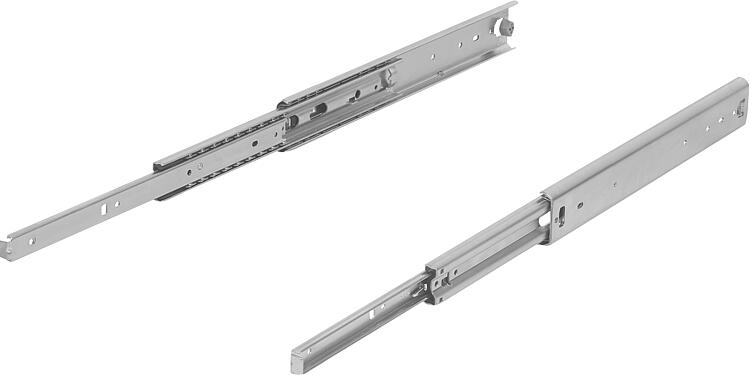

K2392Telescopic slides, steel for side mounting, full extension,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold in pairs.
Note:By telescopic slides with full extension, the travel is roughly equal to the installed length, which ensures greater comfort and accessibility. When the release lever is actuated, the drawer can be taken out easily and separated from the guide. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacities specified refer to the maximum value for 10,000 cycles.
Not suitable for horizontal mounting.
Suitable for a slide spacing up to 1,000 mm.Advantages:Quick frontal release
Light running
Precise guidance for high lateral stabilitySpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Assembly | Product type | Loading
per pair
kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K2392.0305 | side mounting | standard | 90 | 1 piece = 1 pair |  | | 70.31 € | | | K2392.0356 | side mounting | standard | 90 | 1 piece = 1 pair | | | 75.61 € | | | K2392.0406 | side mounting | standard | 100 | 1 piece = 1 pair | | | 81.00 € | | | K2392.0457 | side mounting | standard | 110 | 1 piece = 1 pair | | | 86.13 € | | | K2392.0508 | side mounting | standard | 124 | 1 piece = 1 pair | | | 91.43 € | | | K2392.0559 | side mounting | standard | 110 | 1 piece = 1 pair | | | 96.72 € | | | K2392.0610 | side mounting | standard | 100 | 1 piece = 1 pair | | | 102.12 € | | | K2392.0660 | side mounting | standard | 92 | 1 piece = 1 pair | | | 106.72 € | | | K2392.0711 | side mounting | standard | 83 | 1 piece = 1 pair | | | 112.64 € | |

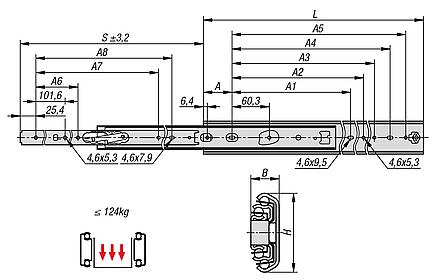

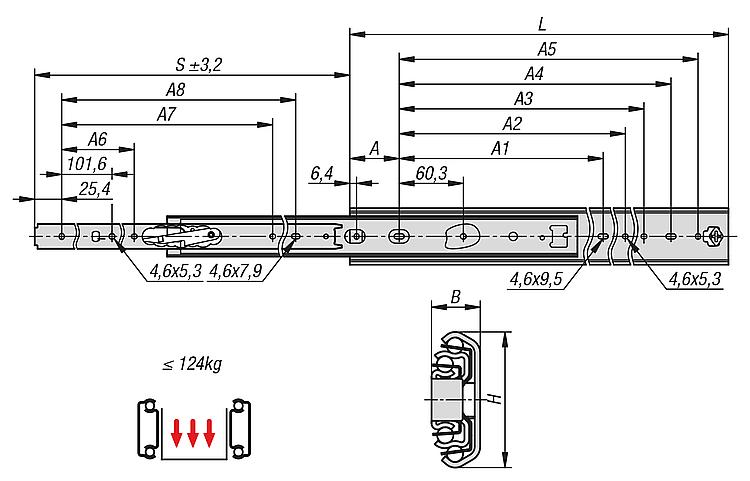

| Order No. | A
| A1 | A2 | A3 | A4 | A5 | A6 | A7 | A8 | A11 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|
| K2392.0305 | 46,4 | - | 135,4 | 179,1 | 204,5 | 229,9 | - | - | 228,6 | 225,5 | 19,1 | 53,1 | 305 | 305 | | | 70.31 € | | | K2392.0356 | 46,4 | - | 186,2 | 229,9 | 255,3 | 280,7 | - | - | 279,4 | 276,6 | 19,1 | 53,1 | 356 | 356 | | | 75.61 € | | | K2392.0406 | 46,4 | - | 237 | 280,7 | 306,1 | 331,5 | - | 257,3 | 330,2 | 327,1 | 19,1 | 53,1 | 406 | 406 | | | 81.00 € | | | K2392.0457 | 46,4 | - | 287,8 | 331,5 | 356,9 | 382,3 | - | 308,1 | 381 | 377,9 | 19,1 | 53,1 | 457 | 457 | | | 86.13 € | | | K2392.0508 | 46,4 | 215,9 | 338,6 | 382,3 | 407,7 | 433,1 | 203,2 | 358,9 | 431,8 | 428,7 | 19,1 | 53,1 | 508 | 508 | | | 91.43 € | | | K2392.0559 | 46,4 | 241,3 | 389,4 | 433,1 | 458,5 | 483,9 | 228,6 | 409,7 | 482,6 | 479,5 | 19,1 | 53,1 | 559 | 559 | | | 96.72 € | | | K2392.0610 | 46,4 | 266,7 | 440,2 | 483,9 | 509,3 | 534,7 | 254 | 460,5 | 533,4 | 530,3 | 19,1 | 53,1 | 610 | 610 | | | 102.12 € | | | K2392.0660 | 46,4 | 292,1 | 491 | 534,7 | 560,1 | 585,5 | 279,4 | 511,3 | 584,2 | 581,1 | 19,1 | 53,1 | 660 | 660 | | | 106.72 € | | | K2392.0711 | 46,4 | 317,5 | 541,8 | 585,5 | 610,9 | 636,3 | 304,8 | 562,1 | 635 | 631,9 | 19,1 | 53,1 | 711 | 711 | | | 112.64 € | |
