K2379Telescopic slides, steel for surface mounting, partial... |
go back |
|

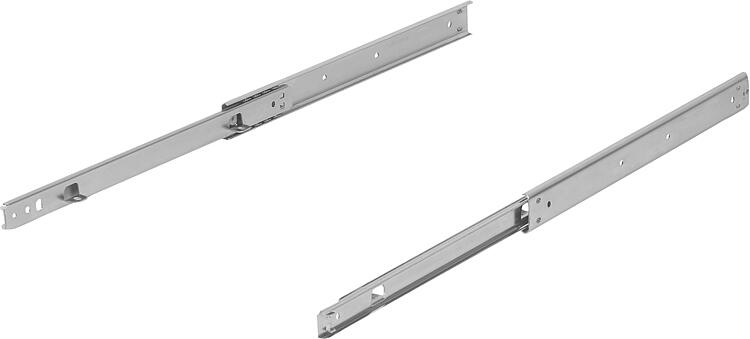

Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold in pairs.
Note:On telescopic slides with partial extension both sides, the travel is less than the installed length. These are a low-cost solution for guiding drawers or similar items with little friction and high lateral stability. Latches in the middle position. The side fasteners on the inner rail are replaced by support brackets. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 50,000 cycles.
Not suitable for horizontal mounting.
The head height of the fastening screws should not exceed 2.5 mm otherwise there is a risk of collision with other parts of the slide.Advantages:Pulls out in both directions
Light running
Precise guidance for high lateral stabilitySpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Assembly | Product type | Loading
per pair
kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K2379.0305 | surface mounting | standard | 35 | 1 piece = 1 pair |  | | 40.82 € | | | K2379.0356 | surface mounting | standard | 35 | 1 piece = 1 pair | | | 45.88 € | | | K2379.0406 | surface mounting | standard | 35 | 1 piece = 1 pair | | | 46.34 € | | | K2379.0457 | surface mounting | standard | 35 | 1 piece = 1 pair | | | 46.84 € | | | K2379.0508 | surface mounting | standard | 32 | 1 piece = 1 pair | | | 47.26 € | | | K2379.0558 | surface mounting | standard | 31 | 1 piece = 1 pair | | | 47.95 € | | | K2379.0610 | surface mounting | standard | 29 | 1 piece = 1 pair | | | 48.58 € | | | K2379.0660 | surface mounting | standard | 27 | 1 piece = 1 pair | | | 48.95 € | | | K2379.0711 | surface mounting | standard | 24 | 1 piece = 1 pair | | | 49.63 € | |

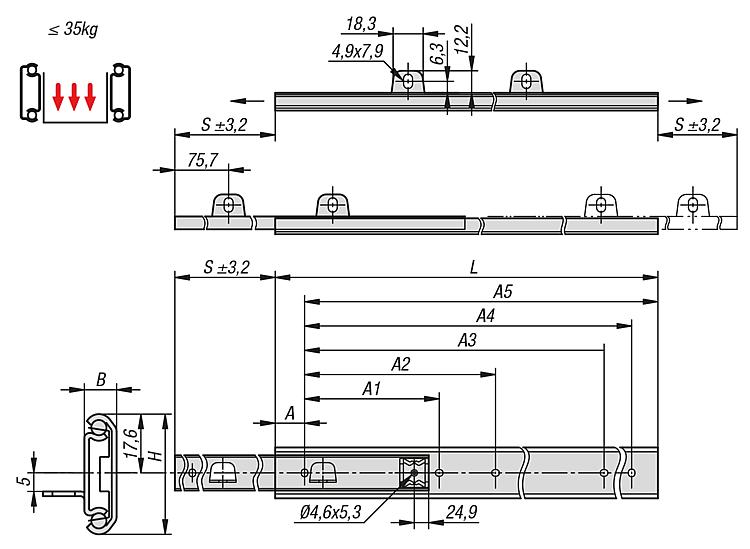

| Order No. | A
| A1 | A2 | A3 | A4 | A5 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|
| K2379.0305 | 28,9 | 111 | - | 136,4 | 247,7 | 276,1 | 9,5 | 35,3 | 221,5 | 305 | | | 40.82 € | | | K2379.0356 | 29,1 | 111 | - | 187,2 | 298,5 | 326,9 | 9,5 | 35,3 | 272,3 | 356 | | | 45.88 € | | | K2379.0406 | 28,3 | 111 | - | 136,4 | 349,3 | 377,7 | 9,5 | 35,3 | 297,7 | 406 | | | 46.34 € | | | K2379.0457 | 28,5 | 111 | 199,9 | 288,8 | 400,1 | 428,5 | 9,5 | 35,3 | 323,1 | 457 | | | 46.84 € | | | K2379.0508 | 28,7 | 111 | 225,3 | 339,6 | 450,9 | 479,3 | 9,5 | 35,3 | 373,9 | 508 | | | 47.26 € | | | K2379.0558 | 27,9 | 111 | 250,7 | 390,4 | 501,7 | 530,1 | 9,5 | 35,3 | 399,3 | 558 | | | 47.95 € | | | K2379.0610 | 29,1 | 111 | 276,1 | 441,2 | 552,5 | 580,9 | 9,5 | 35,3 | 424,7 | 610 | | | 48.58 € | | | K2379.0660 | 28,3 | 111 | 301,5 | 492 | 603,3 | 631,7 | 9,5 | 35,3 | 475,5 | 660 | | | 48.95 € | | | K2379.0711 | 28,5 | 111 | 326,9 | 542,8 | 654,1 | 682,5 | 9,5 | 35,3 | 500,9 | 711 | | | 49.63 € | |
