K2388Telescopic slides, steel for side mounting, over-extension,... |
go back |
|
Item description/product images |
|
|

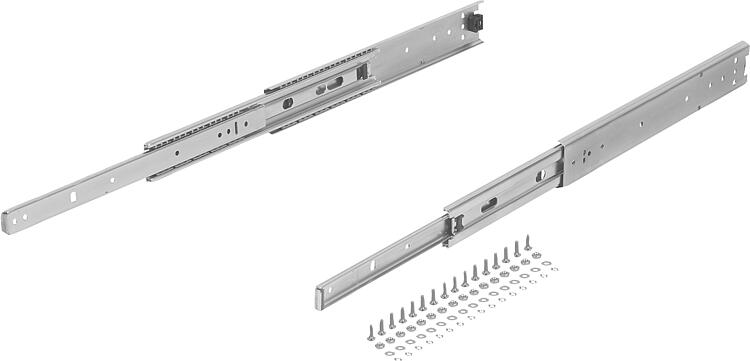

DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold in pairs.
Note:On telescopic slides with over-extension, the travel is greater than the installed length. Latches in closed position.
The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 10,000 cycles.
The load capacity is ca. 75% lower by horizontal mounting.Advantages:Latches in closed position
Suitable for flat mounting
Light runningSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Assembly | Product type | Loading
per pair
kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K2388.0305 | side mounting | standard | 68 | 1 piece = 1 pair |  | | 45.36 € | | | K2388.0356 | side mounting | standard | 67 | 1 piece = 1 pair | | | 47.36 € | | | K2388.0406 | side mounting | standard | 67 | 1 piece = 1 pair | | | 48.93 € | | | K2388.0457 | side mounting | standard | 66 | 1 piece = 1 pair | | | 50.44 € | | | K2388.0508 | side mounting | standard | 66 | 1 piece = 1 pair | | | 52.07 € | | | K2388.0559 | side mounting | standard | 64 | 1 piece = 1 pair | | | 53.65 € | | | K2388.0610 | side mounting | standard | 61 | 1 piece = 1 pair | | | 55.07 € | | | K2388.0660 | side mounting | standard | 58 | 1 piece = 1 pair | | | 56.69 € | | | K2388.0711 | side mounting | standard | 55 | 1 piece = 1 pair | | | 58.26 € | |
| Order No. | A
| A1 | A2 | A3 | A4 | A5 | A6 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|

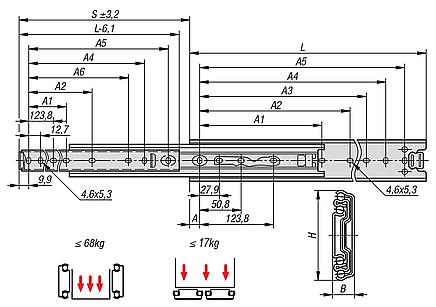

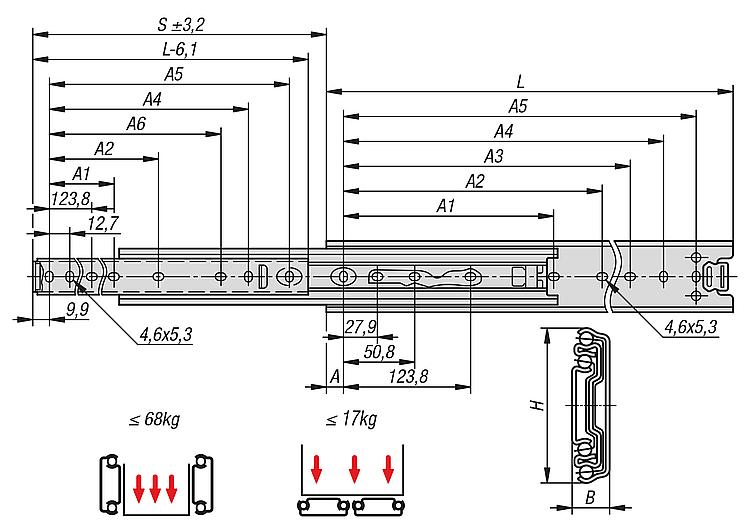

| K2388.0305 | 16 | - | 162,1 | 209,5 | 235 | 260,3 | 222,2 | 12,7 | 50,8 | 330 | 305 | | | 45.36 € | | | K2388.0356 | 16 | - | 212,8 | 260,3 | 285,7 | 311,1 | 273 | 12,7 | 50,8 | 381 | 356 | | | 47.36 € | | | K2388.0406 | 16 | - | 263,6 | 311,1 | 336,5 | 361,9 | 323,8 | 12,7 | 50,8 | 432 | 406 | | | 48.93 € | | | K2388.0457 | 16 | 212,8 | 314,4 | 361,9 | 387,3 | 412,7 | 374,6 | 12,7 | 50,8 | 483 | 457 | | | 50.44 € | | | K2388.0508 | 16 | 238,2 | 365,2 | 412,7 | 438,1 | 463,5 | 425,4 | 12,7 | 50,8 | 533 | 508 | | | 52.07 € | | | K2388.0559 | 16 | 263,6 | 416 | 463,5 | 488,9 | 514,3 | 476,2 | 12,7 | 50,8 | 584 | 559 | | | 53.65 € | | | K2388.0610 | 16 | 289 | 466,8 | 514,3 | 539,7 | 565,1 | 527 | 12,7 | 50,8 | 635 | 610 | | | 55.07 € | | | K2388.0660 | 16 | 314,4 | 517,6 | 565,1 | 590,5 | 615,9 | 577,8 | 12,7 | 50,8 | 686 | 660 | | | 56.69 € | | | K2388.0711 | 16 | 339,8 | 568,4 | 615,9 | 641,3 | 666,7 | 628,6 | 12,7 | 50,8 | 737 | 711 | | | 58.26 € | |
