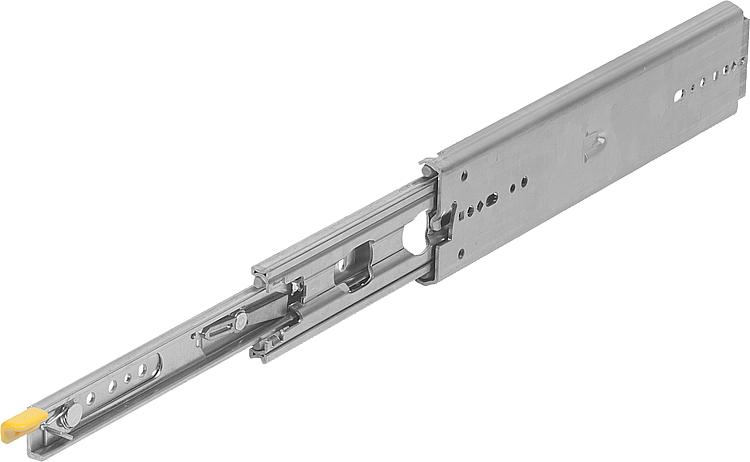

K1719_BTelescopic slides, steel for side mounting, full extension, load... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Slides steel.
Ball cages steel.
Balls, steel.Version:Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.Note for ordering:Sold individually.Note:By telescopic slides with full extension, the travel is roughly equal to the installed length, which ensures greater comfort and accessibility. Latches in open and closed positions. The telescopic slides can only be opened or closed after the release lever has been actuated. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacities specified refer to the maximum value for 10,000 cycles.
Not suitable for horizontal mounting.
The head height of the fastening screws should not exceed 4,8 mm otherwise there is a risk of collision with other parts of the slide.
These telescopic slides cannot be ordered as a pair.
If double sided latching is desired, a left and a right version must be ordered.
If single sided latching is desired, a combination with K1720 is possible.Advantages:Latches in open and closed positions
For heavy duty use
Manual release
Light runningAccessory:Steel telescopic slides K1720.Note:The maximum load rating refers to a pair of telescopic slides.Drawing reference:1) Mounting hole by K1719.03050 and K1719.03051 not provided
2) Mounting hole by K1719.05590 and K1719.05591 not provided
3) Cut-out for carriage bolt
4) Reference dimension only, not a mounting hole
5) Form B, identical demensions as the right-hand version DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Form definition | Assembly | Product type | Loading
per pair
kg | Packaging type | CAD | Acc. | Price | Order |
|---|
| K1719.03051 | B | right | side mounting | standard | 272 | packaged individually |  | | 112.22 € | | | K1719.03561 | B | right | side mounting | standard | 272 | packaged individually | | | 116.47 € | | | K1719.04061 | B | right | side mounting | standard | 272 | packaged individually | | | 123.57 € | | | K1719.04571 | B | right | side mounting | standard | 272 | packaged individually | | | 131.13 € | | | K1719.05081 | B | right | side mounting | standard | 272 | packaged individually | | | 136.77 € | | | K1719.05591 | B | right | side mounting | standard | 272 | packaged individually | | | 145.40 € | | | K1719.06101 | B | right | side mounting | standard | 267 | packaged individually | | | 156.37 € | | | K1719.06601 | B | right | side mounting | standard | 264 | packaged individually | | | 164.55 € | | | K1719.07111 | B | right | side mounting | standard | 261 | packaged individually | | | 172.49 € | | | K1719.07621 | B | right | side mounting | standard | 258 | packaged individually | | | 183.12 € | | | K1719.08131 | B | right | side mounting | standard | 256 | packaged individually | | | 194.48 € | | | K1719.08641 | B | right | side mounting | standard | 256 | packaged individually | | | 229.98 € | | | K1719.09141 | B | right | side mounting | standard | 248 | packaged individually | | | 236.48 € | | | K1719.10161 | B | right | side mounting | standard | 237 | packaged individually | | | 275.91 € | | | K1719.10671 | B | right | side mounting | standard | 228 | packaged individually | | | 298.62 € | | | K1719.12191 | B | right | side mounting | standard | 204 | packaged individually | | | 369.51 € | | | K1719.13721 | B | right | side mounting | standard | 196 | packaged individually | | | 414.68 € | | | K1719.15241 | B | right | side mounting | standard | 182 | packaged individually | | | 488.74 € | |
| Order No. | A
| A1 | A2 | A3 | A4 | A5 | A6 | A7 | A8 | A9 | A10 | A11 | A12 | A13 | A14 | A15 | A16 | B | H | Travel
S | L | CAD | Acc. | Price | Order |
|---|
| K1719.03051 | 12,7 | - | - | - | 203,2 | 260,4 | 279,4 | - | - | - | - | - | - | - | 153,9 | 179,3 | 198,4 | 19,1 | 76,2 | 304,8 | 304,8 | | | 112.22 € | | | K1719.03561 | 12,7 | - | - | - | 254 | 311,2 | 330,2 | - | - | - | - | - | - | - | 204,7 | 230,1 | 249,2 | 19,1 | 76,2 | 355,6 | 355,6 | | | 116.47 € | | | K1719.04061 | 12,7 | - | - | - | 304,8 | 362 | 381 | - | - | - | - | - | - | - | 255,5 | 280,9 | 300 | 19,1 | 76,2 | 406,4 | 406,4 | | | 123.57 € | | | K1719.04571 | 12,7 | - | - | - | 355,6 | 412,8 | 431,8 | 127 | - | - | - | - | - | - | 306,3 | 331,7 | 350,8 | 19,1 | 76,2 | 457,2 | 457,2 | | | 131.13 € | | | K1719.05081 | 12,7 | - | - | - | 406,4 | 463,6 | 482,6 | 127 | - | - | - | - | - | 296,6 | 357,1 | 382,5 | 401,6 | 19,1 | 76,2 | 508 | 508 | | | 136.77 € | | | K1719.05591 | 12,7 | - | - | - | 457,2 | 514,4 | 533,4 | 127 | 190,5 | - | - | - | - | 347,7 | 407,9 | 433,3 | 452,4 | 19,1 | 76,2 | 558,8 | 558,8 | | | 145.40 € | | | K1719.06101 | 12,7 | - | - | - | 508 | 565,2 | 584,2 | 127 | 190,5 | - | - | - | - | 398,5 | 458,7 | 484,1 | 503,2 | 19,1 | 76,2 | 609,6 | 609,6 | | | 156.37 € | | | K1719.06601 | 12,7 | - | - | - | 558,8 | 616 | 635 | 127 | 190,5 | - | - | - | - | 449,3 | 509,5 | 534,9 | 554 | 19,1 | 76,2 | 660,4 | 660,4 | | | 164.55 € | | | K1719.07111 | 12,7 | - | - | - | 609,6 | 666,8 | 685,8 | 127 | 190,5 | - | - | - | - | 500,1 | 560,3 | 585,7 | 604,8 | 19,1 | 76,2 | 711,2 | 711,2 | | | 172.49 € | | | K1719.07621 | 12,7 | 235 | - | 501,7 | 660,4 | 717,6 | 736,6 | 127 | 190,5 | - | - | - | - | 550,9 | 611,1 | 636,5 | 655,6 | 19,1 | 76,2 | 762 | 762 | | | 183.12 € | | | K1719.08131 | 12,7 | 235 | - | 552,5 | 711,2 | 768,4 | 787,4 | 127 | 190,5 | - | - | - | - | 601,7 | 661,9 | 687,3 | 706,4 | 19,1 | 76,2 | 812,8 | 812,8 | | | 194.48 € | | | K1719.08641 | 12,7 | 235 | - | 603,2 | 762 | 819,1 | 838,2 | 127 | 190,5 | - | 520,7 | - | - | 652,5 | 712,7 | 738,1 | 757,1 | 19,1 | 76,2 | 863,6 | 863,6 | | | 229.98 € | | | K1719.09141 | 12,7 | 235 | - | 654,1 | 812,8 | 869,9 | 889 | 127 | 190,5 | 368,3 | 520,7 | - | - | 703,3 | 763,5 | 788,9 | 807,9 | 19,1 | 76,2 | 914,4 | 914,4 | | | 236.48 € | | | K1719.10161 | 12,7 | 235 | - | 755,7 | 914,4 | 971,5 | 990,6 | 127 | 190,5 | 368,3 | - | - | - | 804,9 | 865,1 | 890,5 | 909,5 | 19,1 | 76,2 | 1016 | 1016 | | | 275.91 € | | | K1719.10671 | 12,7 | 235 | - | 806,5 | 965,2 | 1022,4 | 1041,4 | 127 | 190,5 | 368,3 | - | - | - | 855,7 | 915,9 | 941,3 | 960,4 | 19,1 | 76,2 | 1066,8 | 1066,8 | | | 298.62 € | | | K1719.12191 | 12,7 | 235 | - | 958,9 | 1117,6 | 1174,8 | 1193,8 | 127 | 190,5 | 368,3 | 520,7 | 825,5 | - | 1008,1 | 1068,3 | 1093,7 | 1112,8 | 19,1 | 76,2 | 1219,2 | 1219,2 | | | 369.51 € | | | K1719.13721 | 12,7 | 235 | - | 958,9 | 1270 | 1327,2 | 1346,2 | 127 | 190,5 | 368,3 | 520,7 | 825,5 | - | 1160,5 | 1220,8 | 1246,2 | 1265,2 | 19,1 | 76,2 | 1371,6 | 1371,6 | | | 414.68 € | | | K1719.15241 | 12,7 | 235 | 596,9 | 958,9 | 1422,4 | 1479,5 | 1498,6 | 127 | 190,5 | 368,3 | 520,7 | 825,5 | 1130,3 | 1312,9 | 1373,1 | 1398,5 | 1417,8 | 19,1 | 76,2 | 1524 | 1524 | | | 488.74 € | |
