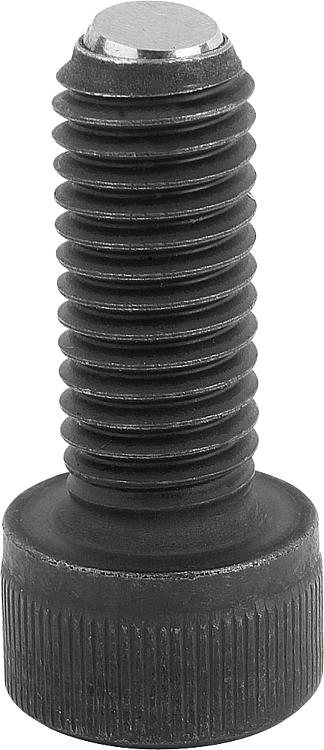

K0380_BVBall-end thrust screws with head Form BV, flattened ball with... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Screw carbon steel.
Ball ball-bearing steel.Version:Screw grade min. 10.9, black.
Ball hardened, bright. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | D3 | L | L1 | L2 | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0380.40620 | BV | M6 | 3,2 | 10 | 20 | 3 | 6 | 4 | 5 | 6 | | | 9.92 € | | | K0380.40630 | BV | M6 | 3,2 | 10 | 30 | 3 | 6 | 4 | 5 | 6 | | | 9.92 € | | | K0380.40640 | BV | M6 | 3,2 | 10 | 40 | 16 | 6 | 4 | 5 | 6 | | | 9.92 € | | | K0380.40820 | BV | M8 | 4,5 | 13 | 20 | 3,5 | 8 | 5,5 | 6 | 9 |  | | 10.91 € | | | K0380.40835 | BV | M8 | 4,5 | 13 | 35 | 3,5 | 8 | 5,5 | 6 | 9 | | | 10.96 € | | | K0380.40850 | BV | M8 | 4,5 | 13 | 50 | 22 | 8 | 5,5 | 6 | 9 | | | 11.12 € | | | K0380.41025 | BV | M10 | 6 | 16 | 25 | 4,5 | 10 | 7 | 8 | 12 | | | 11.84 € | | | K0380.41040 | BV | M10 | 6 | 16 | 40 | 4,5 | 10 | 7 | 8 | 12 | | | 11.94 € | | | K0380.41060 | BV | M10 | 6 | 16 | 60 | 28 | 10 | 7 | 8 | 12 | | | 12.05 € | | | K0380.41230 | BV | M12 | 7,2 | 18 | 30 | 5 | 12 | 8,5 | 10 | 18 | | | 13.84 € | | | K0380.41250 | BV | M12 | 7,2 | 18 | 50 | 5 | 12 | 8,5 | 10 | 18 | | | 13.96 € | | | K0380.41280 | BV | M12 | 7,2 | 18 | 80 | 44 | 12 | 8,5 | 10 | 18 | | | 14.29 € | | | K0380.41640 | BV | M16 | 10,7 | 24 | 40 | 6 | 16 | 12 | 14 | 36 | | | 17.49 € | | | K0380.41660 | BV | M16 | 10,7 | 24 | 60 | 6 | 16 | 12 | 14 | 36 | | | 18.01 € | | | K0380.41680 | BV | M16 | 10,7 | 24 | 80 | 36 | 16 | 12 | 14 | 36 | | | 18.67 € | | | K0380.42050 | BV | M20 | 13,5 | 30 | 50 | 7,5 | 20 | 15 | 17 | 60 | | | 25.38 € | | | K0380.42080 | BV | M20 | 13,5 | 30 | 80 | 28 | 20 | 15 | 17 | 60 | | | 26.24 € | | | K0380.420100 | BV | M20 | 13,5 | 30 | 100 | 48 | 20 | 15 | 17 | 60 | | | 26.65 € | | | K0380.42460 | BV | M24 | 15,8 | 36 | 60 | 9 | 24 | 18 | 19 | 80 | | | 35.44 € | | | K0380.42490 | BV | M24 | 15,8 | 36 | 90 | 30 | 24 | 18 | 19 | 80 | | | 37.55 € | | | K0380.424120 | BV | M24 | 15,8 | 36 | 120 | 60 | 24 | 18 | 19 | 80 | | | 38.87 € | |
