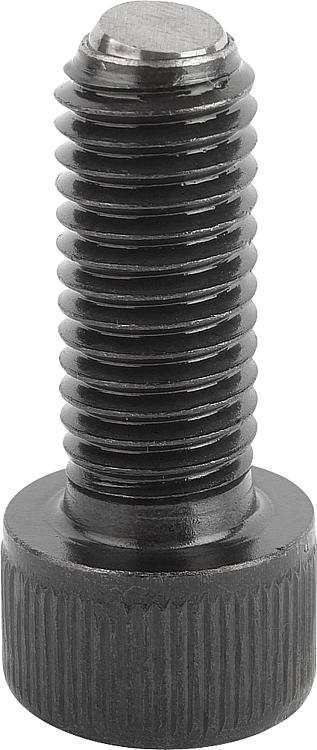

K0380_BBall-end thrust screws with head Form B, with flattened ball |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Screw carbon steel.
Ball ball-bearing steel.Version:Screw grade min. 10.9, black.
Ball hardened, bright.Note:Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | D3 | L | L1 | L2 | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0380.20410 | B | M4 | 1,4 | 7 | 9.7 | 2,1 | 4 | 2,5 | 3 | 3,5 |  | | 3.43 € | | | K0380.20416 | B | M4 | 1,4 | 7 | 15,7 | 2,1 | 4 | 2,5 | 3 | 3,5 | | | 3.43 € | | | K0380.20420 | B | M4 | 1,4 | 7 | 19,7 | 2,1 | 4 | 2,5 | 3 | 3,5 | | | 3.43 € | | | K0380.20512 | B | M5 | 2 | 8,5 | 11,7 | 2,4 | 5 | 3 | 4 | 4,5 | | | 3.59 € | | | K0380.20516 | B | M5 | 2 | 8,5 | 15,7 | 2,4 | 5 | 3 | 4 | 4,5 | | | 3.59 € | | | K0380.20520 | B | M5 | 2 | 8,5 | 19,7 | 2,4 | 5 | 3 | 4 | 4,5 | | | 3.59 € | | | K0380.20620 | B | M6 | 3,2 | 10 | 20 | 3 | 6 | 4 | 5 | 9 | | | 3.66 € | | | K0380.20630 | B | M6 | 3,2 | 10 | 30 | 3 | 6 | 4 | 5 | 9 | | | 3.71 € | | | K0380.20640 | B | M6 | 3,2 | 10 | 40 | 16 | 6 | 4 | 5 | 9 | | | 3.77 € | | | K0380.20820 | B | M8 | 4,5 | 13 | 20 | 3,5 | 8 | 5,5 | 6 | 15 | | | 4.58 € | | | K0380.20835 | B | M8 | 4,5 | 13 | 35 | 3,5 | 8 | 5,5 | 6 | 15 | | | 4.69 € | | | K0380.20850 | B | M8 | 4,5 | 13 | 50 | 22 | 8 | 5,5 | 6 | 15 | | | 4.84 € | | | K0380.21025 | B | M10 | 6 | 16 | 25 | 4,5 | 10 | 7 | 8 | 20 | | | 5.29 € | | | K0380.21040 | B | M10 | 6 | 16 | 40 | 4,5 | 10 | 7 | 8 | 20 | | | 5.50 € | | | K0380.21060 | B | M10 | 6 | 16 | 60 | 28 | 10 | 7 | 8 | 20 | | | 5.71 € | | | K0380.21230 | B | M12 | 7,2 | 18 | 30 | 5 | 12 | 8,5 | 10 | 30 | | | 7.41 € | | | K0380.21250 | B | M12 | 7,2 | 18 | 50 | 5 | 12 | 8,5 | 10 | 30 | | | 7.69 € | | | K0380.21280 | B | M12 | 7,2 | 18 | 80 | 44 | 12 | 8,5 | 10 | 30 | | | 8.31 € | | | K0380.21640 | B | M16 | 10,7 | 24 | 40 | 6 | 16 | 12 | 14 | 60 | | | 10.60 € | | | K0380.21660 | B | M16 | 10,7 | 24 | 60 | 6 | 16 | 12 | 14 | 60 | | | 11.12 € | | | K0380.21680 | B | M16 | 10,7 | 24 | 80 | 36 | 16 | 12 | 14 | 60 | | | 11.85 € | | | K0380.22050 | B | M20 | 13,5 | 30 | 50 | 7,5 | 20 | 15 | 17 | 90 | | | 19.23 € | | | K0380.22080 | B | M20 | 13,5 | 30 | 80 | 28 | 20 | 15 | 17 | 90 | | | 20.09 € | | | K0380.220100 | B | M20 | 13,5 | 30 | 100 | 48 | 20 | 15 | 17 | 90 | | | 21.09 € | | | K0380.22460 | B | M24 | 15,8 | 36 | 60 | 9 | 24 | 18 | 19 | 120 | | | 28.78 € | | | K0380.22490 | B | M24 | 15,8 | 36 | 90 | 30 | 24 | 18 | 19 | 120 | | | 32.70 € | | | K0380.224120 | B | M24 | 15,8 | 36 | 120 | 60 | 24 | 18 | 19 | 120 | | | 34.41 € | |
