DescriptionMaterial:Body carbon steel. Ball, ball-bearing steel 1.3505.Version:Body black oxidised, ball hardened (50 - 55 HRC).Note:Self-aligning pads serve as stops, supports and thrust pads in fixture construction. They can also be installed in existing clamping devices, e.g. arness clamps.
Ball is secured against rotation.Drawing reference:

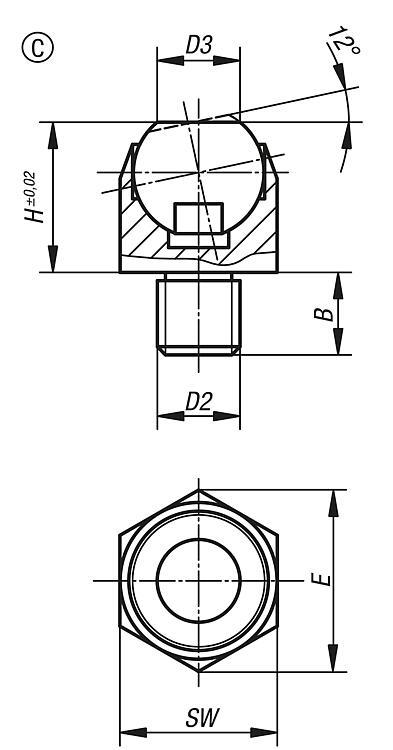

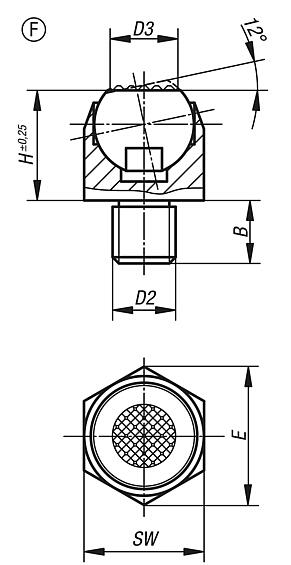

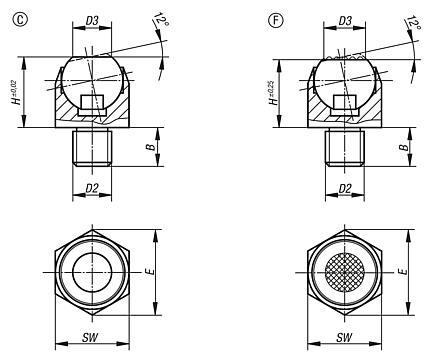

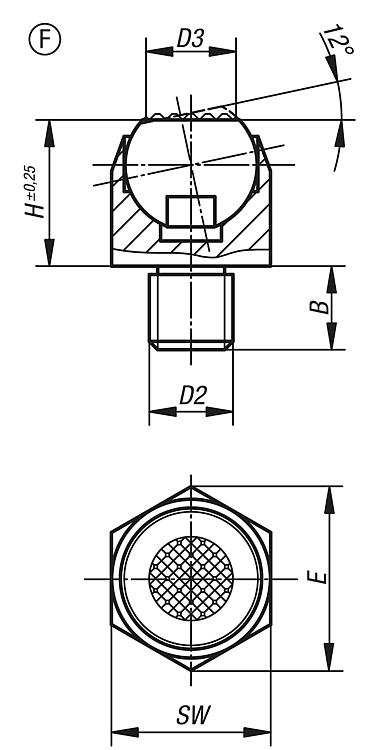

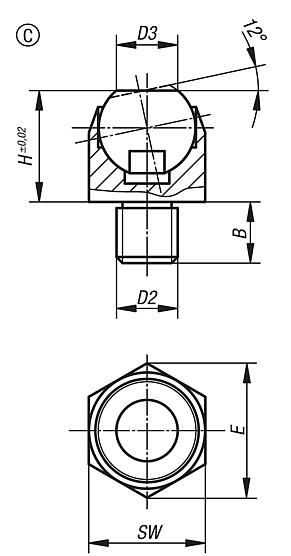

Form C: external thread, smooth flattened ball Form F: external thread, serrated flattened ball
