K0381Ball-end thrust screws with head stainless steel |
go back |
|
|
DescriptionMaterial:Stainless steelVersion:Bright.Note:Form A with full ball is used when a clean, polished pressure surface is required.
Non-parallel faces can be clamped, tensioned or supported distortion-free using Forms B and F with flattened balls, as the pivoting balls adapt up to 9°.
To prevent the ball from pivoting by more than 9°, Forms BV and FV with rotation lock must be selected.

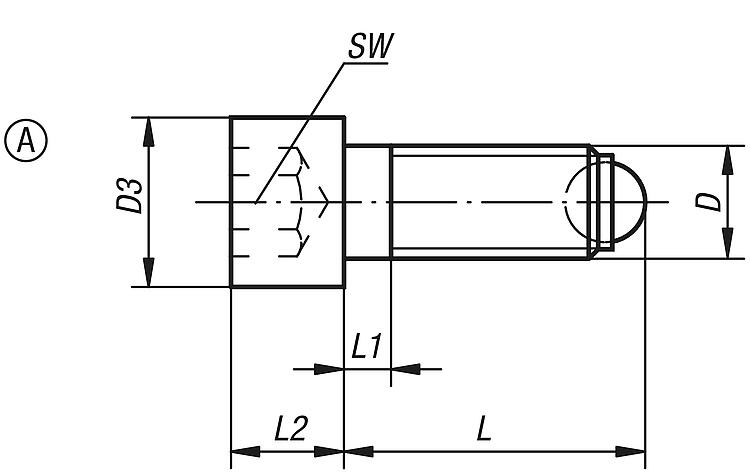

Drawing reference:Form A: with full ball

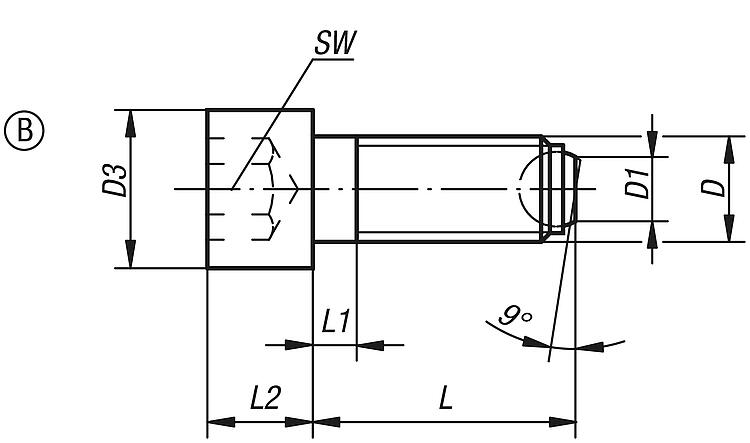

Form B: with flattened ball DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

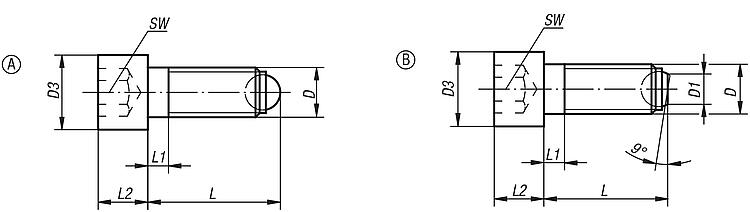

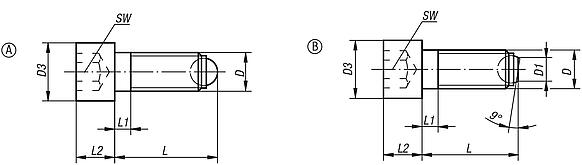

Drawings (total overview) |
Ball-end thrust screws with head stainless steel Form A, with full ball |
More information |
| Order No. | Form | D | D3 | L | L1 | L2 | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0381.10410 | A | M4 | 7 | 9,9 | 2,1 | 4 | 2,5 | 3 | 3,5 |  | | 3.78 € | | | K0381.10416 | A | M4 | 7 | 15,9 | 2,1 | 4 | 2,5 | 3 | 3,5 | | | 3.78 € | | | K0381.10420 | A | M4 | 7 | 19,9 | 2,1 | 4 | 2,5 | 3 | 3,5 | | | 3.78 € | | | K0381.10512 | A | M5 | 8,5 | 12,1 | 2,4 | 5 | 3 | 4 | 4,5 | | | 3.87 € | | | K0381.10516 | A | M5 | 8,5 | 16,1 | 2,4 | 5 | 3 | 4 | 4,5 | | | 3.87 € | | | K0381.10520 | A | M5 | 8,5 | 20,1 | 2,4 | 5 | 3 | 4 | 4,5 | | | 3.87 € | | | K0381.10620 | A | M6 | 10 | 20,8 | 3 | 6 | 4 | 5 | 9 | | | 3.91 € | | | K0381.10630 | A | M6 | 10 | 30,8 | 3 | 6 | 4 | 5 | 9 | | | 3.95 € | | | K0381.10640 | A | M6 | 10 | 40,8 | 16 | 6 | 4 | 5 | 9 | | | 3.99 € | | | K0381.10820 | A | M8 | 13 | 21,2 | 3,5 | 8 | 5,5 | 6 | 15 | | | 4.49 € | | | K0381.10835 | A | M8 | 13 | 36,2 | 3,5 | 8 | 5,5 | 6 | 15 | | | 4.96 € | | | K0381.10850 | A | M8 | 13 | 51,2 | 22 | 8 | 5,5 | 6 | 15 | | | 5.50 € | | | K0381.11025 | A | M10 | 16 | 26,7 | 4,5 | 10 | 7 | 8 | 20 | | | 5.92 € | | | K0381.11040 | A | M10 | 16 | 41,7 | 4,5 | 10 | 7 | 8 | 20 | | | 6.36 € | | | K0381.11060 | A | M10 | 16 | 61,7 | 28 | 10 | 7 | 8 | 20 | | | 6.90 € | | | K0381.11230 | A | M12 | 18 | 32 | 5 | 12 | 8,5 | 10 | 30 | | | 7.91 € | | | K0381.11250 | A | M12 | 18 | 52 | 5 | 12 | 8,5 | 10 | 30 | | | 8.78 € | | | K0381.11280 | A | M12 | 18 | 82 | 44 | 12 | 8,5 | 10 | 30 | | | 9.66 € | | | K0381.11640 | A | M16 | 24 | 43,3 | 6 | 16 | 12 | 14 | 60 | | | 13.48 € | | | K0381.11660 | A | M16 | 24 | 63,3 | 6 | 16 | 12 | 14 | 60 | | | 14.09 € | | | K0381.11680 | A | M16 | 24 | 83,3 | 36 | 16 | 12 | 14 | 60 | | | 15.53 € | |
|
Ball-end thrust screws with head stainless steel Form B, with flattened ball |
More information |
| Order No. | Form | D | D1 | D3 | L | L1 | L2 | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0381.20410 | B | M4 | 1,4 | 7 | 9,7 | 2,1 | 4 | 2,5 | 3 | 3,5 | | | 5.48 € | | | K0381.20416 | B | M4 | 1,4 | 7 | 15,7 | 2,1 | 4 | 2,5 | 3 | 3,5 | | | 5.48 € | | | K0381.20420 | B | M4 | 1,4 | 7 | 19,7 | 2,1 | 4 | 2,5 | 3 | 3,5 | | | 5.48 € | | | K0381.20512 | B | M5 | 2 | 8,5 | 11,7 | 2,4 | 5 | 3 | 4 | 4,5 | | | 5.62 € | | | K0381.20516 | B | M5 | 2 | 8,5 | 15,7 | 2,4 | 5 | 3 | 4 | 4,5 | | | 5.62 € | | | K0381.20520 | B | M5 | 2 | 8,5 | 19,7 | 2,4 | 5 | 3 | 4 | 4,5 | | | 5.62 € | | | K0381.20620 | B | M6 | 3,2 | 10 | 20 | 3 | 6 | 4 | 5 | 9 | | | 5.92 € | | | K0381.20630 | B | M6 | 3,2 | 10 | 30 | 3 | 6 | 4 | 5 | 9 | | | 5.92 € | | | K0381.20640 | B | M6 | 3,2 | 10 | 40 | 16 | 6 | 4 | 5 | 9 | | | 5.97 € | | | K0381.20820 | B | M8 | 4,5 | 13 | 20 | 3,5 | 8 | 5,5 | 6 | 15 | | | 7.36 € | | | K0381.20835 | B | M8 | 4,5 | 13 | 35 | 3,5 | 8 | 5,5 | 6 | 15 | | | 7.84 € | | | K0381.20850 | B | M8 | 4,5 | 13 | 50 | 22 | 8 | 5,5 | 6 | 15 | | | 8.46 € | | | K0381.21025 | B | M10 | 6 | 16 | 25 | 4,5 | 10 | 7 | 8 | 20 | | | 9.06 € | | | K0381.21040 | B | M10 | 6 | 16 | 40 | 4,5 | 10 | 7 | 8 | 20 | | | 9.56 € | | | K0381.21060 | B | M10 | 6 | 16 | 60 | 28 | 10 | 7 | 8 | 20 | | | 9.97 € | | | K0381.21230 | B | M12 | 7,2 | 18 | 30 | 5 | 12 | 8,5 | 10 | 30 | | | 11.96 € | | | K0381.21250 | B | M12 | 7,2 | 18 | 50 | 5 | 12 | 8,5 | 10 | 30 | | | 12.87 € | | | K0381.21280 | B | M12 | 7,2 | 18 | 80 | 44 | 12 | 8,5 | 10 | 30 | | | 13.83 € | | | K0381.21640 | B | M16 | 10,7 | 24 | 40 | 6 | 16 | 12 | 14 | 60 | | | 20.43 € | | | K0381.21660 | B | M16 | 10,7 | 24 | 60 | 6 | 16 | 12 | 14 | 60 | | | 20.77 € | | | K0381.21680 | B | M16 | 10,7 | 24 | 80 | 36 | 16 | 12 | 14 | 60 | | | 22.31 € | |
|
