K0288Self-aligning pads external thread, with O-ring |
go back |
|
|
DescriptionMaterial:Body carbon steel.
Ball:
Form C, F, tool steel.
Form K POM.
Form O stainless steel diamond impregnated.
Form P stainless steel with polyurethane surface.Version:Body tempered, black oxidised.
Ball:
Form C, F hardened, black oxidised.
Form K POM ball, white.
Form O surface comparable to 100 grade abrasive grit.
Form P polyurethane, hardness 60 Shore.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces. They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Ball secured against rotation.
Form O: The abrasive diamond surface is bonded firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.
Form P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion-resistant and does not discolour.
It offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

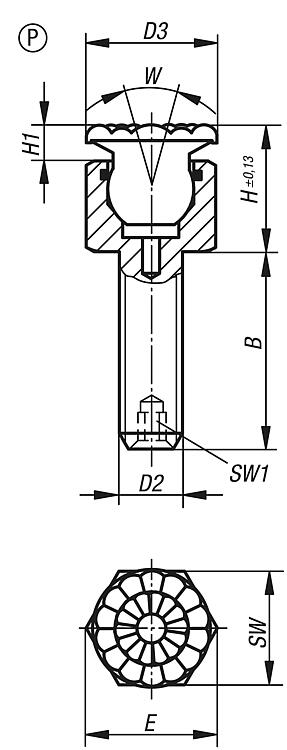

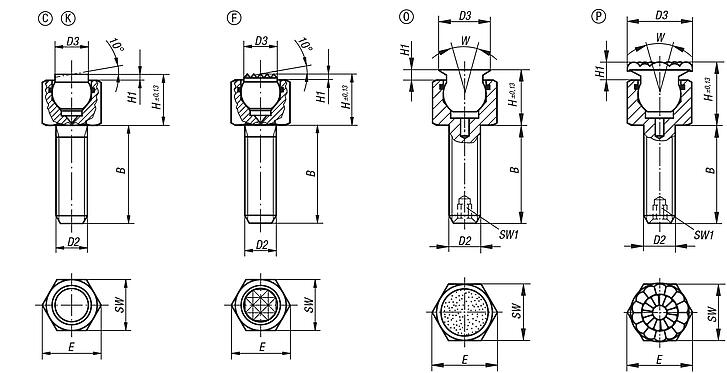

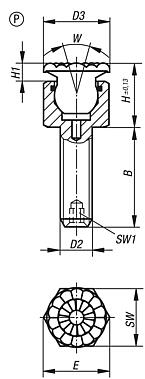

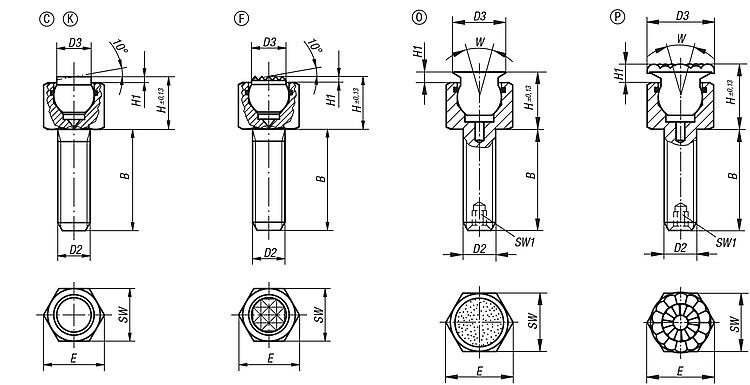

Drawings (total overview) |
Self-aligning pads, external thread, with O-ring, Form C, flattened steel ball smooth |
More information |
| Order No. | Form | B | D2 | D3 | H | H1 | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0288.106X012 | C | 12 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 |  | | 44.81 € | | | K0288.106X025 | C | 25 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | 41.61 € | | | K0288.106X040 | C | 40 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | 42.12 € | | | K0288.108X012 | C | 12 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | 49.70 € | | | K0288.108X025 | C | 25 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | 50.19 € | | | K0288.108X040 | C | 40 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | 50.89 € | |
|

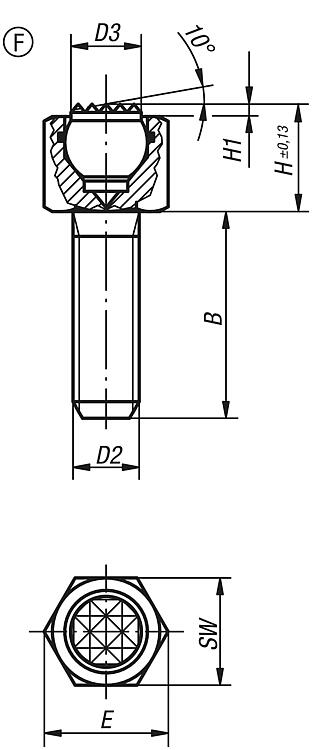

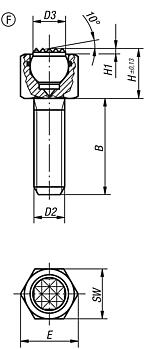

Self-aligning pads, external thread, with O-ring, Form F, flattened ball with diamond grip |
More information |
| Order No. | Form | B | D2 | D3 | H | H1 | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0288.306X012 | F | 12 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | 47.51 € | | | K0288.306X025 | F | 25 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | 48.19 € | | | K0288.306X040 | F | 40 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 9 | | | 48.69 € | | | K0288.308X012 | F | 12 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | 52.72 € | | | K0288.308X025 | F | 25 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | 53.38 € | | | K0288.308X040 | F | 40 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 15 | | | 54.24 € | |
|

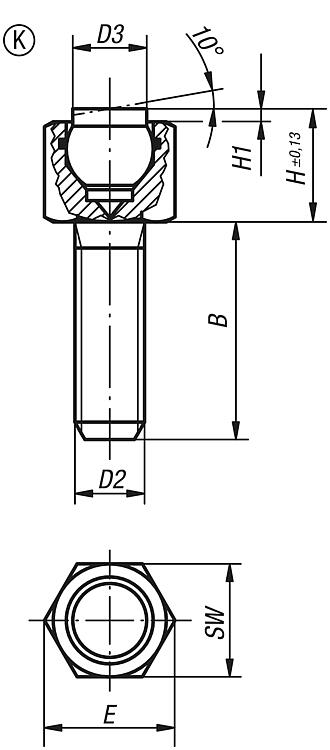

Self-aligning pads, external thread, with O-ring, Form K, flattened POM ball smooth |
More information |
| Order No. | Form | B | D2 | D3 | H | H1 | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0288.706X012 | K | 12 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 2 | | | 43.45 € | | | K0288.706X025 | K | 25 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 2 | | | 43.96 € | | | K0288.706X040 | K | 40 | M6 | 6 | 9,5 | 1,5 | 11,5 | 10 | 7 | 2 | | | 44.81 € | | | K0288.708X012 | K | 12 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 4 | | | 48.38 € | | | K0288.708X025 | K | 25 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 4 | | | 49.04 € | | | K0288.708X040 | K | 40 | M8 | 8,5 | 13 | 1,5 | 15 | 13 | 10 | 4 | | | 49.70 € | |
|

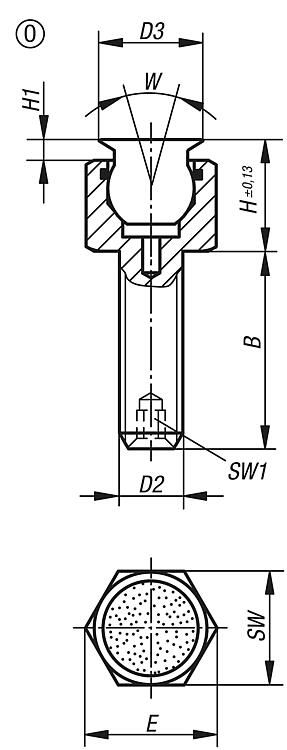

Self-aligning pads, external thread, with O-ring, Form O, stainless steel ball with diamond impregnated face |
More information |
| Order No. | Form | B | D2 | D3 | H | H1 | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K0288.506X012 | O | 12 | M6 | 8 | 10 | 2 | 11,5 | 10 | 7 | 9,2 | | | 47.15 € | | | K0288.506X025 | O | 25 | M6 | 8 | 10 | 2 | 11,5 | 10 | 7 | 9,2 | | | 47.91 € | | | K0288.506X040 | O | 40 | M6 | 8 | 10 | 2 | 11,5 | 10 | 7 | 9,2 | | | 48.32 € | | | K0288.508X012 | O | 12 | M8 | 11 | 14,5 | 3 | 15 | 13 | 10 | 15,5 | | | 52.78 € | | | K0288.508X025 | O | 25 | M8 | 11 | 14,5 | 3 | 15 | 13 | 10 | 15,5 | | | 53.34 € | | | K0288.508X040 | O | 40 | M8 | 11 | 14,5 | 3 | 15 | 13 | 10 | 15,5 | | | 54.11 € | | | K0288.510X015 | O | 15 | M10 | 14 | 16 | 3 | 19,6 | 17 | 13 | 18,8 | | | 61.27 € | | | K0288.510X030 | O | 30 | M10 | 14 | 16 | 3 | 19,6 | 17 | 13 | 18,8 | | | 62.19 € | | | K0288.510X050 | O | 50 | M10 | 14 | 16 | 3 | 19,6 | 17 | 13 | 18,8 | | | 63.05 € | | | K0288.512X020 | O | 20 | M12 | 19 | 19 | 4 | 21,9 | 19 | 15 | 29,8 | | | 67.75 € | | | K0288.512X040 | O | 40 | M12 | 19 | 19 | 4 | 21,9 | 19 | 15 | 29,8 | | | 68.66 € | | | K0288.512X060 | O | 60 | M12 | 19 | 19 | 4 | 21,9 | 19 | 15 | 29,8 | | | 69.11 € | | | K0288.516X025 | O | 25 | M16 | 21 | 23 | 4 | 27,7 | 24 | 20 | 50,3 | | | 73.99 € | | | K0288.516X050 | O | 50 | M16 | 21 | 23 | 4 | 27,7 | 24 | 20 | 50,3 | | | 74.83 € | | | K0288.516X080 | O | 80 | M16 | 21 | 23 | 4 | 27,7 | 24 | 20 | 50,3 | | | 76.23 € | |
|
Self-aligning pads, external thread, with O-ring, Form P, stainless steel ball with polyurethane face |
More information |
| Order No. | Form
| B | D2 | D3 | H | H1 | E | SW | SW1 | W | Ball-Ø | CAD | Acc. | Price | Order |
|---|
| K0288.606X012 | P | 12 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 | | | 46.08 € | | | K0288.606X025 | P | 25 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 | | | 46.79 € | | | K0288.606X040 | P | 40 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 | | | 47.17 € | | | K0288.608X012 | P | 12 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | 50.75 € | | | K0288.608X025 | P | 25 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | 51.36 € | | | K0288.608X040 | P | 40 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | 52.05 € | | | K0288.610X015 | P | 15 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | 59.06 € | | | K0288.610X030 | P | 30 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | 59.94 € | | | K0288.610X050 | P | 50 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | 60.87 € | | | K0288.612X020 | P | 20 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | 64.63 € | | | K0288.612X040 | P | 40 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | 65.57 € | | | K0288.612X060 | P | 60 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | 66.01 € | | | K0288.616X025 | P | 25 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | 73.88 € | | | K0288.616X050 | P | 50 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | 74.69 € | | | K0288.616X080 | P | 80 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | 76.08 € | |
|
