K0291Self-aligning pads adjustable, with O-ring, exchangeable... |
go back |
|
|
DescriptionMaterial:Body carbon steel.
Ball rust and acid resistant steel.
Inserts:
Form C, F, M tool steel
Form K POM
Form E stainless steel.
Form O stainless steel diamond impregnated.
Form P stainless steel with polyurethane surface.Version:Body tempered, black oxidised.
Ball hardened, bright.
Inserts:
Form C, F hardened, black oxidised.
Form M with carbide serrations, black oxidised.
Form K white.
Form E hardened, bright.
Form O diamond impregnated surface comparable to 100 grade abrasive grit.
Form P polyurethane surface, hardness 60 Shore.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
The ball can be removed from the housing by applying light pressure to the socket head screw.
Ball secured against rotation.Advantages:Highly cost-effective as inserts can be exchanged.
The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

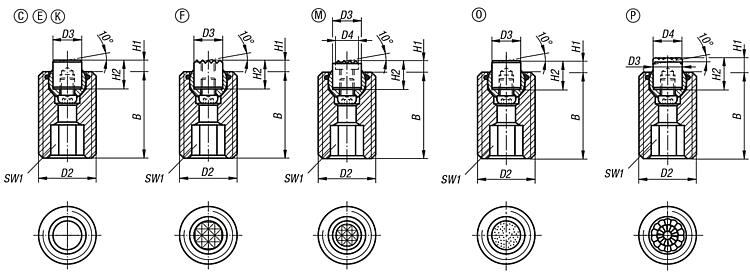

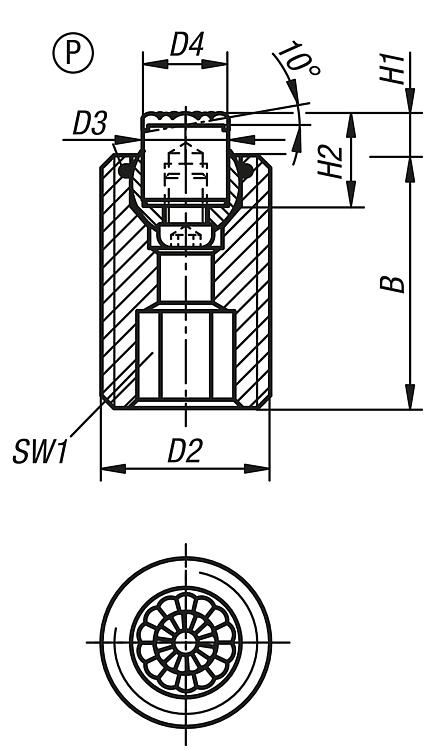

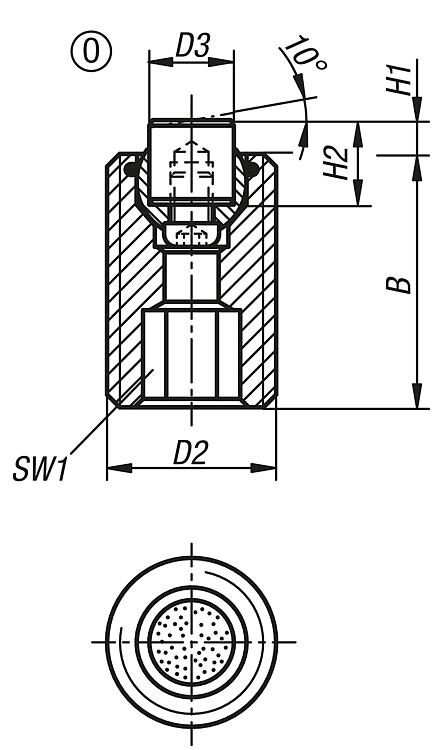

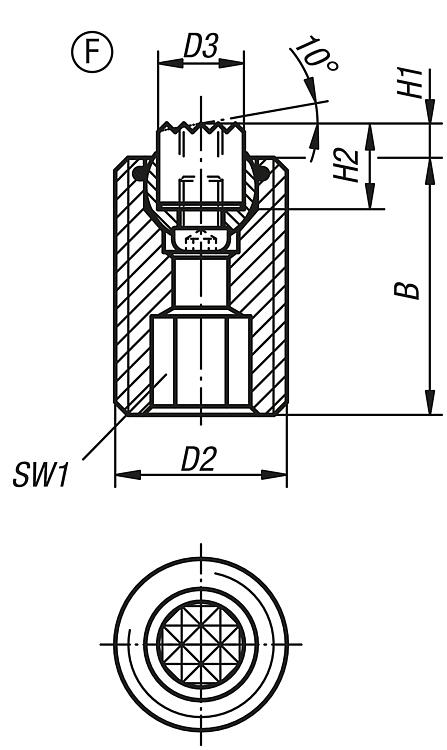

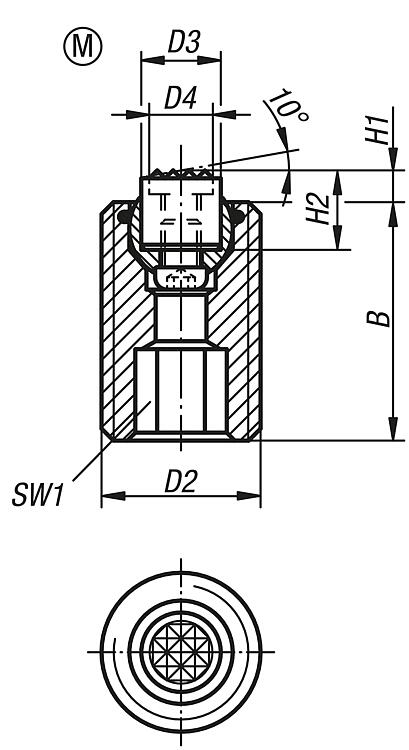

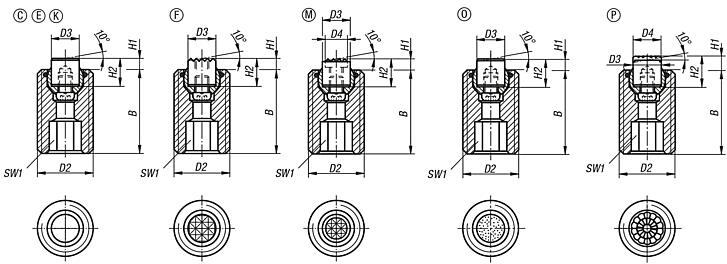

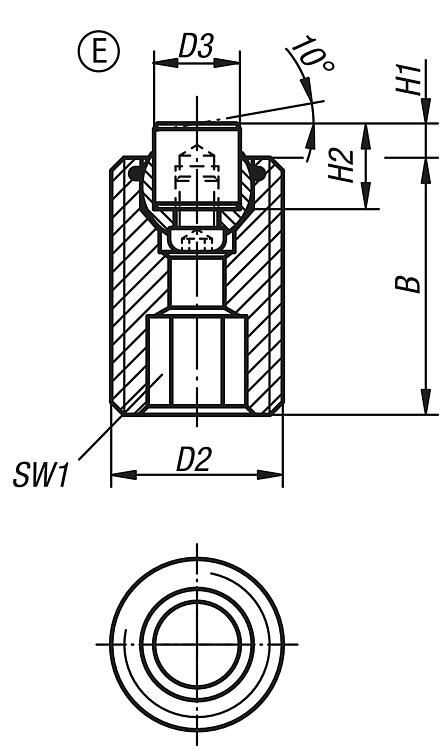

Drawings (total overview) |
|
|
|
|
Self-aligning pads, adjustable, with O-ring, exchangeable inserts, hexagon socket, Form F, flattened ball with carbide diamond grip |
More information |
| Order No. | Form | B | D2 | D3 | D4 | H1 | H2 | SW1 | Ball-Ø | Load rating
max. kN
(static load only) | Order No.
gripper | CAD | Acc. | Price | Order |
|---|
| K0291.920X030 | M | 30 | M20 | 10 | 7,9 | 4 | 10 | 10 | 13 | 37 | K0385.10107 |  |  | 80.86 € | | | K0291.920X050 | M | 50 | M20 | 10 | 7,9 | 4 | 10 | 10 | 13 | 37 | K0385.10107 | | | 81.93 € | | | K0291.920X070 | M | 70 | M20 | 10 | 7,9 | 4 | 10 | 10 | 13 | 37 | K0385.10107 | | | 84.88 € | | | K0291.924X040 | M | 40 | M24 | 12 | 9,5 | 4 | 10 | 10 | 15 | 55 | K0385.12107 | | | 97.28 € | | | K0291.924X080 | M | 80 | M24 | 12 | 9,5 | 4 | 10 | 10 | 15 | 55 | K0385.12107 | | | 102.78 € | |
|
|
|
