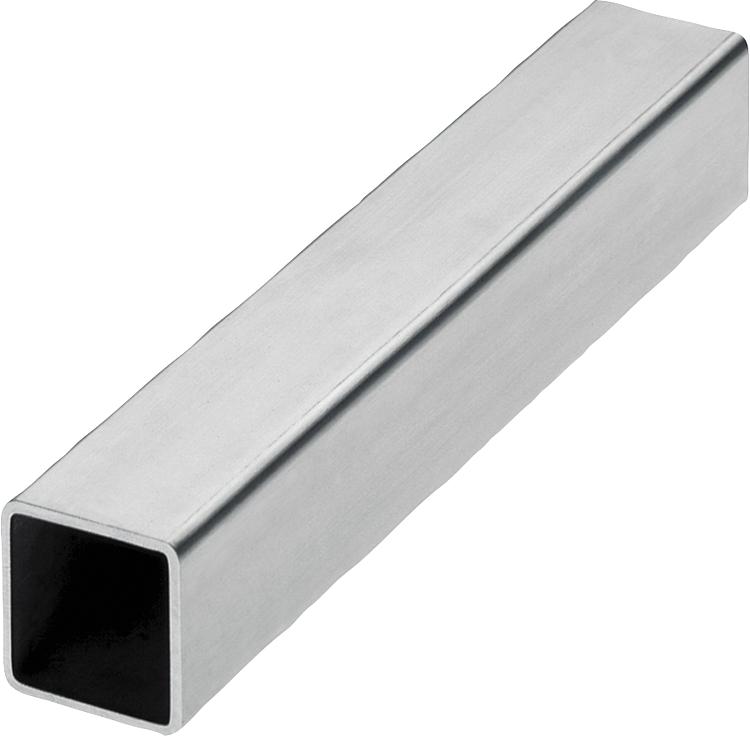

        square tubes

Item description/product images

DescriptionMaterial:Steel 1.0037.
Aluminium EN AW-6060.Version:Steel electro zinc-plated.
Aluminium clear anodised.Note:The production tolerances for square tubes are adapted to the tube clamping system.

* Solid materials.On request:- stainless steel tubes
- customer specific lengthsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0493_V Square tubes

131 kB

Technical information Thermoplastic tube clamping system

128 kB

Drawings

Item selection/filter

Order No.	Main material	Description	D1	D2	L	Price
K0493.4120X500	steel	20 x 20 x 1	20 ±0,3	18	500	7.28 €
K0493.4120X1000	steel	20 x 20 x 1	20 ±0,3	18	1000	14.59 €
K0493.4120X2000	steel	20 x 20 x 1	20 ±0,3	18	2000	29.11 €
K0493.4125X500	steel	25 x 25 x 1,5	25 ±0,3	22	500	7.28 €
K0493.4125X1000	steel	25 x 25 x 1,5	25 ±0,3	22	1000	14.60 €
K0493.4125X2000	steel	25 x 25 x 1,5	25 ±0,3	22	2000	32.58 €
K0493.4130X500	steel	30 x 30 x 2	30 ±0,3	26	500	9.09 €
K0493.4130X1000	steel	30 x 30 x 2	30 ±0,3	26	1000	18.26 €
K0493.4130X2000	steel	30 x 30 x 2	30 ±0,3	26	2000	36.45 €
K0493.4140X500	steel	40 x 40 x 3	40 ±0,4	34	500	13.13 €
K0493.4140X1000	steel	40 x 40 x 3	40 ±0,4	34	1000	26.04 €
K0493.4140X2000	steel	40 x 40 x 3	40 ±0,4	34	2000	52.06 €
K0493.4210X500	aluminium	10 x 10	10*	-	500	9.33 €
K0493.4210X1000	aluminium	10 x 10	10*	-	1000	18.66 €
K0493.4210X2000	aluminium	10 x 10	10*	-	2000	37.31 €
K0493.4220X500	aluminium	20 x 20 x 1,5	20 ±0,2	17	500	5.92 €
K0493.4220X1000	aluminium	20 x 20 x 1,5	20 ±0,2	17	1000	11.77 €
K0493.4220X2000	aluminium	20 x 20 x 1,5	20 ±0,2	17	2000	23.56 €
K0493.4230X500	aluminium	30 x 30 x 2	30 ±0,2	26	500	6.77 €
K0493.4230X1000	aluminium	30 x 30 x 2	30 ±0,2	26	1000	13.57 €
K0493.4230X2000	aluminium	30 x 30 x 2	30 ±0,2	26	2000	27.08 €
K0493.4240X500	aluminium	40 x 40 x 4	40 ±0,3	32	500	14.63 €
K0493.4240X1000	aluminium	40 x 40 x 4	40 ±0,3	32	1000	29.21 €
K0493.4240X2000	aluminium	40 x 40 x 4	40 ±0,3	32	2000	58.47 €
