K0483Tube clamps, straight, aluminium |
go back |
|
|
DescriptionMaterial:Cast aluminium.
DIN 7984 screws and DIN 985 nuts, steel.Version:Vibratory ground.
Screws and nuts electro zinc-plated.On request:Clamping levers for tightening.Accessory:- Round and square tubes K0493Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

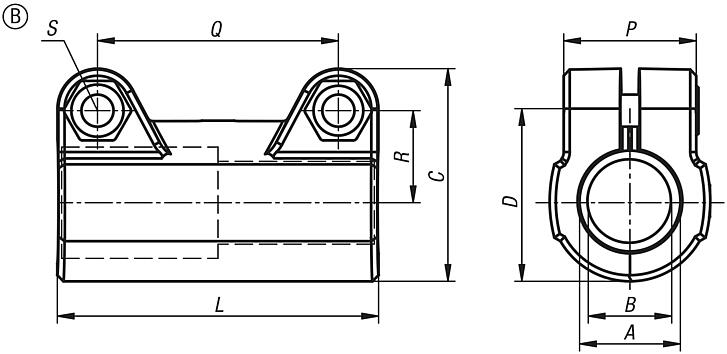

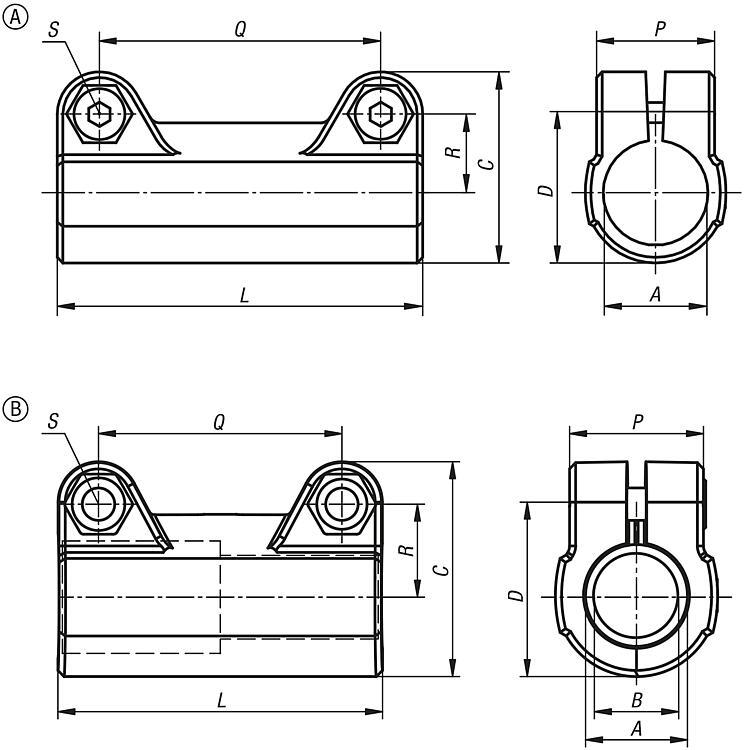

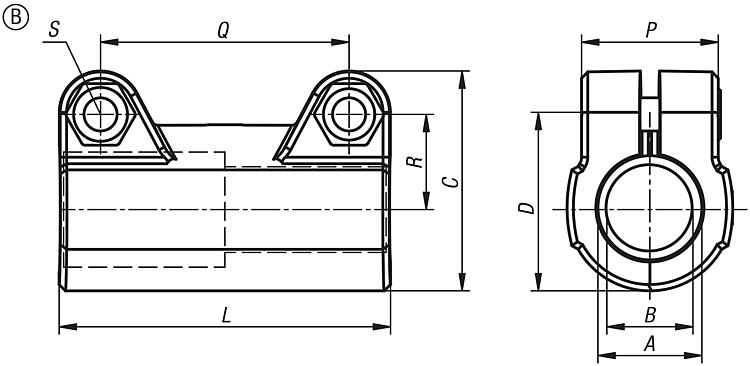

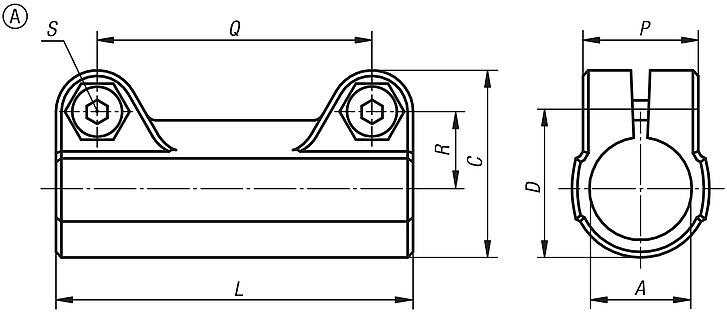

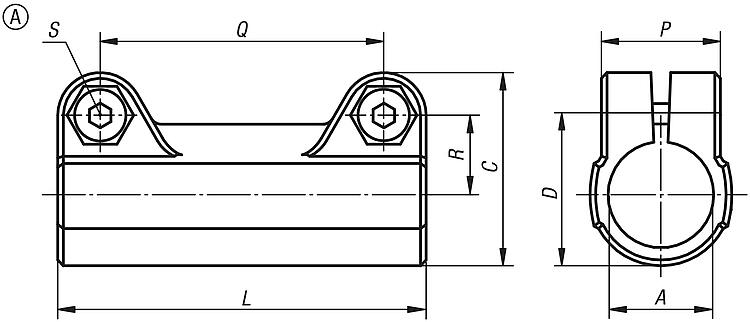

Drawings (total overview) |
