Round and square tubes

go back

Products
- Operating parts | standard elements
  - Tube connectors, profile connectors
    - tube clamps
      - Round and square tubes

Item description/product images

Show/filter all items

DescriptionMaterial:Steel 1.0037.
Aluminium EN AW-6060.Version:Steel electro zinc-plated.
Aluminium anodised.Note:The machined tolerances of these round and square tubes are individually matched to the tube clamping system.

*Square aluminium size 10x10 are only available as solid bars.On request:- Custom cut length (L max. 5000 mm)
- Stainless steel tube (L max. 3000 mm)
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0493 Round and square tubes

183 kB

Technical information Thermoplastic tube clamping system

128 kB

Drawings (total overview)

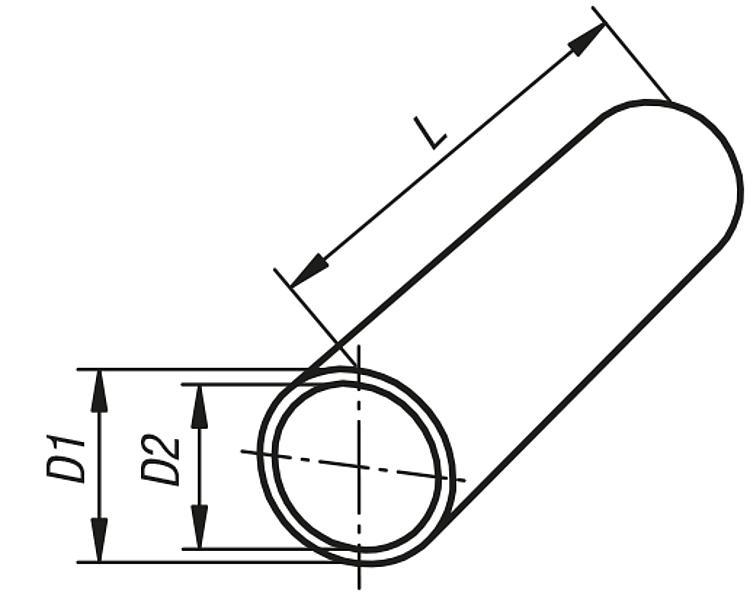

round tubes

More information

Drawings

Item selection/filter

Order No.	Main material	Description	D1	D2	L	Price
K0493.0112X500	steel	Ø12 x 1,5	12 ±0,1	9	500	6.35 €
K0493.0112X1000	steel	Ø12 x 1,5	12 ±0,1	9	1000	12.62 €
K0493.0112X2000	steel	Ø12 x 1,5	12 ±0,1	9	2000	25.23 €
K0493.0114X500	steel	Ø14 x 1,5	14 ±0,1	11	500	8.47 €
K0493.0114X1000	steel	Ø14 x 1,5	14 ±0,1	11	1000	16.96 €
K0493.0114X2000	steel	Ø14 x 1,5	14 ±0,1	11	2000	33.97 €
K0493.0115X500	steel	Ø15 x 1,5	15 ±0,1	12	500	8.76 €
K0493.0115X1000	steel	Ø15 x 1,5	15 ±0,1	12	1000	17.50 €
K0493.0115X2000	steel	Ø15 x 1,5	15 ±0,1	12	2000	34.96 €
K0493.0116X500	steel	Ø16 x 1,5	16 ±0,1	13	500	8.06 €
K0493.0116X1000	steel	Ø16 x 1,5	16 ±0,1	13	1000	16.16 €
K0493.0116X2000	steel	Ø16 x 1,5	16 ±0,1	13	2000	32.24 €
K0493.0118X500	steel	Ø18 x 1,5	18 ±0,1	15	500	8.95 €
K0493.0118X1000	steel	Ø18 x 1,5	18 ±0,1	15	1000	17.88 €
K0493.0118X2000	steel	Ø18 x 1,5	18 ±0,1	15	2000	35.73 €
K0493.0120X500	steel	Ø20 x 2	20 ±0,1	16	500	10.01 €
K0493.0120X1000	steel	Ø20 x 2	20 ±0,1	16	1000	19.98 €
K0493.0120X2000	steel	Ø20 x 2	20 ±0,1	16	2000	39.94 €
K0493.0125X500	steel	Ø25 x 2	25 ±0,1	21	500	12.27 €
K0493.0125X1000	steel	Ø25 x 2	25 ±0,1	21	1000	24.52 €
K0493.0125X2000	steel	Ø25 x 2	25 ±0,1	21	2000	49.06 €
K0493.0130X500	steel	Ø30 x 2	30 ±0,1	26	500	11.78 €
K0493.0130X1000	steel	Ø30 x 2	30 ±0,1	26	1000	23.47 €
K0493.0130X2000	steel	Ø30 x 2	30 ±0,1	26	2000	46.95 €
K0493.0140X500	steel	Ø40 x 4	40 ±0,15	32	500	20.10 €
K0493.0140X1000	steel	Ø40 x 4	40 ±0,15	32	1000	40.21 €
K0493.0140X2000	steel	Ø40 x 4	40 ±0,15	32	2000	80.11 €
K0493.0150X500	steel	Ø50 x 4	50 ±0,2	42	500	27.34 €
K0493.0150X1000	steel	Ø50 x 4	50 ±0,2	42	1000	54.33 €
K0493.0150X2000	steel	Ø50 x 4	50 ±0,2	42	2000	108.75 €
K0493.0220X500	aluminium	Ø20 x 3	20 ±0,1	14	500	9.90 €
K0493.0220X1000	aluminium	Ø20 x 3	20 ±0,1	14	1000	19.73 €
K0493.0220X2000	aluminium	Ø20 x 3	20 ±0,1	14	2000	39.44 €
K0493.0230X500	aluminium	Ø30 x 2	30 ±0,1	26	500	7.65 €
K0493.0230X1000	aluminium	Ø30 x 2	30 ±0,1	26	1000	15.35 €
K0493.0230X2000	aluminium	Ø30 x 2	30 ±0,1	26	2000	30.64 €
K0493.0240X500	aluminium	Ø40 x 3	40 ±0,15	34	500	12.98 €
K0493.0240X1000	aluminium	Ø40 x 3	40 ±0,15	34	1000	25.98 €
K0493.0240X2000	aluminium	Ø40 x 3	40 ±0,15	34	2000	51.93 €
K0493.0250X500	aluminium	Ø50 x 3	50 ±0,2	44	500	16.03 €
K0493.0250X1000	aluminium	Ø50 x 3	50 ±0,2	44	1000	32.02 €
K0493.0250X2000	aluminium	Ø50 x 3	50 ±0,2	44	2000	64.09 €

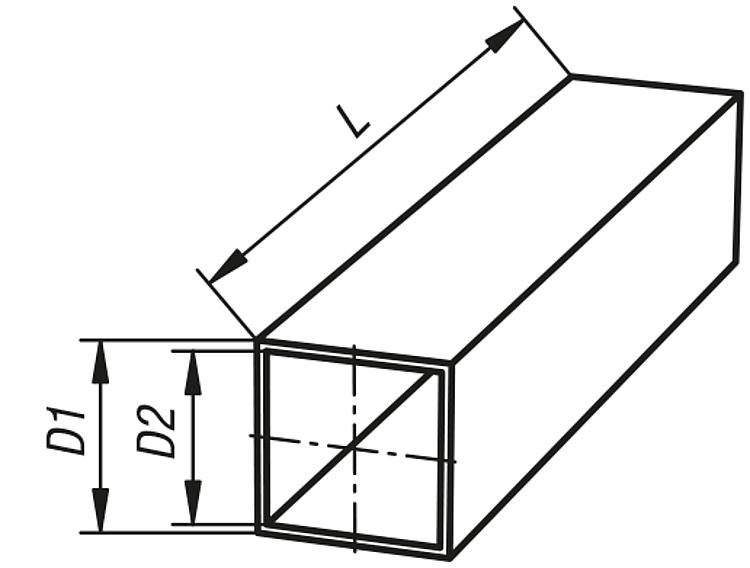

square tubes

More information

Drawings

Item selection/filter

Order No.	Main material	Description	D1	D2	L	Price
K0493.4120X500	steel	20 x 20 x 1	20 ±0,3	18	500	7.28 €
K0493.4120X1000	steel	20 x 20 x 1	20 ±0,3	18	1000	14.59 €
K0493.4120X2000	steel	20 x 20 x 1	20 ±0,3	18	2000	29.11 €
K0493.4125X500	steel	25 x 25 x 1,5	25 ±0,3	22	500	7.28 €
K0493.4125X1000	steel	25 x 25 x 1,5	25 ±0,3	22	1000	14.60 €
K0493.4125X2000	steel	25 x 25 x 1,5	25 ±0,3	22	2000	32.58 €
K0493.4130X500	steel	30 x 30 x 2	30 ±0,3	26	500	9.09 €
K0493.4130X1000	steel	30 x 30 x 2	30 ±0,3	26	1000	18.26 €
K0493.4130X2000	steel	30 x 30 x 2	30 ±0,3	26	2000	36.45 €
K0493.4140X500	steel	40 x 40 x 3	40 ±0,4	34	500	13.13 €
K0493.4140X1000	steel	40 x 40 x 3	40 ±0,4	34	1000	26.04 €
K0493.4140X2000	steel	40 x 40 x 3	40 ±0,4	34	2000	52.06 €
K0493.4210X500	aluminium	10 x 10	10*	-	500	9.33 €
K0493.4210X1000	aluminium	10 x 10	10*	-	1000	18.66 €
K0493.4210X2000	aluminium	10 x 10	10*	-	2000	37.31 €
K0493.4220X500	aluminium	20 x 20 x 1,5	20 ±0,2	17	500	5.92 €
K0493.4220X1000	aluminium	20 x 20 x 1,5	20 ±0,2	17	1000	11.77 €
K0493.4220X2000	aluminium	20 x 20 x 1,5	20 ±0,2	17	2000	23.56 €
K0493.4230X500	aluminium	30 x 30 x 2	30 ±0,2	26	500	6.77 €
K0493.4230X1000	aluminium	30 x 30 x 2	30 ±0,2	26	1000	13.57 €
K0493.4230X2000	aluminium	30 x 30 x 2	30 ±0,2	26	2000	27.08 €
K0493.4240X500	aluminium	40 x 40 x 4	40 ±0,3	32	500	14.63 €
K0493.4240X1000	aluminium	40 x 40 x 4	40 ±0,3	32	1000	29.21 €
K0493.4240X2000	aluminium	40 x 40 x 4	40 ±0,3	32	2000	58.47 €
