Linear actuators, aluminium, square

go back

Products
- Operating parts | standard elements
  - Tube connectors, profile connectors
    - tube clamps
      - Linear actuators, aluminium, square

Item description/product images

DescriptionMaterial:Profile tube aluminium.
End caps aluminium
Spindle steel.Version:Profile tube natural tone anodised.End caps black anodised.Note:These linear actuators are used for linear movements and positioning. The slides are moved via a threaded spindle. This movement can be carried out either manually using a handwheel or via an electric drive. The slides are guided play-free on profile rails.Temperature range:0 °C to +60 °C

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K2355 Linear actuators, aluminium, square

186 kB

TH-fuer-Lineareinheit-quadratisch-29104-K2355_EN

78,9 kB

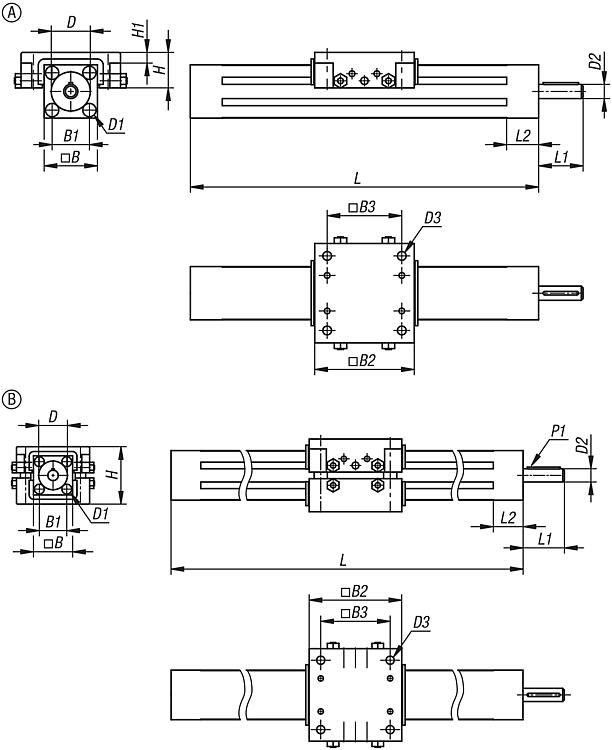

Drawings (total overview)

Linear actuators, aluminium, square, Form A

More information

Drawings

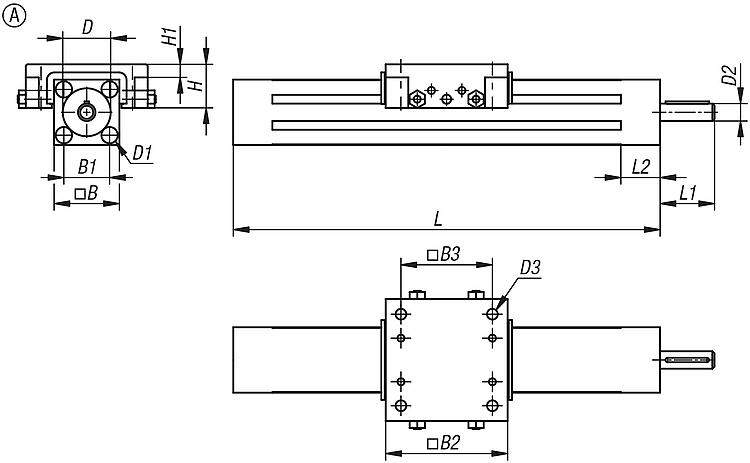

Linear actuators, aluminium, square, Form A

Item selection/filter

Order No.	Form	Form definition	B	B1	B2	B3	D	D1	D2	D3	H	H1	Travel S	L	L1	L2	Spindle	Typ EV	Price
K2355.030X300	A	Mounting bracket one-side	30	21	56	42	22	M04x25	8	M6	20	7	204	300	25	18	Tr 14x3	30	386.55 €
K2355.030X500	A	Mounting bracket one-side	30	21	56	42	22	M04x25	8	M6	20	7	404	500	25	18	Tr 14x3	30	419.82 €
K2355.030X800	A	Mounting bracket one-side	30	21	56	42	22	M04x25	8	M6	20	7	704	800	25	18	Tr 14x3	30	469.71 €
K2355.040X1000	A	Mounting bracket one-side	40	29	68	54	28	M05x30	10	M6	26	8	885	1000	28	22	Tr18x4	40	570.48 €
K2355.040X300	A	Mounting bracket one-side	40	29	68	54	28	M05x30	10	M6	26	8	185	300	28	22	Tr18x4	40	417.66 €
K2355.040X500	A	Mounting bracket one-side	40	29	68	54	28	M05x30	10	M6	26	8	385	500	28	22	Tr18x4	40	461.32 €
K2355.040X800	A	Mounting bracket one-side	40	29	68	54	28	M05x30	10	M6	26	8	685	800	28	22	Tr18x4	40	526.82 €
K2355.050X1000	A	Mounting bracket one-side	50	38	85	67	35	M06x30	12	M8	33	10	860	1000	30	25	Tr 20x4	50	712.95 €
K2355.050X500	A	Mounting bracket one-side	50	38	85	67	35	M06x30	12	M8	33	10	360	500	30	25	Tr 20x4	50	582.32 €
K2355.050X800	A	Mounting bracket one-side	50	38	85	67	35	M06x30	12	M8	33	10	660	800	30	25	Tr 20x4	50	660.70 €

Linear actuators aluminium, square, Form B

More information

Drawings

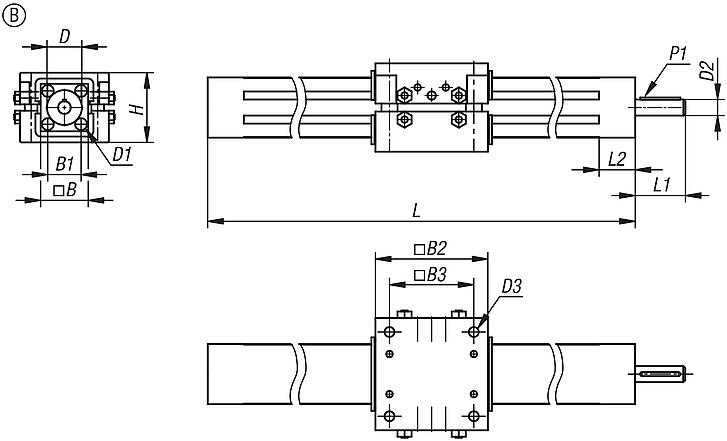

Linear actuators aluminium, square, Form B

Item selection/filter

Order No.	Form	Form definition	B	B1	B2	B3	D	D1	D2	D3	H	H1	Travel S	L	L1	L2	Spindle	Typ EV	Price
K2355.130X300	B	Mounting bracket both sides	30	21	56	42	22	M04x25	8	M6	44	7	204	300	25	18	Tr 14x3	30	437.56 €
K2355.130X500	B	Mounting bracket both sides	30	21	56	42	22	M04x25	8	M6	44	7	404	500	25	18	Tr 14x3	30	470.82 €
K2355.130X800	B	Mounting bracket both sides	30	21	56	42	22	M04x25	8	M6	44	7	704	800	25	18	Tr 14x3	30	520.72 €
K2355.140X1000	B	Mounting bracket both sides	40	29	68	54	28	M05x30	10	M6	56	8	885	1000	28	22	Tr18x4	40	611.92 €
K2355.140X300	B	Mounting bracket both sides	40	29	68	54	28	M05x30	10	M6	56	8	185	300	28	22	Tr18x4	40	459.11 €
K2355.140X500	B	Mounting bracket both sides	40	29	68	54	28	M05x30	10	M6	56	8	385	500	28	22	Tr18x4	40	502.77 €
K2355.140X800	B	Mounting bracket both sides	40	29	68	54	28	M05x30	10	M6	56	8	685	800	28	22	Tr18x4	40	568.26 €
K2355.150X1000	B	Mounting bracket both sides	50	38	85	67	35	M06x30	12	M8	70	10	860	1000	30	25	Tr 20x4	50	779.48 €
K2355.150X500	B	Mounting bracket both sides	50	38	85	67	35	M06x30	12	M8	70	10	360	500	30	25	Tr 20x4	50	648.85 €
K2355.150X800	B	Mounting bracket both sides	50	38	85	67	35	M06x30	12	M8	70	10	660	800	30	25	Tr 20x4	50	727.23 €
