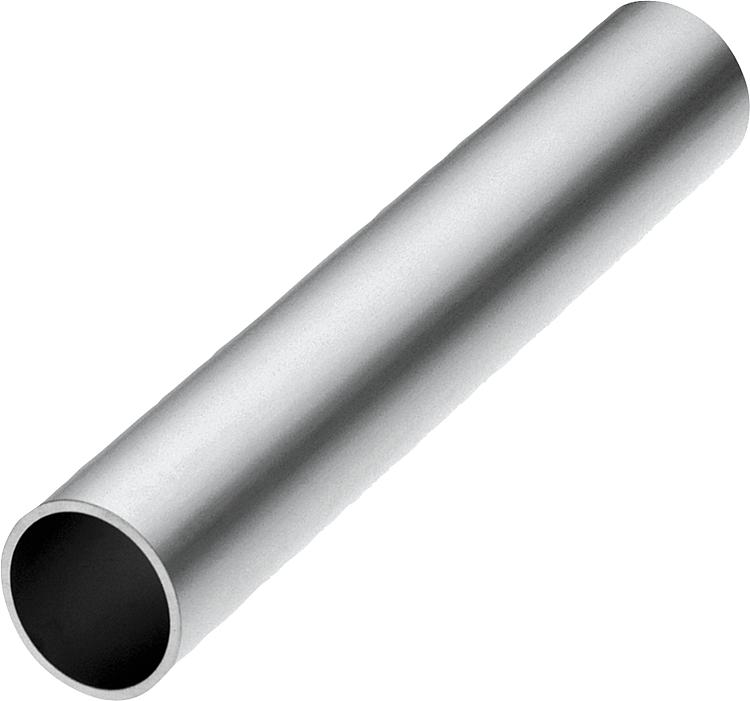

        round tubes

Item description/product images

DescriptionMaterial:Steel 1.0037.
Aluminium EN AW-6060.Version:Steel electro zinc-plated.
Aluminium clear anodised.Note:The production tolerances for round tubes are adapted to the tube clamping system.On request:- stainless steel tubes
- customer specific lengthsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0493_R Round tubes

133 kB

Technical information Thermoplastic tube clamping system

128 kB

Drawings

Item selection/filter

Order No.	Main material	Description	D1	D2	L	Price
K0493.0112X500	steel	Ø12 x 1,5	12 ±0,1	9	500	6.35 €
K0493.0112X1000	steel	Ø12 x 1,5	12 ±0,1	9	1000	12.62 €
K0493.0112X2000	steel	Ø12 x 1,5	12 ±0,1	9	2000	25.23 €
K0493.0114X500	steel	Ø14 x 1,5	14 ±0,1	11	500	8.47 €
K0493.0114X1000	steel	Ø14 x 1,5	14 ±0,1	11	1000	16.96 €
K0493.0114X2000	steel	Ø14 x 1,5	14 ±0,1	11	2000	33.97 €
K0493.0115X500	steel	Ø15 x 1,5	15 ±0,1	12	500	8.76 €
K0493.0115X1000	steel	Ø15 x 1,5	15 ±0,1	12	1000	17.50 €
K0493.0115X2000	steel	Ø15 x 1,5	15 ±0,1	12	2000	34.96 €
K0493.0116X500	steel	Ø16 x 1,5	16 ±0,1	13	500	8.06 €
K0493.0116X1000	steel	Ø16 x 1,5	16 ±0,1	13	1000	16.16 €
K0493.0116X2000	steel	Ø16 x 1,5	16 ±0,1	13	2000	32.24 €
K0493.0118X500	steel	Ø18 x 1,5	18 ±0,1	15	500	8.95 €
K0493.0118X1000	steel	Ø18 x 1,5	18 ±0,1	15	1000	17.88 €
K0493.0118X2000	steel	Ø18 x 1,5	18 ±0,1	15	2000	35.73 €
K0493.0120X500	steel	Ø20 x 2	20 ±0,1	16	500	10.01 €
K0493.0120X1000	steel	Ø20 x 2	20 ±0,1	16	1000	19.98 €
K0493.0120X2000	steel	Ø20 x 2	20 ±0,1	16	2000	39.94 €
K0493.0125X500	steel	Ø25 x 2	25 ±0,1	21	500	12.27 €
K0493.0125X1000	steel	Ø25 x 2	25 ±0,1	21	1000	24.52 €
K0493.0125X2000	steel	Ø25 x 2	25 ±0,1	21	2000	49.06 €
K0493.0130X500	steel	Ø30 x 2	30 ±0,1	26	500	11.78 €
K0493.0130X1000	steel	Ø30 x 2	30 ±0,1	26	1000	23.47 €
K0493.0130X2000	steel	Ø30 x 2	30 ±0,1	26	2000	46.95 €
K0493.0140X500	steel	Ø40 x 4	40 ±0,15	32	500	20.10 €
K0493.0140X1000	steel	Ø40 x 4	40 ±0,15	32	1000	40.21 €
K0493.0140X2000	steel	Ø40 x 4	40 ±0,15	32	2000	80.11 €
K0493.0150X500	steel	Ø50 x 4	50 ±0,2	42	500	27.34 €
K0493.0150X1000	steel	Ø50 x 4	50 ±0,2	42	1000	54.33 €
K0493.0150X2000	steel	Ø50 x 4	50 ±0,2	42	2000	108.75 €
K0493.0220X500	aluminium	Ø20 x 3	20 ±0,1	14	500	9.90 €
K0493.0220X1000	aluminium	Ø20 x 3	20 ±0,1	14	1000	19.73 €
K0493.0220X2000	aluminium	Ø20 x 3	20 ±0,1	14	2000	39.44 €
K0493.0230X500	aluminium	Ø30 x 2	30 ±0,1	26	500	7.65 €
K0493.0230X1000	aluminium	Ø30 x 2	30 ±0,1	26	1000	15.35 €
K0493.0230X2000	aluminium	Ø30 x 2	30 ±0,1	26	2000	30.64 €
K0493.0240X500	aluminium	Ø40 x 3	40 ±0,15	34	500	12.98 €
K0493.0240X1000	aluminium	Ø40 x 3	40 ±0,15	34	1000	25.98 €
K0493.0240X2000	aluminium	Ø40 x 3	40 ±0,15	34	2000	51.93 €
K0493.0250X500	aluminium	Ø50 x 3	50 ±0,2	44	500	16.03 €
K0493.0250X1000	aluminium	Ø50 x 3	50 ±0,2	44	1000	32.02 €
K0493.0250X2000	aluminium	Ø50 x 3	50 ±0,2	44	2000	64.09 €
