K0293_BCylindrical locating pins, Form B |
go back |
|
Item description/product images |
|
|

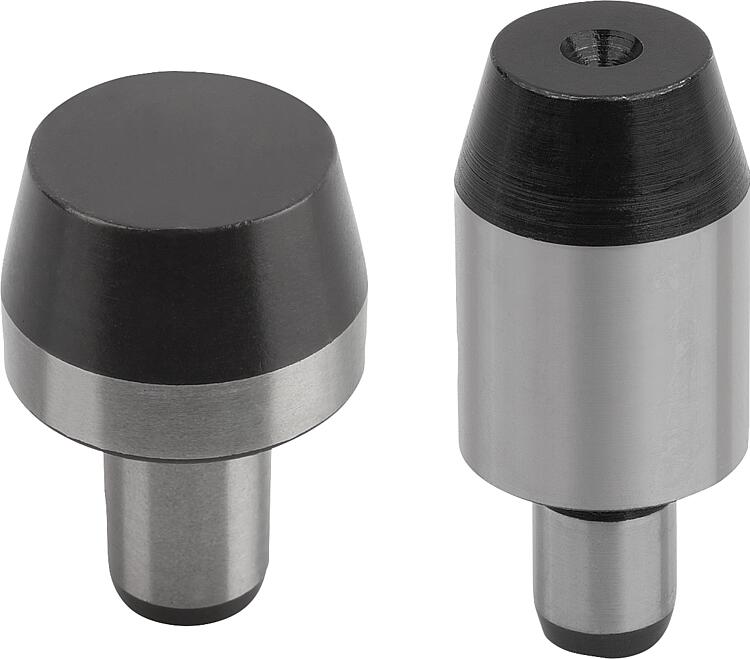

DescriptionMaterial:Tool steel.Version:Hardened and ground.Note:Locating pins Form B serve to position workpieces and fixture parts in reamed holes.
Locating pins Form B can also be used as hardened stops and as fixture feet.
For similar pins see K0352, K0353, K0354 and K0355. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 1 | D1 | D2 | H | H1 | H2 | H3 | T | CAD | Acc. | Price | Order |
|---|
| K0293.206 | B | short | 6 | 4 | 7 | 6 | 1,2 | 4 | 0,02 |  | | 6.79 € | | | K0293.208 | B | short | 8 | 6 | 10 | 9 | 1,6 | 6 | 0,02 | | | 7.05 € | | | K0293.210 | B | short | 10 | 6 | 10 | 9 | 1,6 | 6 | 0,02 | | | 7.29 € | | | K0293.212 | B | short | 12 | 6 | 10 | 9 | 1,6 | 6 | 0,02 | | | 7.82 € | | | K0293.216 | B | short | 16 | 8 | 13 | 12 | 2 | 8 | 0,04 | | | 9.31 € | | | K0293.220 | B | short | 20 | 12 | 15 | 18 | 2 | 9 | 0,04 | | | 11.83 € | | | K0293.225 | B | short | 25 | 12 | 15 | 18 | 2,5 | 9 | 0,04 | | | 12.78 € | | | K0293.306 | B | long | 6 | 4 | 12 | 6 | 1,2 | 4 | 0,02 | | | 6.89 € | | | K0293.308 | B | long | 8 | 6 | 16 | 9 | 1,6 | 6 | 0,02 | | | 7.18 € | | | K0293.310 | B | long | 10 | 6 | 18 | 9 | 1,6 | 6 | 0,02 | | | 7.48 € | | | K0293.312 | B | long | 12 | 6 | 18 | 9 | 1,6 | 6 | 0,02 | | | 8.09 € | | | K0293.316 | B | long | 16 | 8 | 22 | 12 | 2 | 8 | 0,04 | | | 9.37 € | | | K0293.320 | B | long | 20 | 12 | 25 | 18 | 2 | 9 | 0,04 | | | 12.39 € | | | K0293.325 | B | long | 25 | 12 | 25 | 18 | 2,5 | 9 | 0,04 | | | 14.18 € | |
