K0301Fixture feet with internal thread |
go back |
|
|
DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.

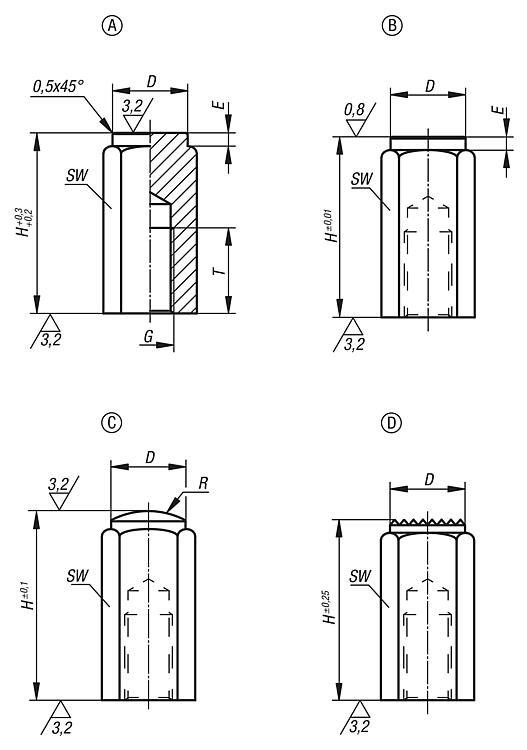

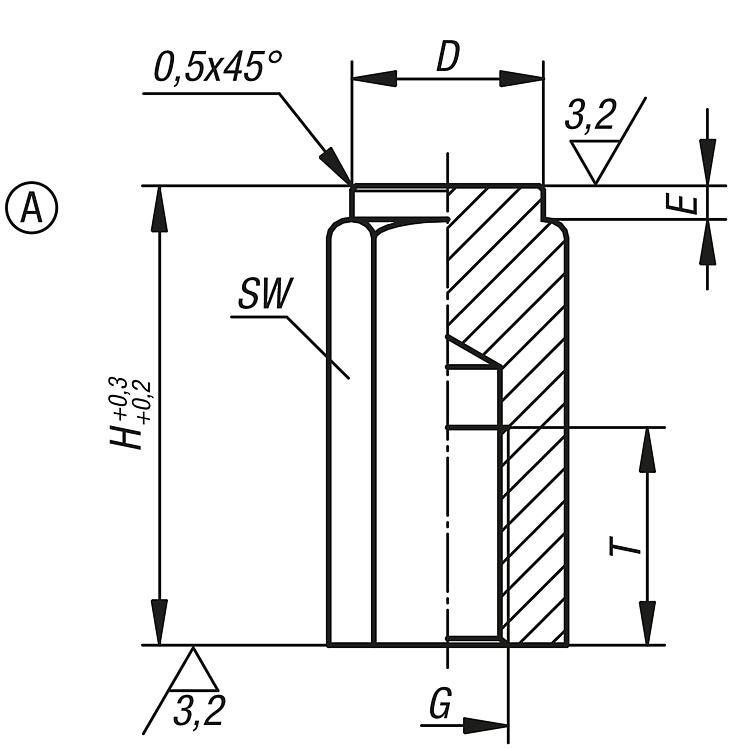

Contact faces case-hardened.Note:Fixture feet with internal thread are used as supports for fixtures or rough or machined workpieces. They can also be used as stops or thust pads in fixtures and toolmaking.Drawing reference:Form A: hardened face

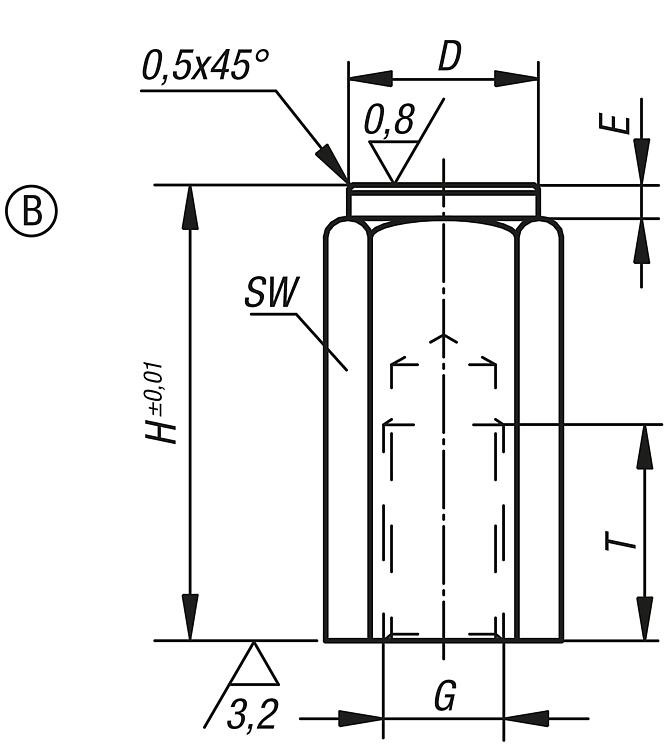

Form B: face hardened and ground

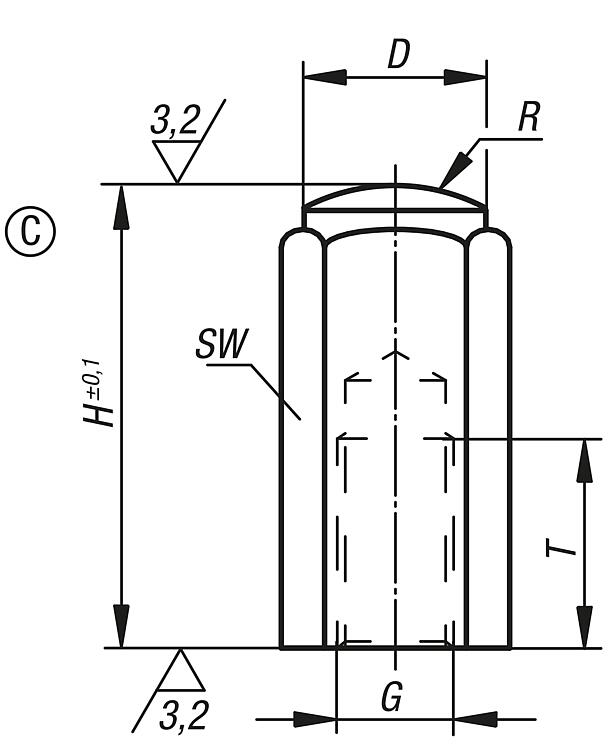

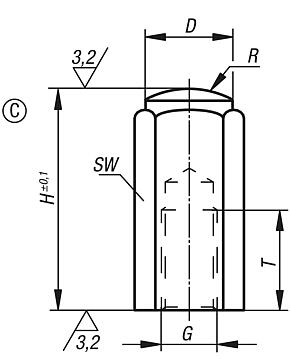

Form C: hardened spherical surface

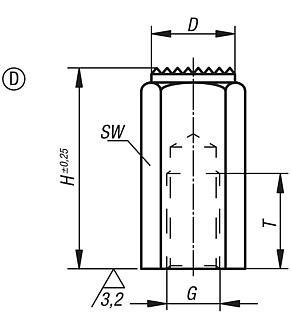

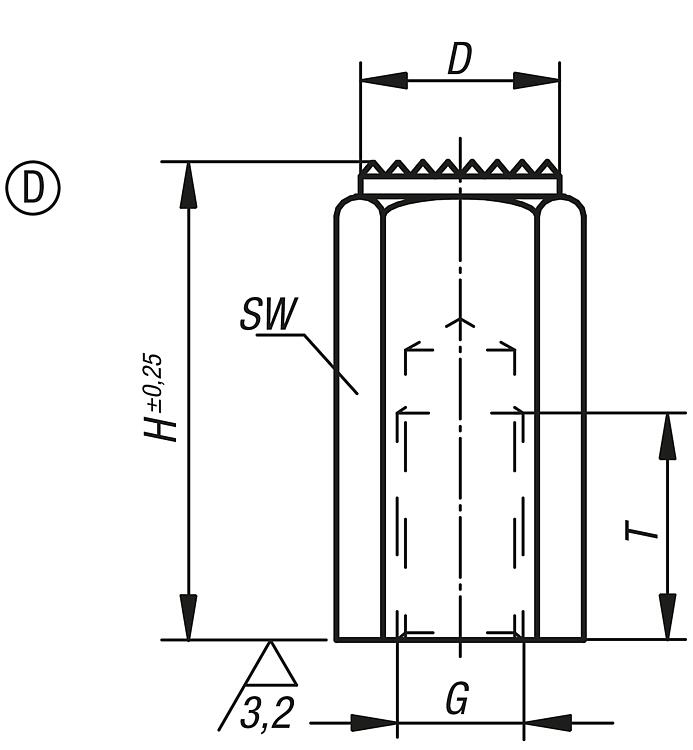

Form D: tempered serrated surface DownloadHere is all the information as a PDF datasheet:
