DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised. Contact faces case-hardened.Note:These positioning feet are used as supports for rough and machined parts. They can also be used as stops and thrust pads in fixtures and toolmaking.Drawing reference:

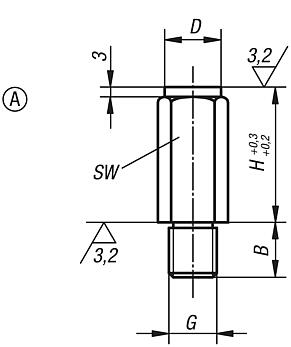

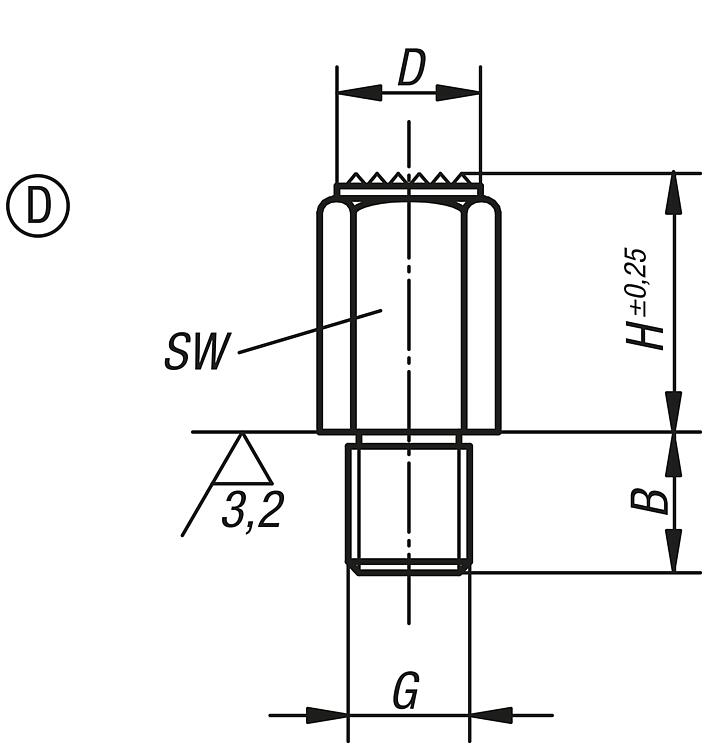

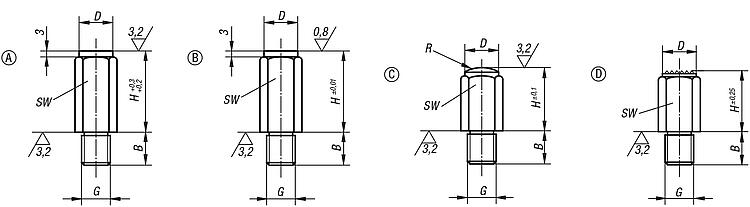

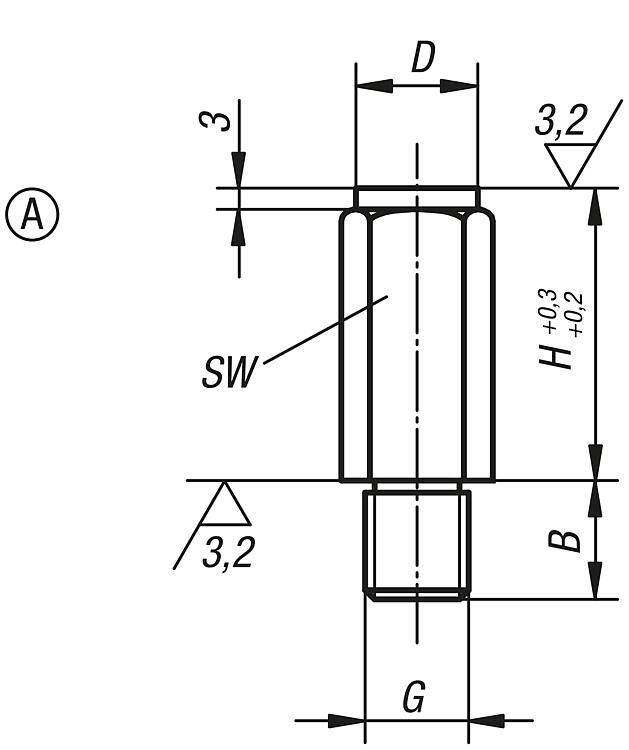

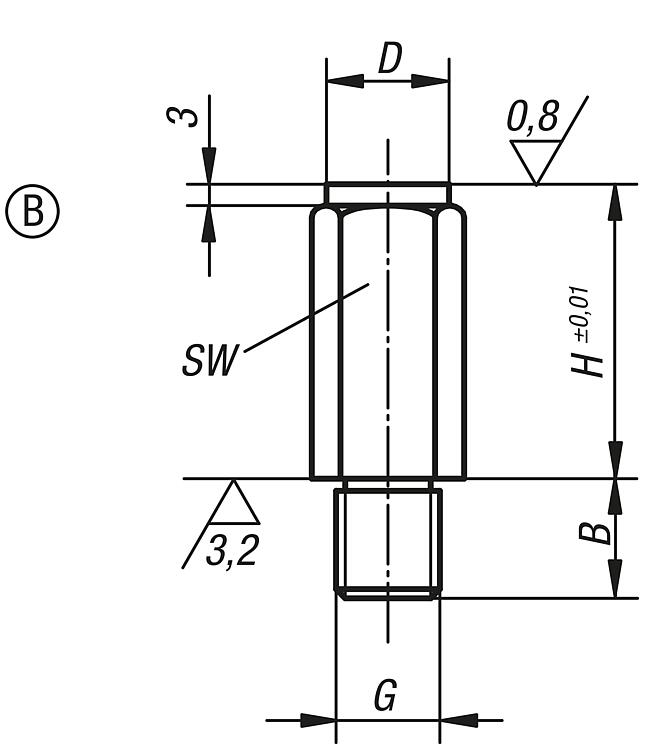

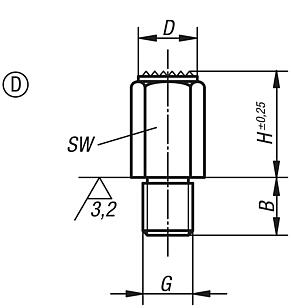

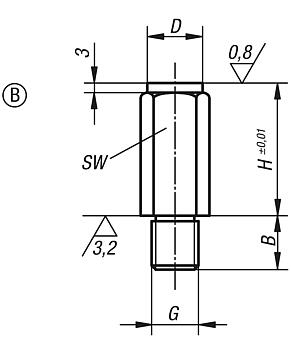

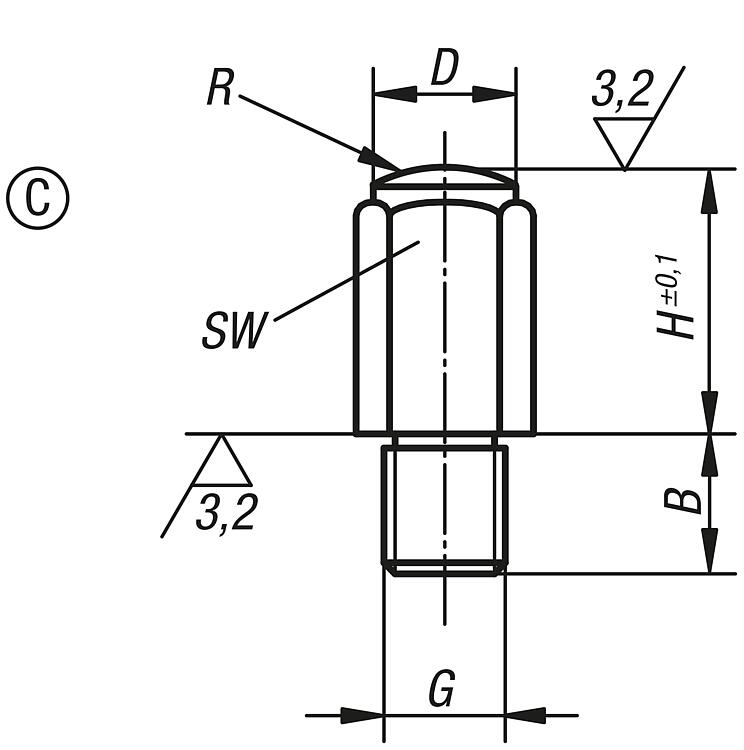

Form A: Flat face hardened Form B: Flat face hardened and ground Form C: Spherical face hardened Form D: Serrated face tempered
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
