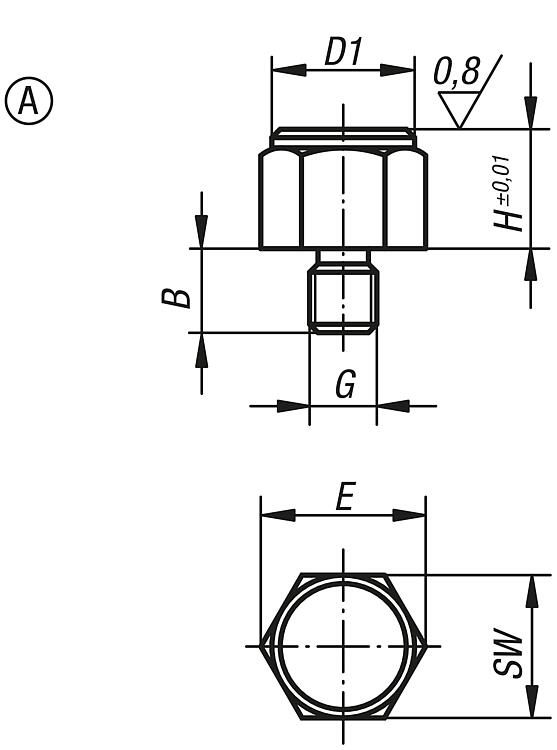

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:Positioning feet are used as supports, stops and thrust pads for fixtures and general machine and appliance construction.Drawing reference:Form A: External thread and flat face

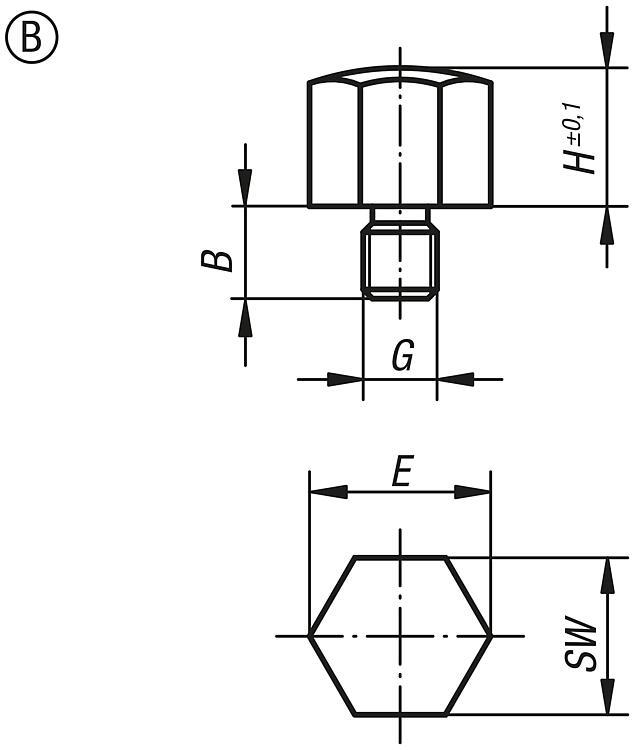

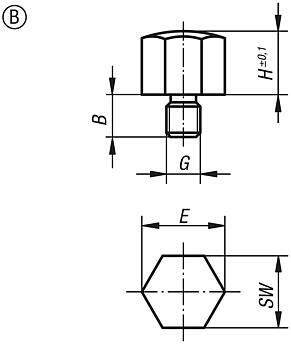

Form B: External thread and convex face
Form C: External thread and serrated face

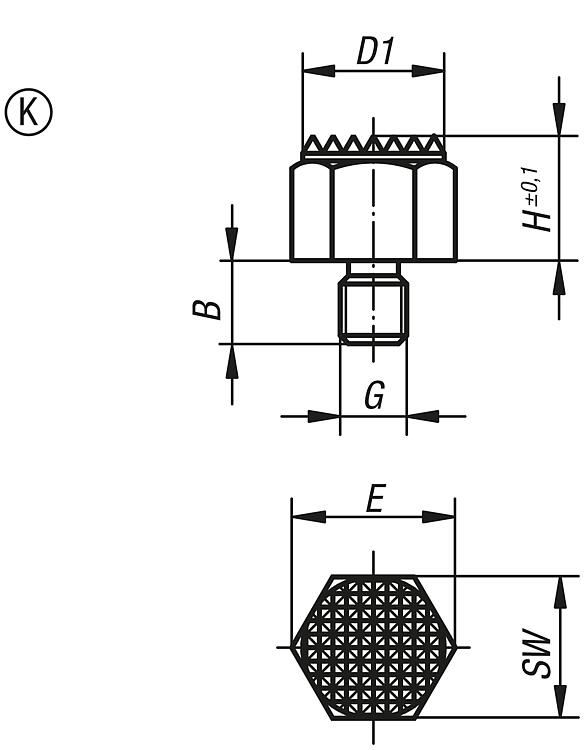

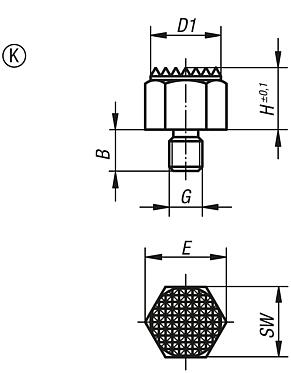

Form K: External thread and carbide serrated face

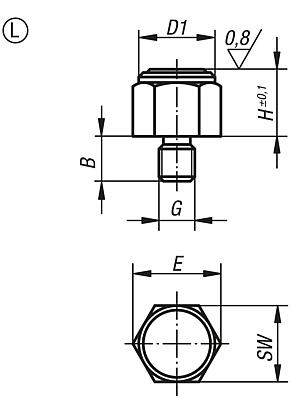

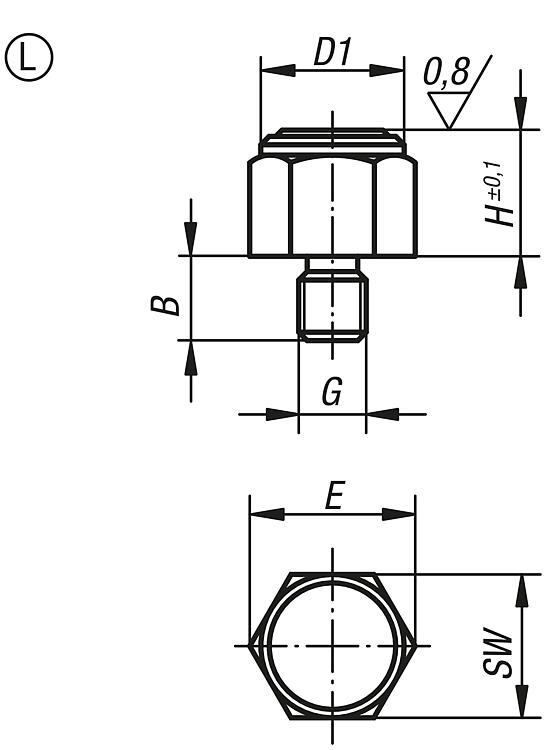

Form L: External thread and POM insert

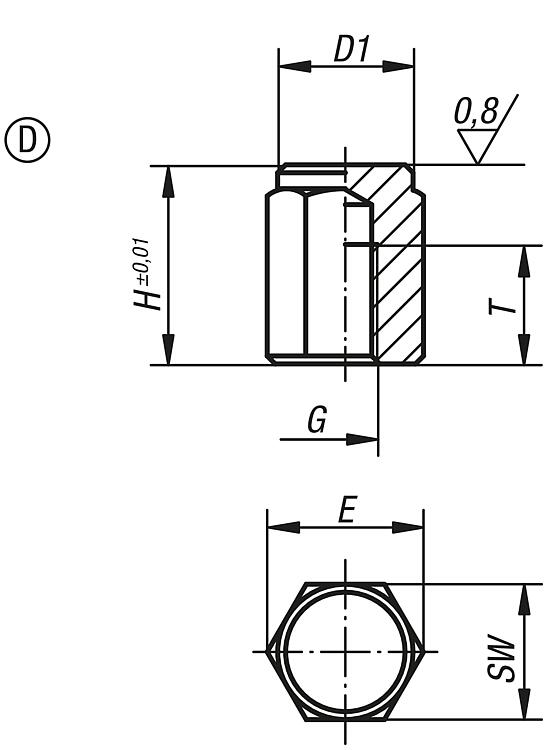

Form D: External thread and flat face
Form E: External thread and convex face
Form F: External thread and serrated face DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

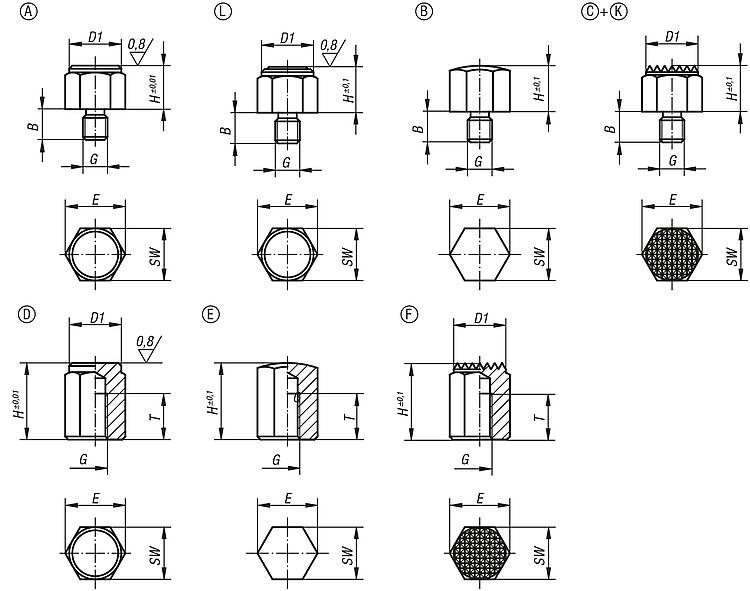

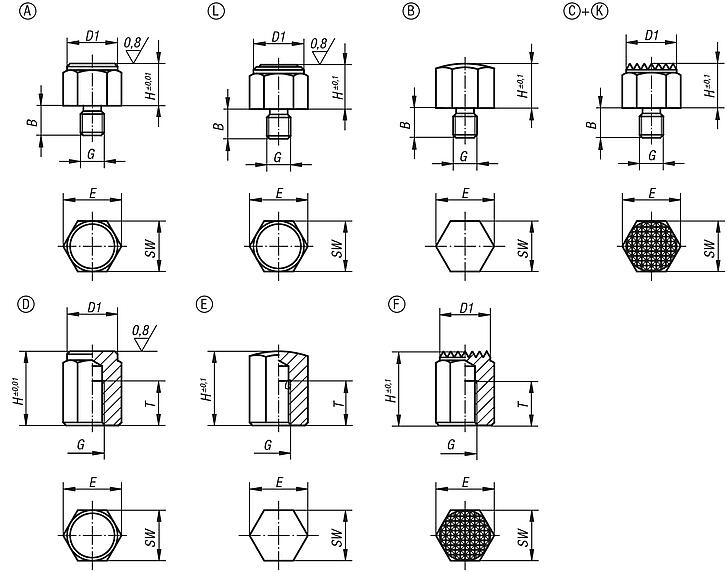

Drawings (total overview) |
Order No.
| Form | B | D1 | G | H | E | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0298.108 | A | 8 | 13 | M6 | 8 | 14,4 | 13 | 8,5 |  | | 11.39 € | | | K0298.1104 | A | 10 | 13 | M6 | 10 | 14,4 | 13 | 8,5 | | | 12.06 € | | | K0298.1081 | A | 10 | 17 | M8 | 8 | 19,4 | 17 | 18 | | | 12.73 € | | | K0298.1101 | A | 10 | 17 | M8 | 10 | 19,4 | 17 | 18 | | | 13.78 € | | | K0298.1103 | A | 12 | 19 | M10 | 10 | 21,9 | 19 | 32 | | | 14.19 € | | | K0298.1152 | A | 12 | 19 | M10 | 15 | 21,9 | 19 | 32 | | | 14.19 € | | | K0298.110 | A | 14 | 22 | M12 | 10 | 25,2 | 22 | 60 | | | 15.39 € | | | K0298.115 | A | 14 | 22 | M12 | 15 | 25,2 | 22 | 60 | | | 15.39 € | | | K0298.1151 | A | 19 | 30 | M16 | 15 | 33 | 30 | 140 | | | 35.88 € | | | K0298.1201 | A | 19 | 30 | M16 | 20 | 33 | 30 | 140 | | | 36.70 € | |
|
Order No.
| Form | B | G | H | E | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0298.208 | B | 8 | M6 | 8 | 14,4 | 13 | 8,5 | | | 9.48 € | | | K0298.2104 | B | 10 | M6 | 10 | 14,4 | 13 | 8,5 | | | 10.05 € | | | K0298.2081 | B | 10 | M8 | 8 | 19,4 | 17 | 18 | | | 10.60 € | | | K0298.2101 | B | 10 | M8 | 10 | 19,4 | 17 | 18 | | | 11.47 € | | | K0298.2103 | B | 12 | M10 | 10 | 21,9 | 19 | 32 | | | 12.25 € | | | K0298.2152 | B | 12 | M10 | 15 | 21,9 | 19 | 32 | | | 12.25 € | | | K0298.210 | B | 14 | M12 | 10 | 25,2 | 22 | 60 | | | 13.18 € | | | K0298.215 | B | 14 | M12 | 15 | 25,2 | 22 | 60 | | | 13.46 € | | | K0298.2151 | B | 19 | M16 | 15 | 33 | 30 | 140 | | | 26.76 € | | | K0298.2201 | B | 19 | M16 | 20 | 33 | 30 | 140 | | | 27.45 € | |
|

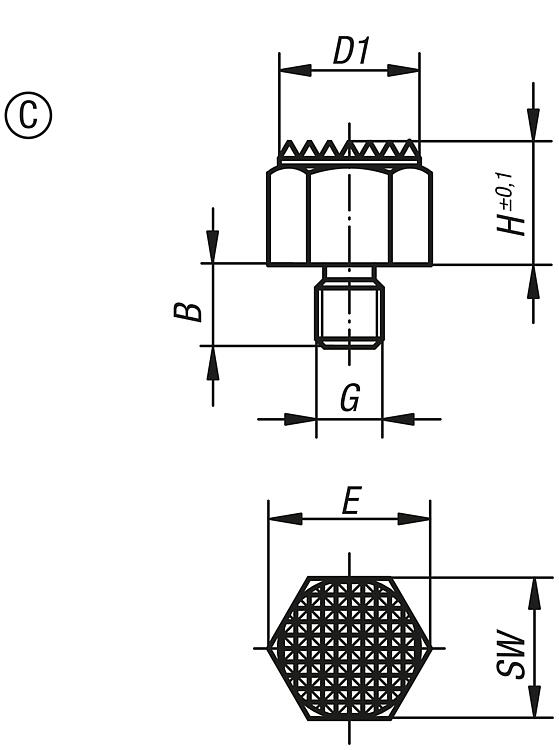

Positioning feet with external thread and serrated face, Form C |
More information |
Order No.
| Form | B | D1 | G | H | E | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| K0298.308 | C | 8 | 13 | M6 | 8 | 14,4 | 13 | 8,5 | | | 10.88 € | | | K0298.3102 | C | 10 | 13 | M6 | 10 | 14,4 | 13 | 8,5 | | | 11.52 € | | | K0298.3081 | C | 10 | 17 | M8 | 8 | 19,4 | 17 | 18 | | | 12.14 € | | | K0298.3101 | C | 10 | 17 | M8 | 10 | 19,4 | 17 | 18 | | | 13.15 € | | | K0298.3103 | C | 12 | 19 | M10 | 10 | 21,9 | 19 | 32 | | | 13.79 € | | | K0298.3152 | C | 12 | 19 | M10 | 15 | 21,9 | 19 | 32 | | | 13.79 € | | | K0298.310 | C | 14 | 22 | M12 | 10 | 25,2 | 22 | 60 | | | 13.99 € | | | K0298.315 | C | 14 | 22 | M12 | 15 | 25,2 | 22 | 60 | | | 13.99 € | | | K0298.3151 | C | 19 | 30 | M16 | 15 | 33 | 30 | 140 | | | 33.39 € | | | K0298.3201 | C | 19 | 30 | M16 | 20 | 33 | 30 | 140 | | | 34.40 € | |
|
|
|
Order No.
| Form | D1 | G | H | T | E | SW | CAD | Acc. | Price | Order |
|---|
| K0298.410 | D | 13 | M6 | 10 | 6 | 14,4 | 13 | | | 9.68 € | | | K0298.4151 | D | 13 | M6 | 15 | 10 | 14,4 | 13 | | | 10.24 € | | | K0298.4101 | D | 17 | M8 | 10 | 6 | 19,4 | 17 | | | 10.79 € | | | K0298.415 | D | 17 | M8 | 15 | 6 | 19,4 | 17 | | | 11.69 € | | | K0298.4251 | D | 17 | M8 | 25 | 16 | 19,4 | 17 | | | 13.06 € | | | K0298.4201 | D | 19 | M10 | 20 | 10 | 21,9 | 19 | | | 12.25 € | | | K0298.4302 | D | 19 | M10 | 30 | 15 | 21,9 | 19 | | | 12.67 € | | | K0298.4401 | D | 19 | M10 | 40 | 15 | 21,9 | 19 | | | 13.64 € | | | K0298.420 | D | 22 | M12 | 20 | 10 | 25,2 | 22 | | | 12.43 € | | | K0298.425 | D | 22 | M12 | 25 | 15 | 25,2 | 22 | | | 12.76 € | | | K0298.430 | D | 22 | M12 | 30 | 20 | 25,2 | 22 | | | 13.06 € | | | K0298.440 | D | 22 | M12 | 40 | 25 | 25,2 | 22 | | | 13.74 € | | | K0298.450 | D | 22 | M12 | 50 | 25 | 25,2 | 22 | | | 14.27 € | | | K0298.4301 | D | 30 | M16 | 30 | 20 | 33 | 30 | | | 32.64 € | | | K0298.4501 | D | 30 | M16 | 50 | 25 | 33 | 30 | | | 35.88 € | |
|

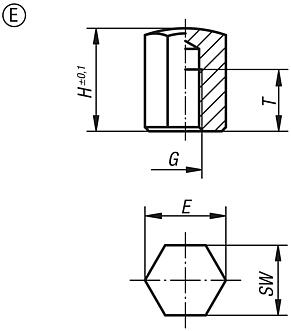

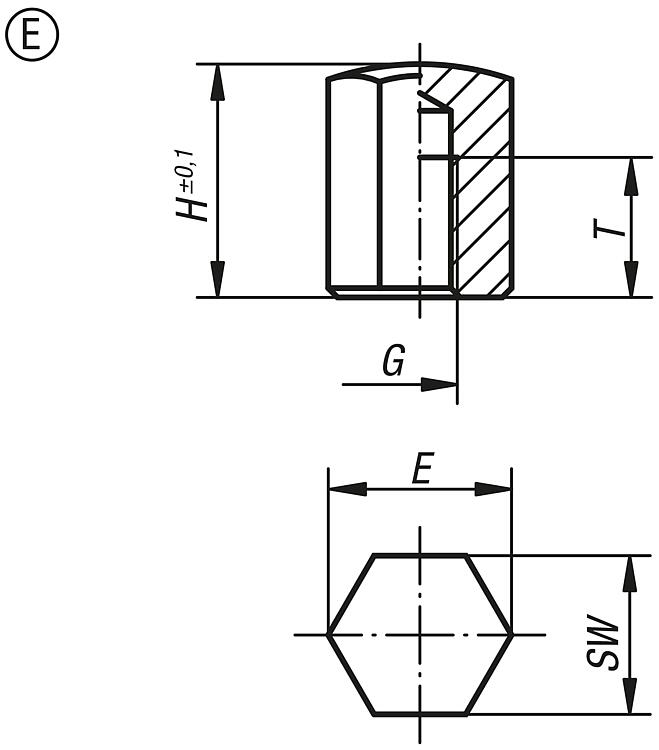

Positioning feet with internal thread and spherical face face, Form E |
More information |
Order No.
| Form | G | H | T | E | SW | CAD | Acc. | Price | Order |
|---|
| K0298.510 | E | M6 | 10 | 6 | 14,4 | 13 | | | 7.98 € | | | K0298.5151 | E | M6 | 15 | 10 | 14,4 | 13 | | | 8.45 € | | | K0298.5101 | E | M8 | 10 | 6 | 19,4 | 17 | | | 8.93 € | | | K0298.515 | E | M8 | 15 | 6 | 19,4 | 17 | | | 9.65 € | | | K0298.5251 | E | M8 | 25 | 16 | 19,4 | 17 | | | 9.98 € | | | K0298.5201 | E | M10 | 20 | 10 | 21,9 | 19 | | | 10.58 € | | | K0298.5302 | E | M10 | 30 | 15 | 21,9 | 19 | | | 11.00 € | | | K0298.5401 | E | M10 | 40 | 15 | 21,9 | 19 | | | 11.69 € | | | K0298.520 | E | M12 | 20 | 10 | 25,2 | 22 | | | 10.65 € | | | K0298.525 | E | M12 | 25 | 15 | 25,2 | 22 | | | 10.70 € | | | K0298.530 | E | M12 | 30 | 20 | 25,2 | 22 | | | 11.11 € | | | K0298.540 | E | M12 | 40 | 25 | 25,2 | 22 | | | 11.80 € | | | K0298.550 | E | M12 | 50 | 25 | 25,2 | 22 | | | 12.39 € | | | K0298.5301 | E | M16 | 30 | 20 | 33 | 30 | | | 23.75 € | | | K0298.5501 | E | M16 | 50 | 25 | 33 | 30 | | | 24.66 € | |
|

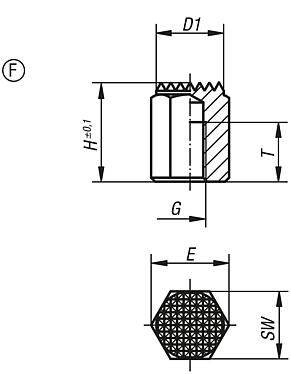

Positioning feet with internal thread and serrated face, Form F |
More information |
Order No.
| Form | D1 | G | H | T | E | SW | CAD | Acc. | Price | Order |
|---|
| K0298.610 | F | 13 | M6 | 10 | 6 | 14,4 | 13 | | | 9.02 € | | | K0298.6151 | F | 13 | M6 | 15 | 10 | 14,4 | 13 | | | 9.79 € | | | K0298.6101 | F | 17 | M8 | 10 | 6 | 19,4 | 17 | | | 10.35 € | | | K0298.615 | F | 17 | M8 | 15 | 6 | 19,4 | 17 | | | 11.18 € | | | K0298.6251 | F | 17 | M8 | 25 | 16 | 19,4 | 17 | | | 11.45 € | | | K0298.6201 | F | 19 | M10 | 20 | 10 | 21,9 | 19 | | | 11.42 € | | | K0298.6302 | F | 19 | M10 | 30 | 15 | 21,9 | 19 | | | 11.83 € | | | K0298.6401 | F | 19 | M10 | 40 | 15 | 21,9 | 19 | | | 12.67 € | | | K0298.620 | F | 22 | M12 | 20 | 10 | 25,2 | 22 | | | 11.47 € | | | K0298.625 | F | 22 | M12 | 25 | 15 | 25,2 | 22 | | | 11.80 € | | | K0298.630 | F | 22 | M12 | 30 | 20 | 25,2 | 22 | | | 11.96 € | | | K0298.640 | F | 22 | M12 | 40 | 25 | 25,2 | 22 | | | 12.76 € | | | K0298.650 | F | 22 | M12 | 50 | 25 | 25,2 | 22 | | | 13.46 € | | | K0298.6301 | F | 30 | M16 | 30 | 20 | 33 | 30 | | | 30.09 € | | | K0298.6501 | F | 30 | M16 | 50 | 25 | 33 | 30 | | | 31.53 € | |
|
