Item description/product images |
|
|

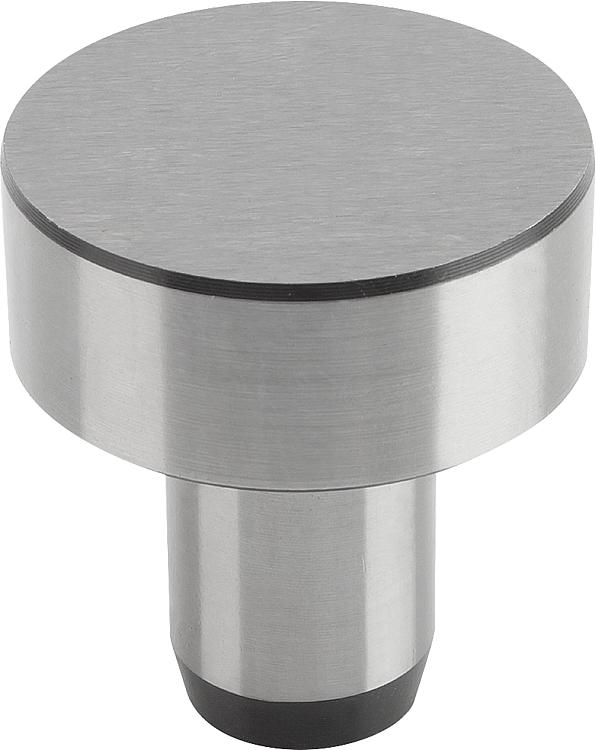

DescriptionMaterial:Tool steel.Version:Hardened and ground.
Top face without centerbore.Note:Rest pads, Form A, serve as supports for workpieces and fixtures. Rest pads Form A can also be used as hardened stops and fixture feet.
For similar pads, see K0352, K0353, K0354 and K0355. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
