K1760Steel plate swivel and fixed castors with standard solid rubber... |
go back |
|
|
DescriptionMaterial:Housing steel plate.
Wheel treads solid rubber.
Wheel rims polyamide.Version:Housing press formed.
Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle bolted.
Solid rubber tyres are shock and impact proof and non-corroding. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

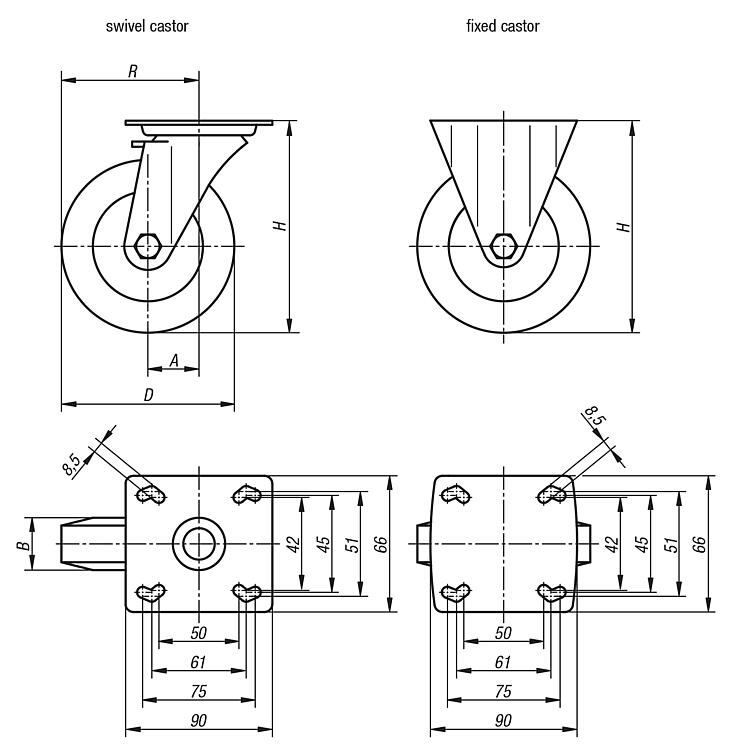

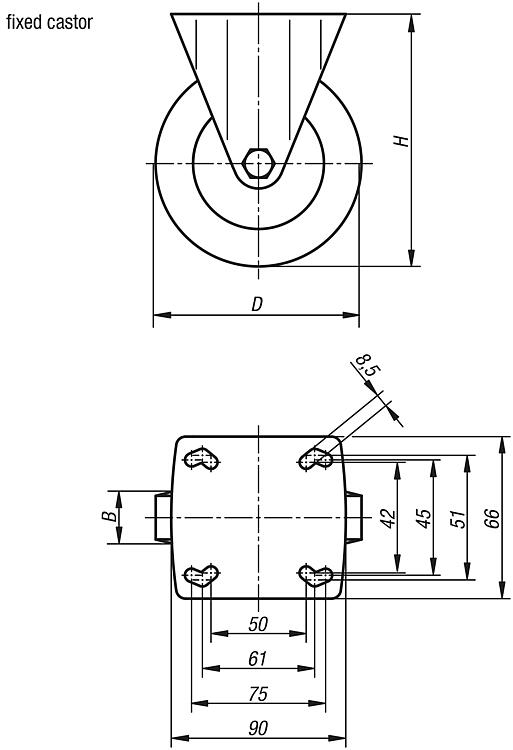

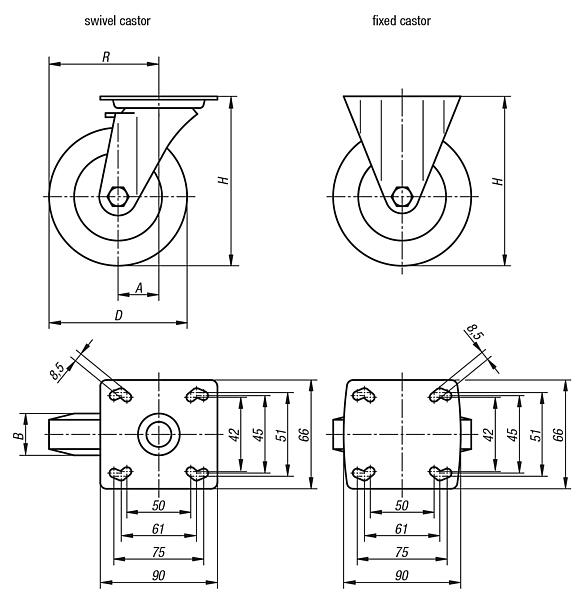

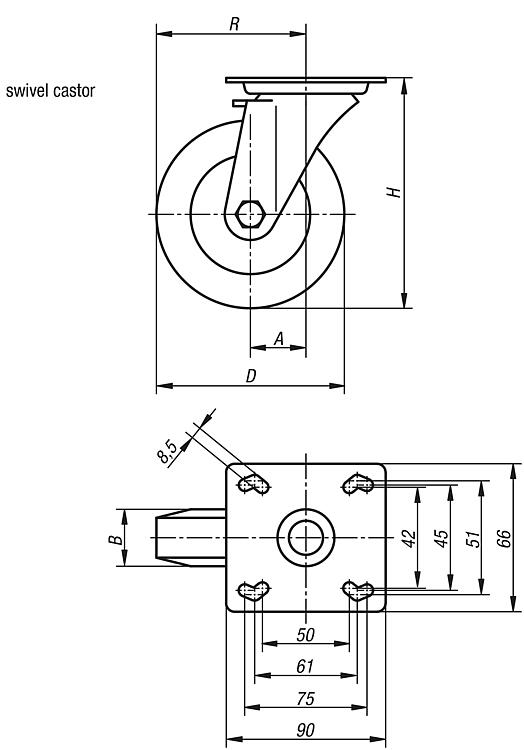

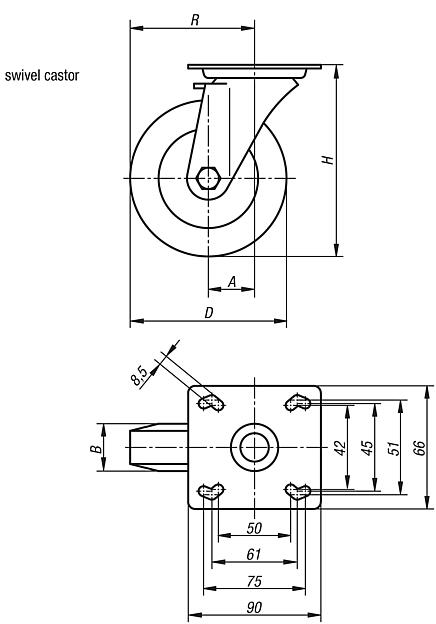

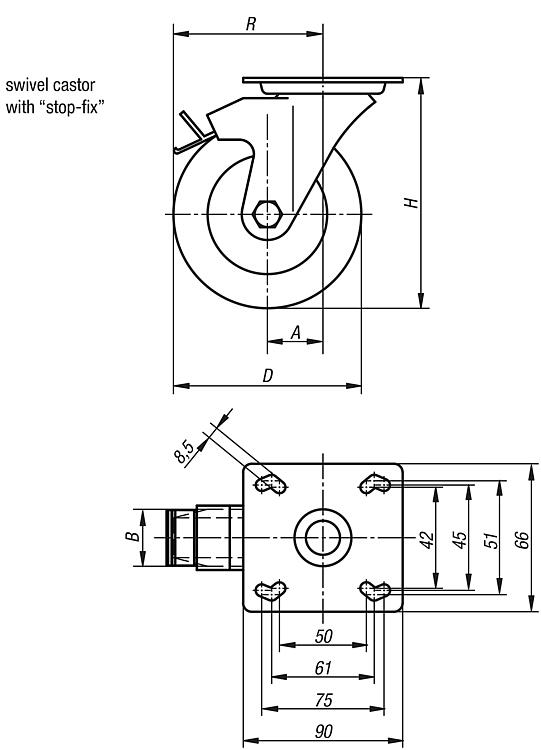

Drawings (total overview) |
