Wheels polyamide heavy-duty version

go back

Products
- Operating parts | standard elements
  - Material handling
    - Wheels and rollers
      - Wheels polyamide heavy-duty version

Item description/product images

Show/filter all items

DescriptionMaterial:Polyamide.Note:Polyamide wheels are unbreakable, non-corroding, shock and impact proof and chemical resistant. They also have high abrasion resistance and low roll resistance.
Suitable as replacement rollers for the castors K1772.Drawing reference:

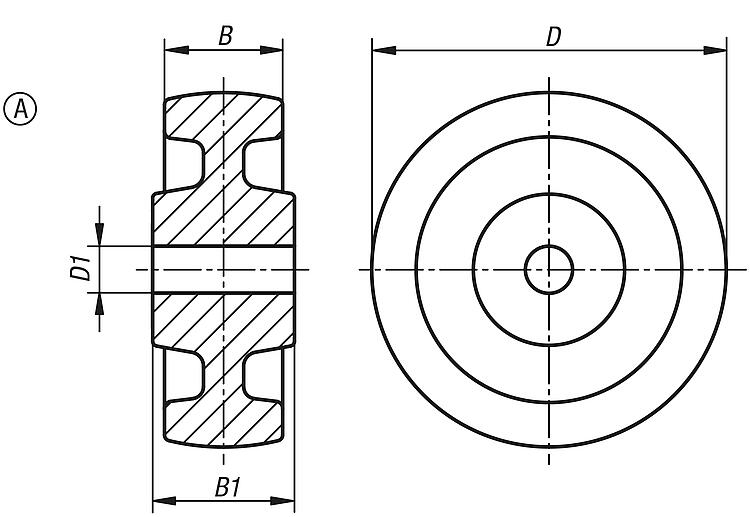

Form A: plain bearing

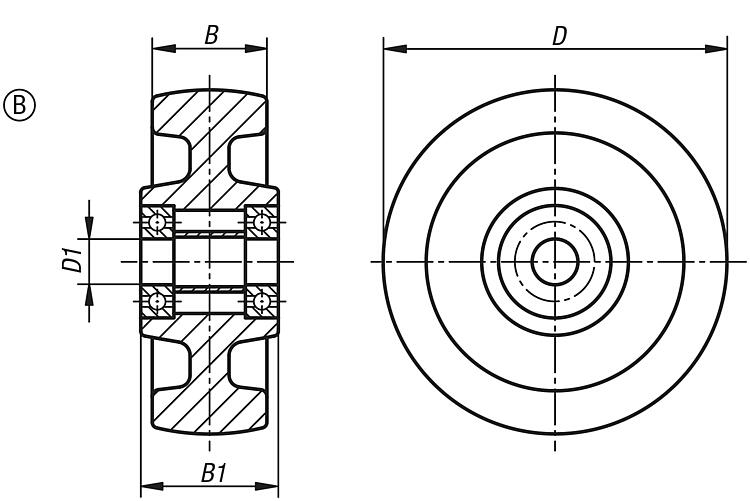

Form B: ball bearing

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1784 Wheels polyamide heavy-duty version

204 kB

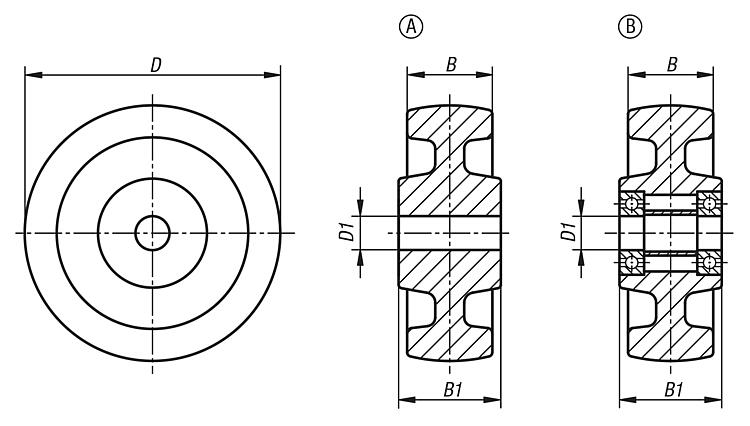

Drawings (total overview)

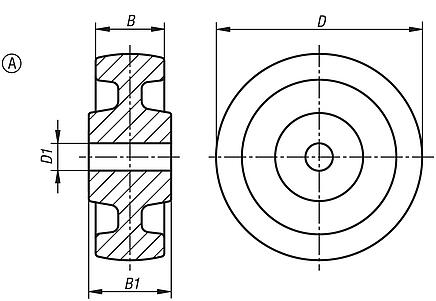

Nylon wheels, heavy version with plain bearings, Form A

More information

Drawings

Nylon wheels, heavy version with plain bearings, Form A

Item selection/filter

Order No.	Wheel bearing	D	D1	B	B1	Permissible load kg	Price
K1784.07532	Plain bearing	75	12	32	35	300	13.34 €
K1784.10037	Plain bearing	100	15	37	45	500	22.43 €
K1784.12540	Plain bearing	125	15	40	45	700	37.11 €
K1784.15050	Plain bearing	150	20	50	60	800	45.22 €
K1784.20050	Plain bearing	200	20	50	60	1500	88.78 €
K1784.25065	Plain bearing	250	25	65	70	2000	165.06 €

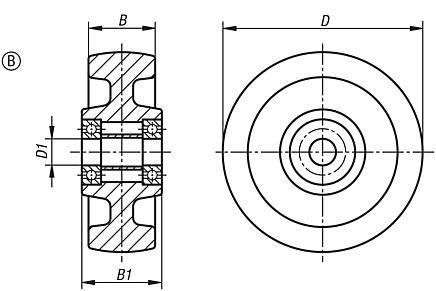

Nylon wheels, heavy version with ball bearings, Form B

More information

Drawings

Nylon wheels, heavy version with ball bearings, Form B

Item selection/filter

Order No.	Wheel bearing	D	D1	B	B1	Permissible load kg	Price
K1784.075321	Ball bearing	75	15	32	35	300	43.88 €
K1784.100371	Ball bearing	100	15	37	45	500	56.01 €
K1784.125401	Ball bearing	125	20	40	45	700	74.42 €
K1784.150501	Ball bearing	150	20	50	60	800	75.79 €
K1784.200501	Ball bearing	200	25	50	60	1500	141.76 €
K1784.250651	Ball bearing	250	25	65	65	2000	217.75 €
