K1772Steel plate swivel and fixed castors with polyamide wheels,... |
go back |
|
|
DescriptionMaterial:Housing thick steel plate.
Wheels high-quality PA 6.Version:Housing press formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.Note:The hardened bearing shells make these castors particularly shock and impact proof. The wheels have high abrasion resistance. Wheel axle bolted. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

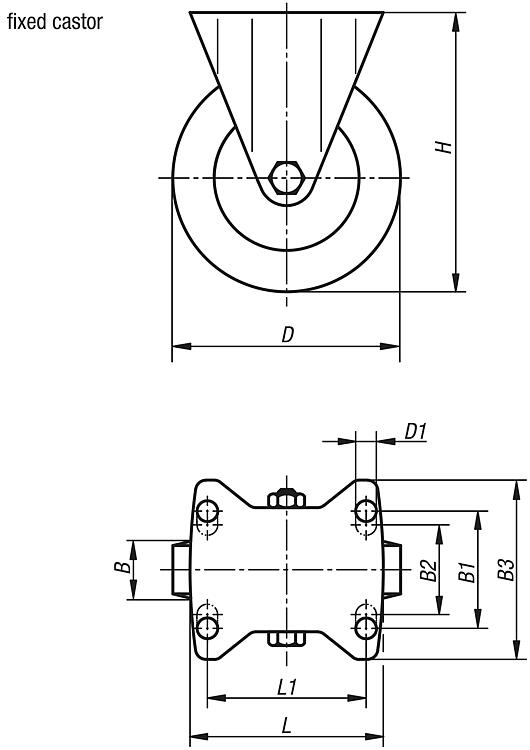

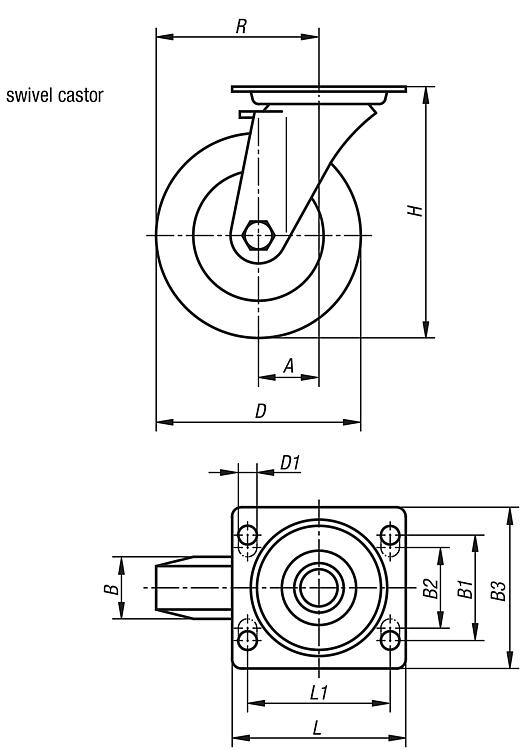

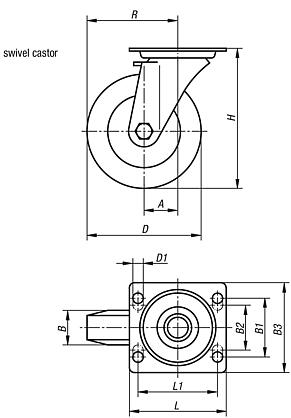

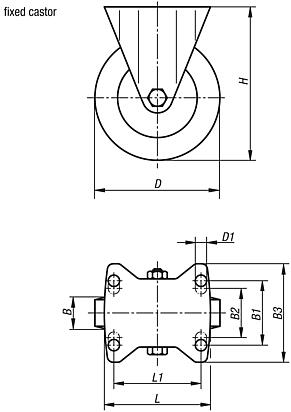

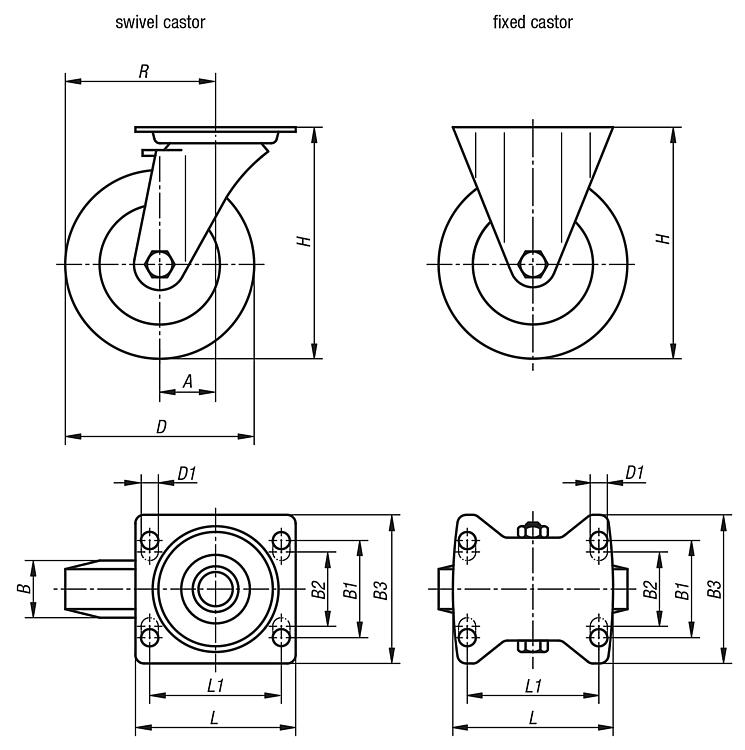

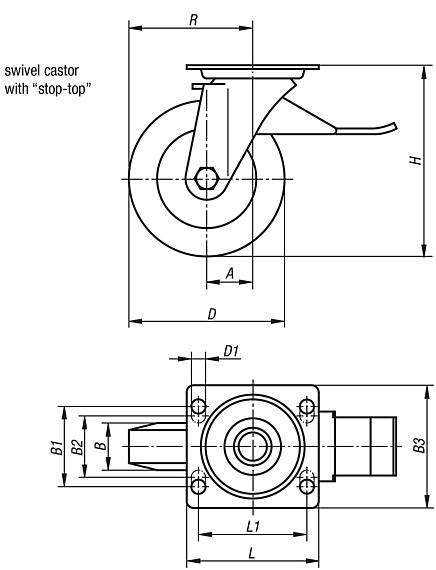

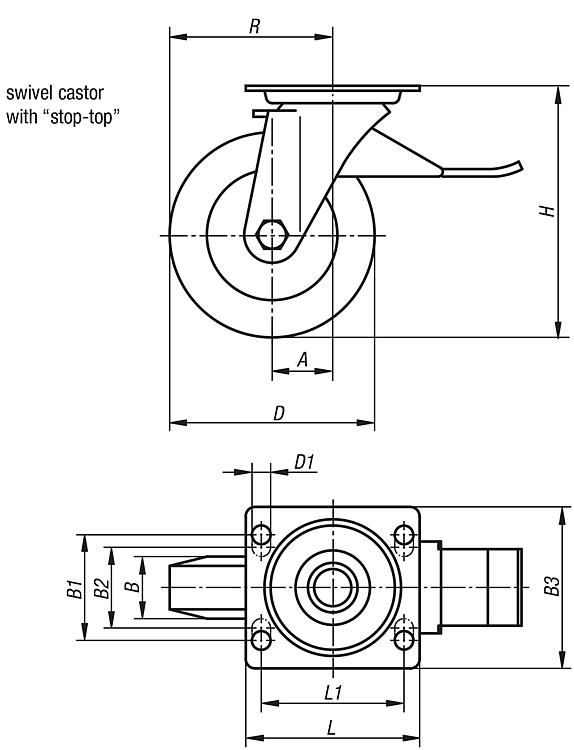

Drawings (total overview) |
