Tension levers with internal thread, 0 degrees

go back

Products
- Operating parts | standard elements
  - Clamping levers, tension levers, cam levers
    - Tension levers
      - Tension levers
        Tension levers with internal thread, 0 degrees

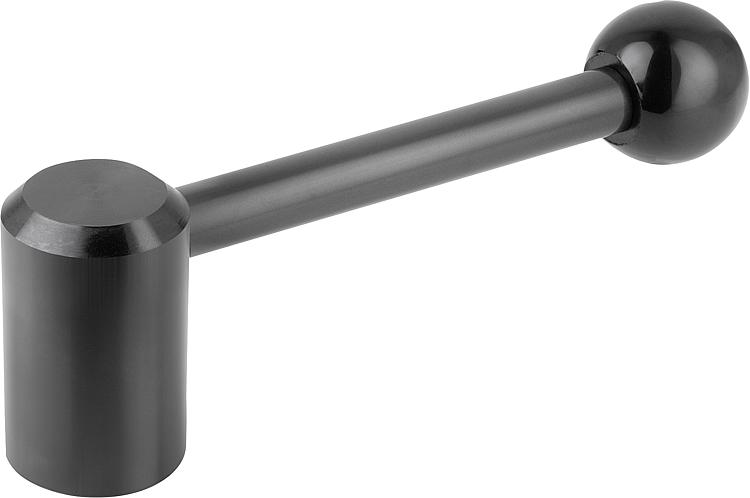

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidised.Note:Tension levers can be used for simple clamping or control operations.
Where applicable, there must be enough space available so that the grip can be rotated 360°.On request:Other female threads, reamed holes and special versions.
Dimension “A” available in other lengths at extra charge.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0176_IG0 Tension levers with internal thread, 0 degrees

102 kB

Drawings

Item selection/filter

Order No.	Kind of fastening	X	T	A=Handle length	D	D1	D2	H	H2	Price
K0176.2082	internal thread	M8	18	88,1	24	10	25	40	32,5	8.34 €
K0176.2102	internal thread	M10	18	88,1	24	10	25	40	32,5	8.34 €
K0176.21012	internal thread	M10	20	104	28	12	32	46	36,5	10.35 €
K0176.2122	internal thread	M12	20	104	28	12	32	46	36,5	10.35 €
K0176.2162	internal thread	M16	23	126,5	33	13	32	52	41	12.51 €
K0176.2202	internal thread	M20	26	128,5	41	13	32	61	49	17.34 €
