K0129Tension levers flat external thread, stainless steel |
go back |
|
|

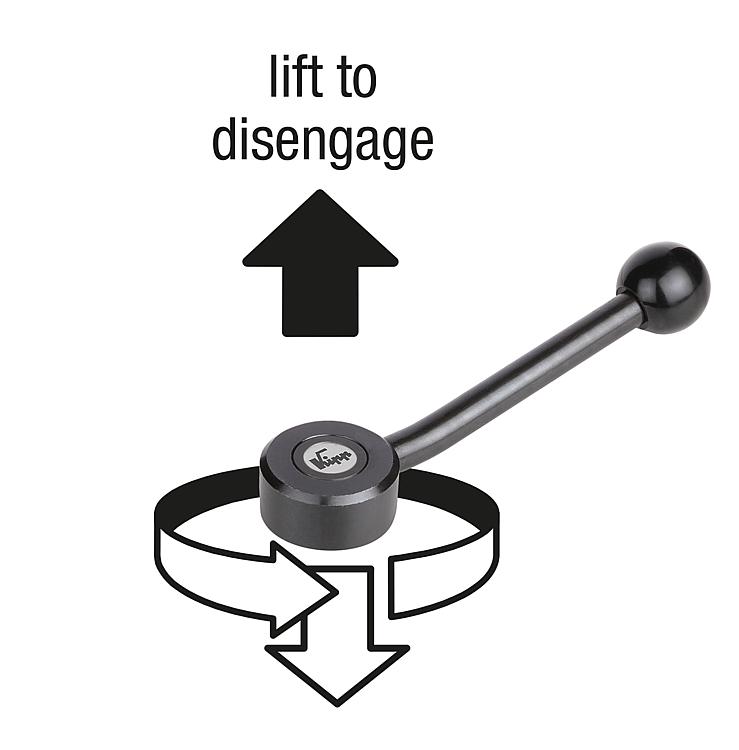

DescriptionMaterial:Steel parts stainless steel 1.4305.
Ball knob black plastic. Version:Steel parts bright.On request:Other threads, screw lengths and special versions.

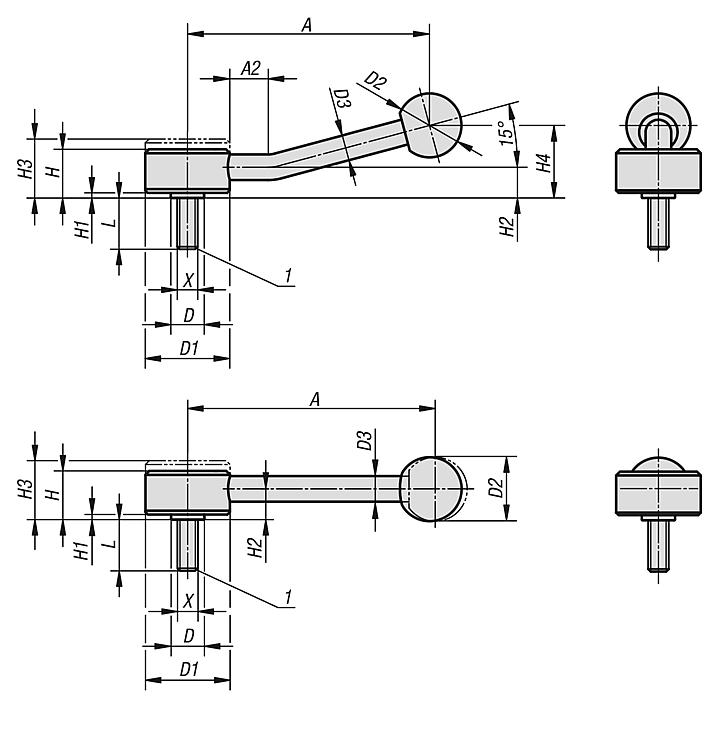

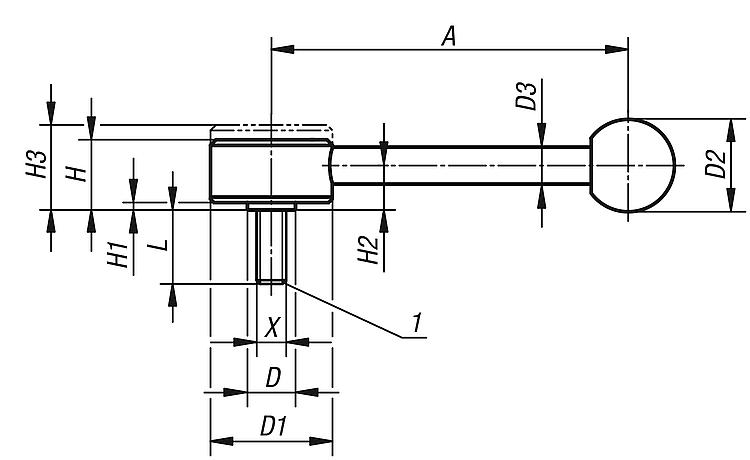

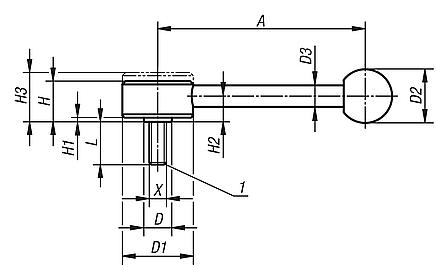

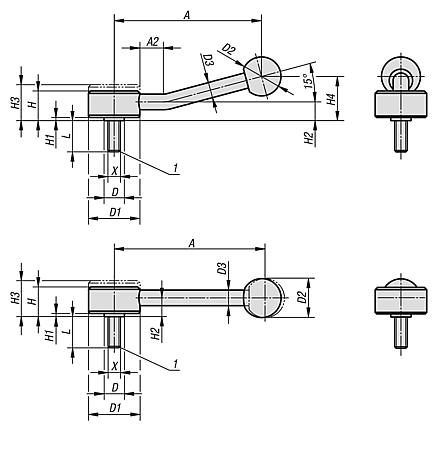

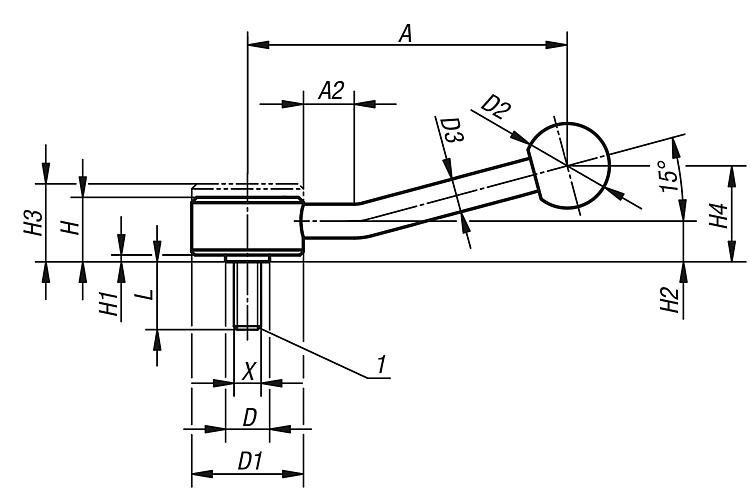

Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Form | X | A=Handle length | D | D1 | D2 | D3 | H | H1 | H2 | H3 | No. of
teeth
| L | CAD | Acc. | Price | Order |
|---|
| K0129.1081X30 | 0° | M8 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 26 | 30 |  | | 27.42 € | | | K0129.1081X40 | 0° | M8 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 26 | 40 | | | 28.80 € | | | K0129.1081X50 | 0° | M8 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 26 | 50 | | | 28.80 € | | | K0129.2101X30 | 0° | M10 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 30 | 30 | | | 33.80 € | | | K0129.2101X40 | 0° | M10 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 30 | 40 | | | 35.70 € | | | K0129.2101X50 | 0° | M10 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 30 | 50 | | | 35.70 € | | | K0129.2101X60 | 0° | M10 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 30 | 60 | | | 35.70 € | | | K0129.2121X30 | 0° | M12 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 30 | 30 | | | 33.80 € | | | K0129.2121X40 | 0° | M12 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 30 | 40 | | | 35.70 € | | | K0129.2121X50 | 0° | M12 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 30 | 50 | | | 35.70 € | | | K0129.2121X60 | 0° | M12 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 30 | 60 | | | 35.70 € | | | K0129.3161X40 | 0° | M16 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 36 | 40 | | | 42.44 € | | | K0129.3161X50 | 0° | M16 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 36 | 50 | | | 42.44 € | | | K0129.3161X60 | 0° | M16 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 36 | 60 | | | 42.44 € | |
|
| Order No. | Form | X | A=Handle length | A2 | D | D1 | D2 | D3 | H | H1 | H2 | H3 | H4 | No. of
teeth
| L | CAD | Acc. | Price | Order |
|---|
| K0129.1082X30 | 15° | M8 | 100 | 15 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 29 | 26 | 30 | | | 28.78 € | | | K0129.1082X40 | 15° | M8 | 100 | 15 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 29 | 26 | 40 | | | 30.15 € | | | K0129.1082X50 | 15° | M8 | 100 | 15 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 29 | 26 | 50 | | | 30.15 € | | | K0129.2102X30 | 15° | M10 | 127 | 15 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 38 | 30 | 30 | | | 35.16 € | | | K0129.2102X40 | 15° | M10 | 127 | 15 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 38 | 30 | 40 | | | 37.05 € | | | K0129.2102X50 | 15° | M10 | 127 | 15 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 38 | 30 | 50 | | | 37.05 € | | | K0129.2102X60 | 15° | M10 | 127 | 15 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 38 | 30 | 60 | | | 37.05 € | | | K0129.2122X30 | 15° | M12 | 127 | 15 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 38 | 30 | 30 | | | 35.16 € | | | K0129.2122X40 | 15° | M12 | 127 | 15 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 38 | 30 | 40 | | | 37.05 € | | | K0129.2122X50 | 15° | M12 | 127 | 15 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 38 | 30 | 50 | | | 37.05 € | | | K0129.2122X60 | 15° | M12 | 127 | 15 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 38 | 30 | 60 | | | 37.05 € | | | K0129.3162X40 | 15° | M16 | 145 | 15 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 48 | 36 | 40 | | | 43.79 € | | | K0129.3162X50 | 15° | M16 | 145 | 15 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 48 | 36 | 50 | | | 43.79 € | | | K0129.3162X60 | 15° | M16 | 145 | 15 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 48 | 36 | 60 | | | 43.79 € | |
|
