      - Tension levers, flat, internal thread

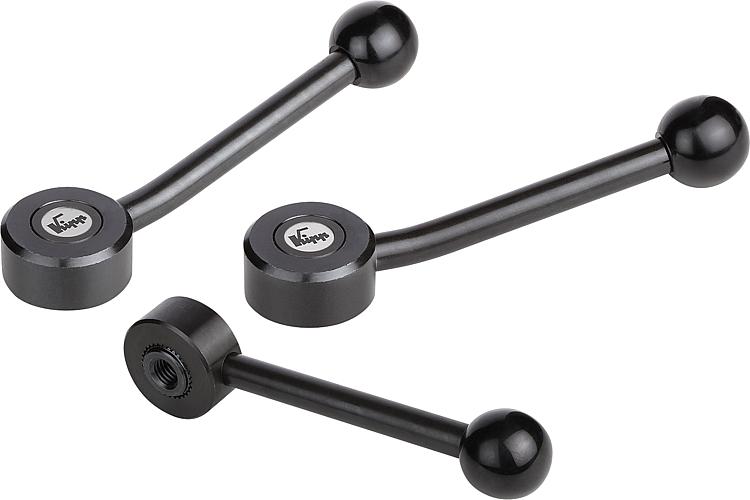

Item description/product images

Show/filter all items

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidised.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0114 Tension levers flat internal thread

210 kB

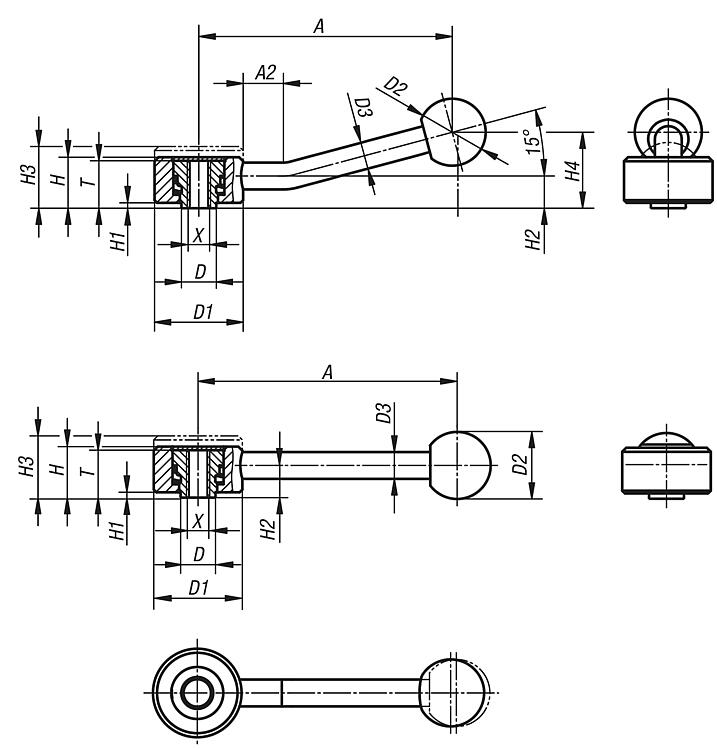

Drawings (total overview)

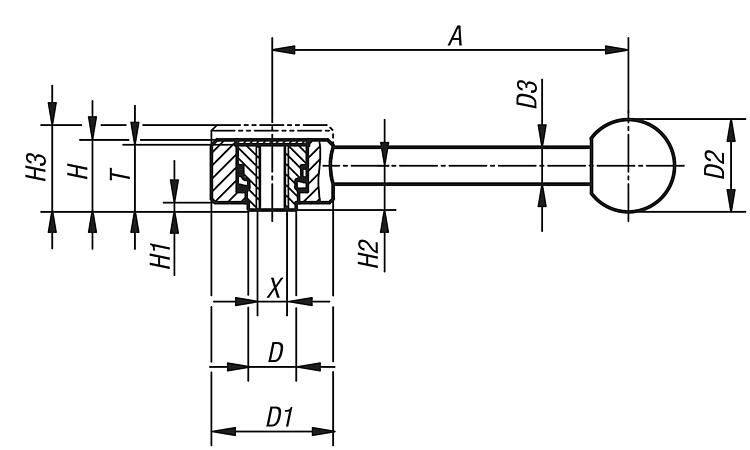

Tension levers flat, with internal thread, 0°

More information

Drawings

Tension levers flat, with internal thread, 0°

Item selection/filter

Order No.	Form	X	T	A	D	D1	D2	D3	H	H1	H2	H3	No. of teeth	Price
K0114.1061	0°	M6	18	102	13,5	33	25	10	19	2	12	23	26	15.18 €
K0114.1081	0°	M8	18	102	13,5	33	25	10	19	2	12	23	26	15.18 €
K0114.2101	0°	M10	21	131	19	41	30	12	22	2	13,5	26	30	18.74 €
K0114.2121	0°	M12	21	131	19	41	30	12	22	2	13,5	26	30	18.74 €
K0114.3121	0°	M12	27	148	23	45	37	14	28	2	17	33	36	22.11 €
K0114.3161	0°	M16	27	148	23	45	37	14	28	2	17	33	36	22.11 €

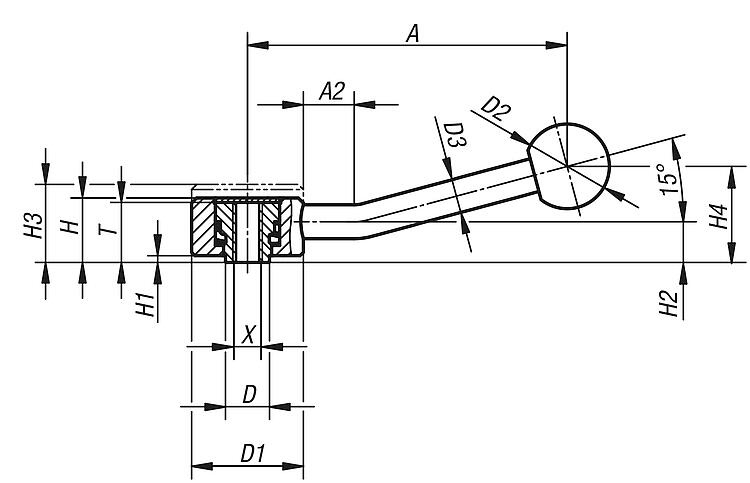

Tension levers flat, internal thread, 15°

More information

Drawings

Tension levers flat, internal thread, 15°

Item selection/filter

Order No.	Form	X	T	A	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
K0114.1062	15°	M6	18	100	15	13,5	33	25	10	19	2	12	23	29	26	17.09 €
K0114.1082	15°	M8	18	100	15	13,5	33	25	10	19	2	12	23	29	26	17.09 €
K0114.2102	15°	M10	21	127	15	19	41	30	12	22	2	13,5	26	38	30	20.88 €
K0114.2122	15°	M12	21	127	15	19	41	30	12	22	2	13,5	26	38	30	20.88 €
K0114.3122	15°	M12	27	145	15	23	45	37	14	28	2	17	33	48	36	24.35 €
K0114.3162	15°	M16	27	145	15	23	45	37	14	28	2	17	33	48	36	24.35 €
