Tension levers flat, internal thread, stainless steel

go back

Products
- Operating parts | standard elements
  - Clamping levers, tension levers, cam levers
    - Tension levers
      - Tension levers flat, internal thread, stainless steel

Item description/product images

Show/filter all items

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0129 Tension levers flat internal thread, stainless steel

226 kB

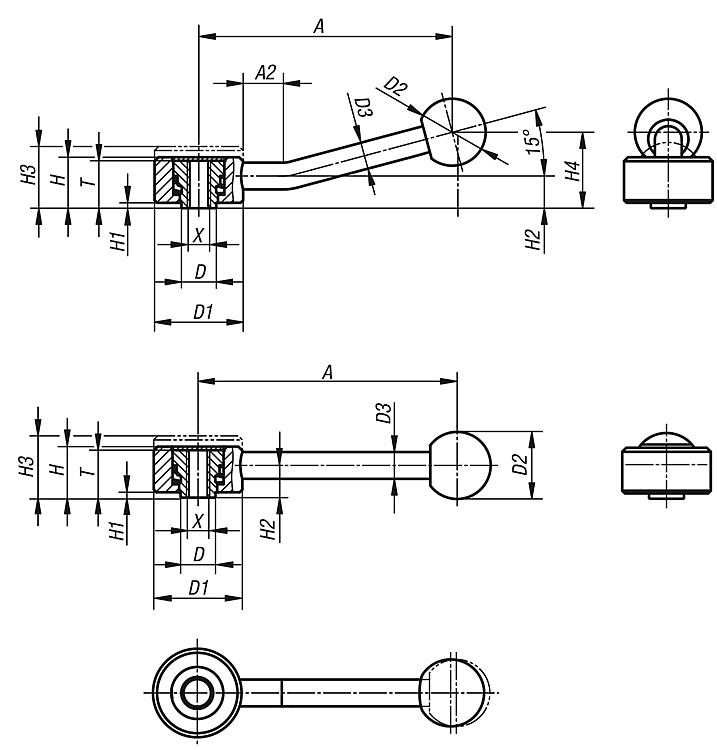

Drawings (total overview)

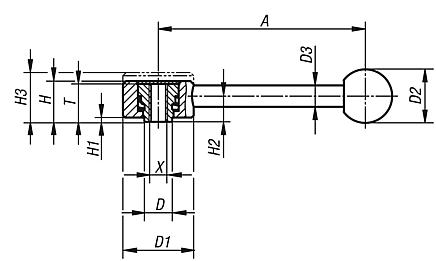

Tension levers flat internal thread, stainless steel, 0°

More information

Drawings

Tension levers flat internal thread, stainless steel, 0°

Item selection/filter

Order No.	Form	X	T	A=Handle length	D	D1	D2	D3	H	H1	H2	H3	No. of teeth	Price
K0129.1081	0°	M8	18	102	13,5	33	25	10	19	2	12	23	26	26.22 €
K0129.2101	0°	M10	21	131	19	41	30	12	22	2	13,5	26	30	32.38 €
K0129.2121	0°	M12	21	131	19	41	30	12	22	2	13,5	26	30	32.38 €
K0129.3161	0°	M16	27	148	23	45	37	14	28	2	17	33	36	38.19 €

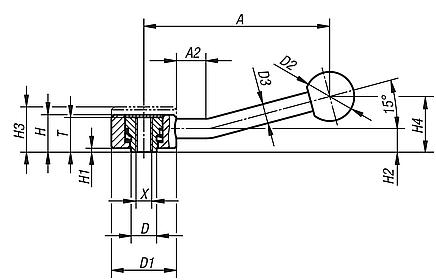

Tension levers flat internal thread, stainless steel, 15°

More information

Drawings

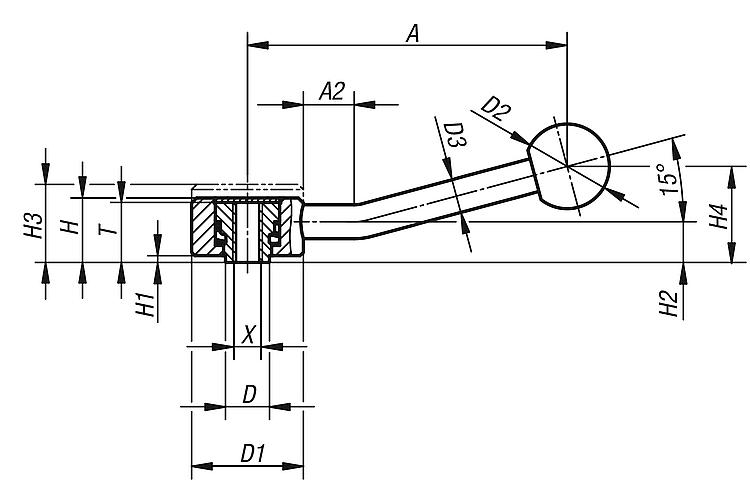

Tension levers flat internal thread, stainless steel, 15°

Item selection/filter

Order No.	Form	X	T	A=Handle length	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
K0129.1082	15°	M8	18	100	15	13,5	33	25	10	19	2	12	23	29	26	27.56 €
K0129.2102	15°	M10	21	127	15	19	41	30	12	22	2	13,5	26	38	30	33.74 €
K0129.2122	15°	M12	21	127	15	19	41	30	12	22	2	13,5	26	38	30	33.74 €
K0129.3162	15°	M16	27	145	15	23	45	37	14	28	2	17	33	48	36	39.55 €
