K0998Crank handles aluminium with safety grip |
go back |
|
|
DescriptionMaterial:Crank aluminium.
Cylinder grip thermoplastic and steel.Version:Crank black powder-coated.
Thermoplastic black grey.
Steel parts black oxidised.Note:Similar to DIN 469.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

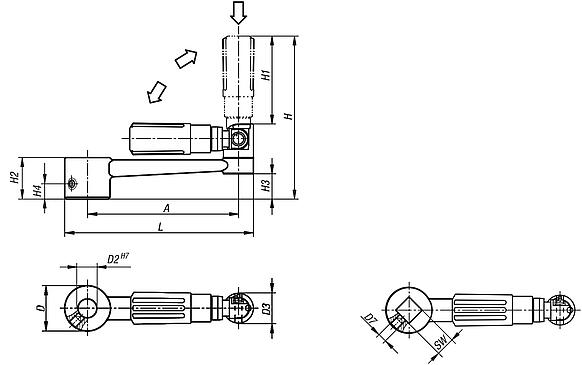

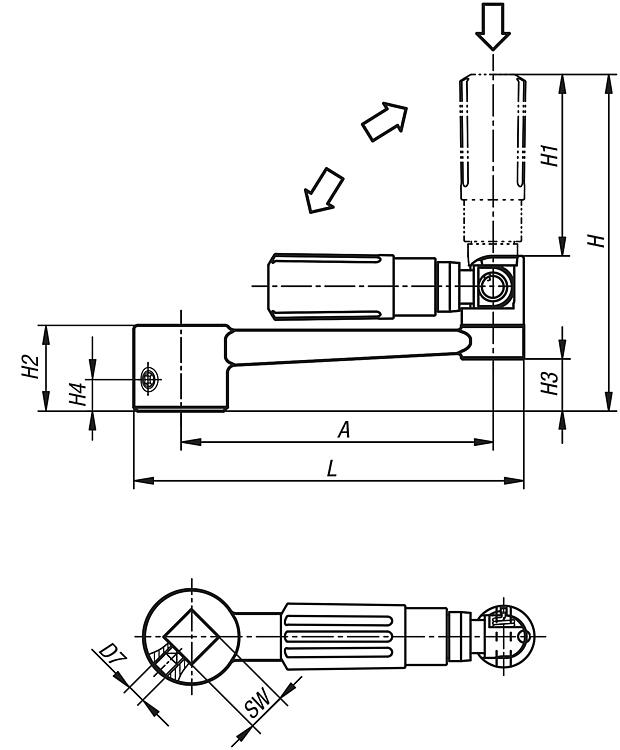

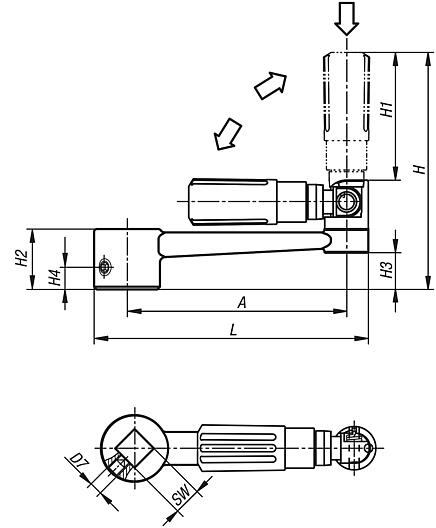

Drawings (total overview) |
| Order No. | Version 1 | Version 2 | A | D
| D2 | D3 | D7 | H | H1 | H2 | H3 | H4 | L | CAD | Acc. | Price | Order |
|---|
| K0998.1110 | reamed hole | without transverse hole | 80 | 24 | 10 | 16 | - | 87,5 | 47,5 | 22 | 13,6 | - | 100 |  | | 46.37 € | | | K0998.1212 | reamed hole | without transverse hole | 100 | 28 | 12 | 20 | - | 107 | 58,5 | 25 | 16 | - | 124 | | | 54.12 € | | | K0998.1314 | reamed hole | without transverse hole | 125 | 30 | 14 | 25 | - | 139 | 82 | 28 | 15,8 | - | 153 | | | 71.82 € | | | K0998.1417 | reamed hole | without transverse hole | 160 | 34 | 17 | 25 | - | 143 | 82 | 32 | 19,6 | - | 190 | | | 74.71 € | | | K0998.11106 | reamed hole | security | 80 | 24 | 10 | 16 | M6 | 87,5 | 47,5 | 22 | 13,4 | 7,5 | 100 | | | 49.54 € | | | K0998.12126 | reamed hole | security | 100 | 28 | 12 | 20 | M6 | 106,9 | 58,4 | 26 | 16 | 7,5 | 124 | | | 57.30 € | | | K0998.13146 | reamed hole | security | 125 | 30 | 14 | 26 | M6 | 139,1 | 82,1 | 28 | 15,8 | 7,5 | 153 | | | 75.00 € | | | K0998.14176 | reamed hole | security | 160 | 34 | 17 | 26 | M6 | 143,1 | 82,1 | 32 | 19,6 | 7,5 | 190 | | | 77.90 € | |
|
| Order No. | Version 1 | Version 2 | A | D
| D3 | D7 | H | H1 | H2 | H3 | H4 | L | SW | CAD | Acc. | Price | Order |
|---|
| K0998.2110 | square socket | without transverse hole | 80 | 24 | 16 | - | 87,5 | 47,5 | 22 | 13,6 | - | 100 | 10 | | | 48.16 € | | | K0998.2212 | square socket | without transverse hole | 100 | 28 | 20 | - | 107 | 58,5 | 25 | 16 | - | 124 | 12 | | | 54.95 € | | | K0998.2314 | square socket | without transverse hole | 125 | 30 | 25 | - | 139 | 82 | 28 | 15,8 | - | 153 | 14 | | | 72.37 € | | | K0998.2417 | square socket | without transverse hole | 160 | 34 | 25 | - | 143 | 82 | 32 | 19,6 | - | 190 | 17 | | | 75.83 € | | | K0998.21106 | square socket | security | 80 | 24 | 16 | M6 | 87,5 | 47,5 | 22 | 13,4 | 7,5 | 100 | 10 | | | 51.34 € | | | K0998.22126 | square socket | security | 100 | 28 | 20 | M6 | 106,9 | 58,4 | 26 | 16 | 7,5 | 124 | 12 | | | 58.14 € | | | K0998.23146 | square socket | security | 125 | 30 | 26 | M6 | 139,1 | 82,1 | 28 | 15,8 | 7,5 | 153 | 14 | | | 75.56 € | | | K0998.24176 | square socket | security | 160 | 34 | 26 | M6 | 143,1 | 82,1 | 32 | 19,6 | 7,5 | 190 | 17 | | | 79.01 € | |
|
