K2075Crank handles stainless steel with revolving grip |
go back |
|
|
DescriptionMaterial:Crank stainless steel 1.4308.
Cylindrical grip thermoplastic and stainless steel 1.4404. Version:Crank bright.
Thermoplastic black grey.
Stainless steel bright.Note:Similar to DIN 469.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Special features: |

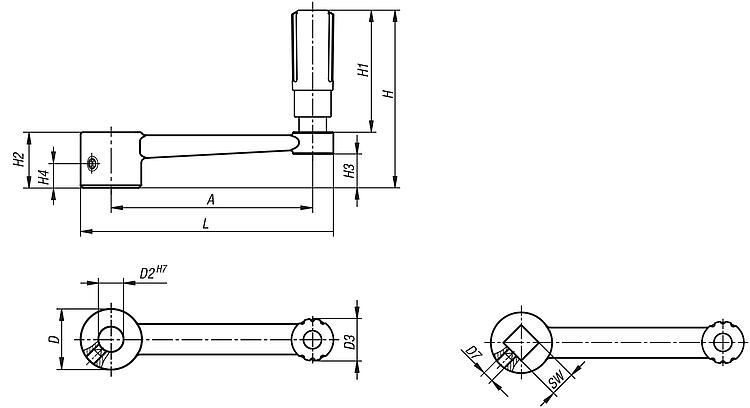

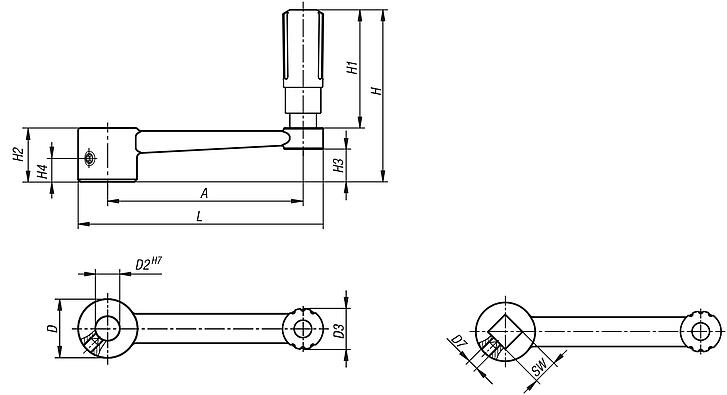

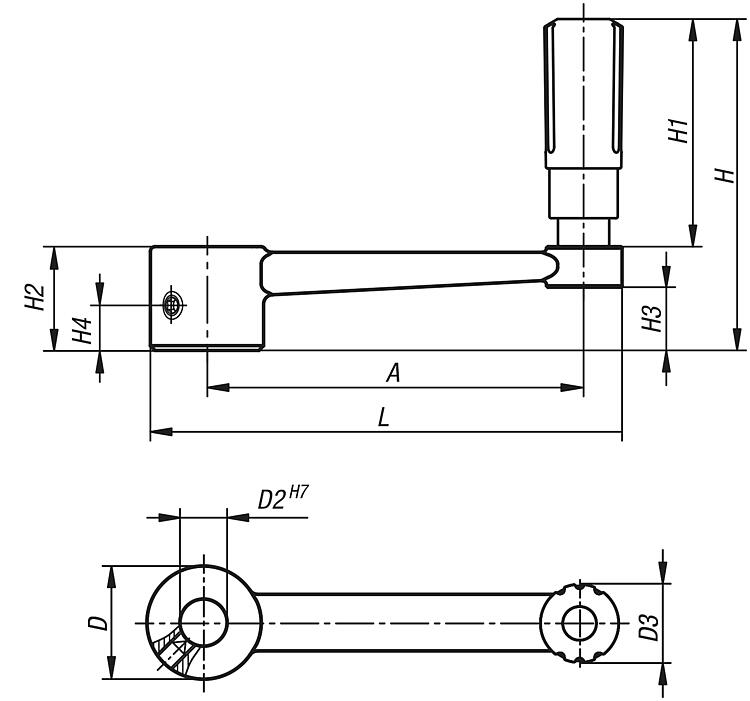

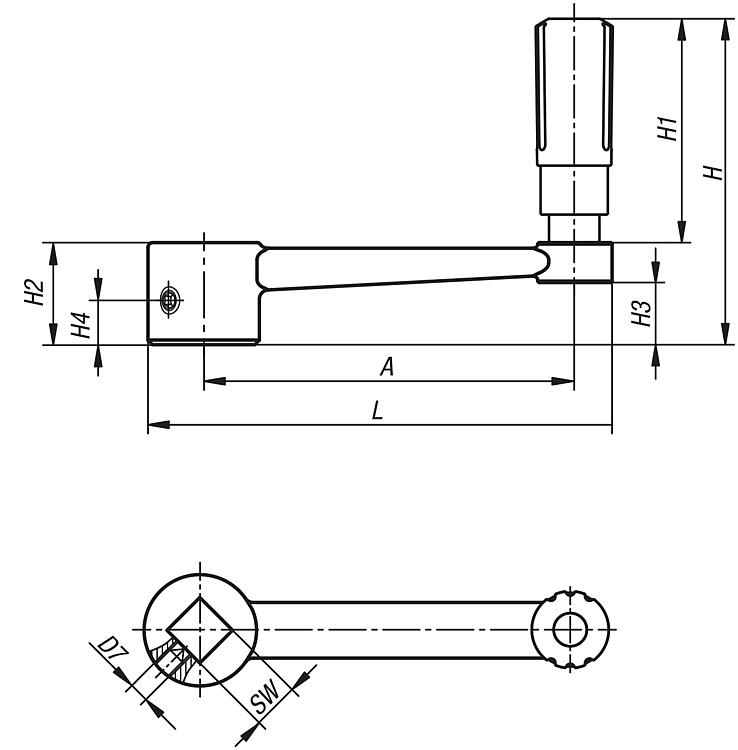

Drawings (total overview) |
| Order No. | Version 1 | Version 2 | A | D
| D2 | D3 | D7 | H | H1 | H2 | H3 | H4 | L | CAD | Acc. | Price | Order |
|---|
| K2075.3110 | reamed hole | without transverse hole | 80 | 24 | 10 | 16 | - | 71,1 | 49,1 | 22 | 13,4 | - | 100 |  | | 23.36 € | | | K2075.3212 | reamed hole | without transverse hole | 100 | 28 | 12 | 20 | - | 87,4 | 61,4 | 26 | 16 | - | 124 | | | 24.83 € | | | K2075.3314 | reamed hole | without transverse hole | 125 | 30 | 14 | 26 | - | 110,5 | 82,5 | 28 | 15,8 | - | 153 | | | 31.16 € | | | K2075.3417 | reamed hole | without transverse hole | 160 | 34 | 17 | 26 | - | 114,5 | 82,5 | 32 | 19,6 | - | 190 | | | 34.55 € | | | K2075.31106 | reamed hole | with transverse bore | 80 | 24 | 10 | 16 | M6 | 71,1 | 49,1 | 22 | 13,4 | 7,5 | 100 | | | 26.54 € | | | K2075.32126 | reamed hole | with transverse bore | 100 | 28 | 12 | 20 | M6 | 87,4 | 61,4 | 26 | 16 | 7,5 | 124 | | | 28.02 € | | | K2075.33146 | reamed hole | with transverse bore | 125 | 30 | 14 | 26 | M6 | 110,5 | 82,5 | 28 | 15,8 | 7,5 | 153 | | | 34.35 € | | | K2075.34176 | reamed hole | with transverse bore | 160 | 34 | 17 | 26 | M6 | 114,5 | 82,5 | 32 | 19,6 | 7,5 | 190 | | | 37.74 € | |
|
| Order No. | Version 1 | Version 2 | A | D
| D3 | D7 | H | H1 | H2 | H3 | H4 | L | SW | CAD | Acc. | Price | Order |
|---|
| K2075.4110 | square socket | without transverse hole | 80 | 24 | 16 | - | 71,1 | 49,1 | 22 | 13,4 | - | 100 | 10 | | | 26.16 € | | | K2075.4212 | square socket | without transverse hole | 100 | 28 | 20 | - | 87,4 | 61,4 | 26 | 16 | - | 124 | 12 | | | 28.68 € | | | K2075.4314 | square socket | without transverse hole | 125 | 30 | 26 | - | 110,5 | 82,5 | 28 | 15,8 | - | 153 | 14 | | | 32.71 € | | | K2075.4417 | square socket | without transverse hole | 160 | 34 | 26 | - | 114,5 | 82,5 | 32 | 19,6 | - | 190 | 17 | | | 38.20 € | | | K2075.41106 | square socket | with transverse bore | 80 | 24 | 16 | M6 | 71,1 | 49,1 | 22 | 13,4 | 7,5 | 100 | 10 | | | 29.35 € | | | K2075.42126 | square socket | with transverse bore | 100 | 28 | 20 | M6 | 87,4 | 61,4 | 26 | 16 | 7,5 | 124 | 12 | | | 31.86 € | | | K2075.43146 | square socket | with transverse bore | 125 | 30 | 26 | M6 | 110,5 | 82,5 | 28 | 15,8 | 7,5 | 153 | 14 | | | 35.89 € | | | K2075.44176 | square socket | with transverse bore | 160 | 34 | 26 | M6 | 114,5 | 82,5 | 32 | 19,6 | 7,5 | 190 | 17 | | | 41.39 € | |
|
