K0124 inchClamping levers, stainless steel with external thread and... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle investment cast 1.4308 (AISI 304 equivalent).
Other steel parts 1.4305 (AISI 303 equivalent). Version:Handle electropolished.
Steel parts bright.Note for ordering:Screws from 70 mm long have 60 mm long threads.
On request:Other threads, screw lengths and special versions.

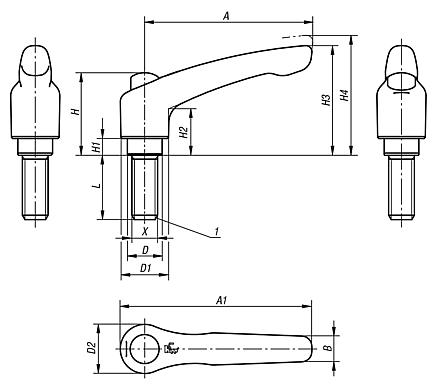

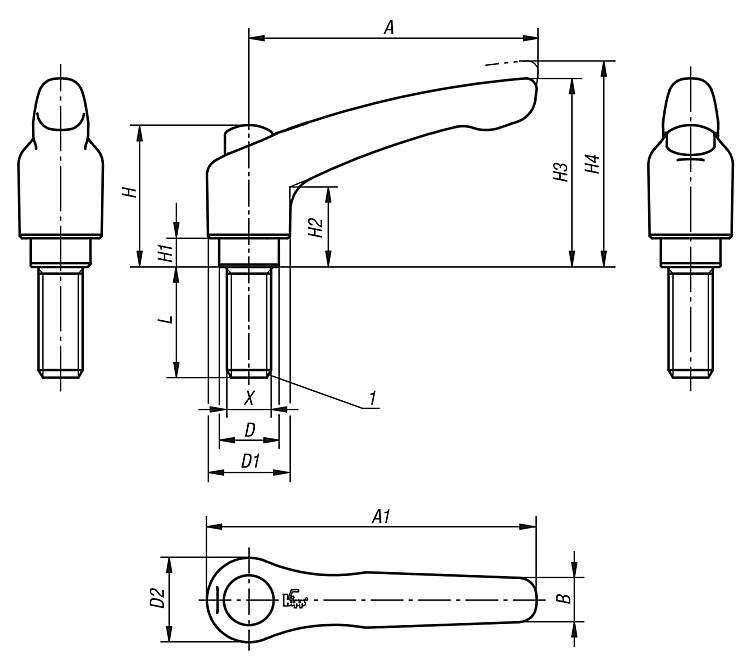

Dimension “H1” available in other lengths at extra charge.Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Size | X | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| L | CAD | Acc. | Price | Order |
|---|
| K0124.92A2X15 | 2 | 1/4-20 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 15 |  | | 29.45 € | | | K0124.92A2X20 | 2 | 1/4-20 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 20 | | | 29.45 € | | | K0124.92A2X25 | 2 | 1/4-20 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 25 | | | 29.45 € | | | K0124.92A2X30 | 2 | 1/4-20 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 30 | | | 29.45 € | | | K0124.92A2X40 | 2 | 1/4-20 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 40 | | | 30.39 € | | | K0124.92A2X50 | 2 | 1/4-20 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 50 | | | 30.39 € | | | K0124.92A2X60 | 2 | 1/4-20 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 60 | | | 30.39 € | | | K0124.92A3X15 | 2 | 5/16-18 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 15 | | | 29.45 € | | | K0124.92A3X20 | 2 | 5/16-18 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 20 | | | 29.45 € | | | K0124.92A3X25 | 2 | 5/16-18 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 25 | | | 29.45 € | | | K0124.92A3X30 | 2 | 5/16-18 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 30 | | | 29.45 € | | | K0124.92A3X40 | 2 | 5/16-18 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 40 | | | 30.39 € | | | K0124.92A3X50 | 2 | 5/16-18 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 50 | | | 30.39 € | | | K0124.92A3X60 | 2 | 5/16-18 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 60 | | | 30.39 € | | | K0124.92A4X20 | 2 | 3/8-16 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 20 | | | 29.45 € | | | K0124.92A4X25 | 2 | 3/8-16 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 25 | | | 29.45 € | | | K0124.92A4X30 | 2 | 3/8-16 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 30 | | | 29.45 € | | | K0124.92A4X40 | 2 | 3/8-16 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 40 | | | 30.39 € | | | K0124.92A4X50 | 2 | 3/8-16 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 50 | | | 30.39 € | | | K0124.92A4X60 | 2 | 3/8-16 | 13,5 | 18,5 | 19 | 32 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 10 | 10 | 60 | | | 30.39 € | | | K0124.93A3X20 | 3 | 5/16-18 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 20 | | | 35.41 € | | | K0124.93A3X25 | 3 | 5/16-18 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 25 | | | 35.41 € | | | K0124.93A3X30 | 3 | 5/16-18 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 30 | | | 35.41 € | | | K0124.93A3X40 | 3 | 5/16-18 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 40 | | | 36.38 € | | | K0124.93A3X50 | 3 | 5/16-18 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 50 | | | 36.38 € | | | K0124.93A3X60 | 3 | 5/16-18 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 60 | | | 36.38 € | | | K0124.93A4X20 | 3 | 3/8-16 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 20 | | | 35.41 € | | | K0124.93A4X25 | 3 | 3/8-16 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 25 | | | 35.41 € | | | K0124.93A4X30 | 3 | 3/8-16 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 30 | | | 35.41 € | | | K0124.93A4X40 | 3 | 3/8-16 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 40 | | | 36.38 € | | | K0124.93A4X50 | 3 | 3/8-16 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 50 | | | 36.38 € | | | K0124.93A4X60 | 3 | 3/8-16 | 16 | 21 | 22 | 41,5 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 11 | 60 | | | 36.38 € | |
