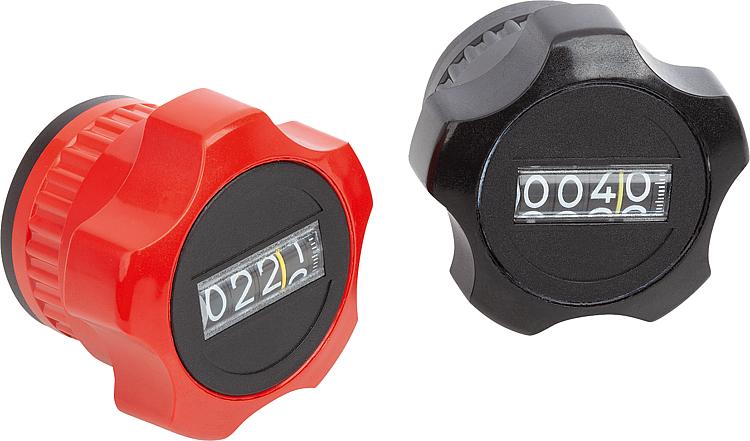

K1928Adjusting knobs with position indicator digital display |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing plastic.
Hollow shaft steel.
Screen plastic.Version:Housing fibreglass reinforced.
Hollow shaft black oxidised.Note:Adjusting knobs with integrated position indicators allow direct readout of set measurement values such as lengths, flow rates, speeds, etc, at a glance. In addition, the display value can be selected per spindle rotation (corresponding spindle pitch), with the different display values being realized by a variable ratio transmission. The torque support allows the use of the adjusting knobs in any assembly position, even in case of high vibrations.

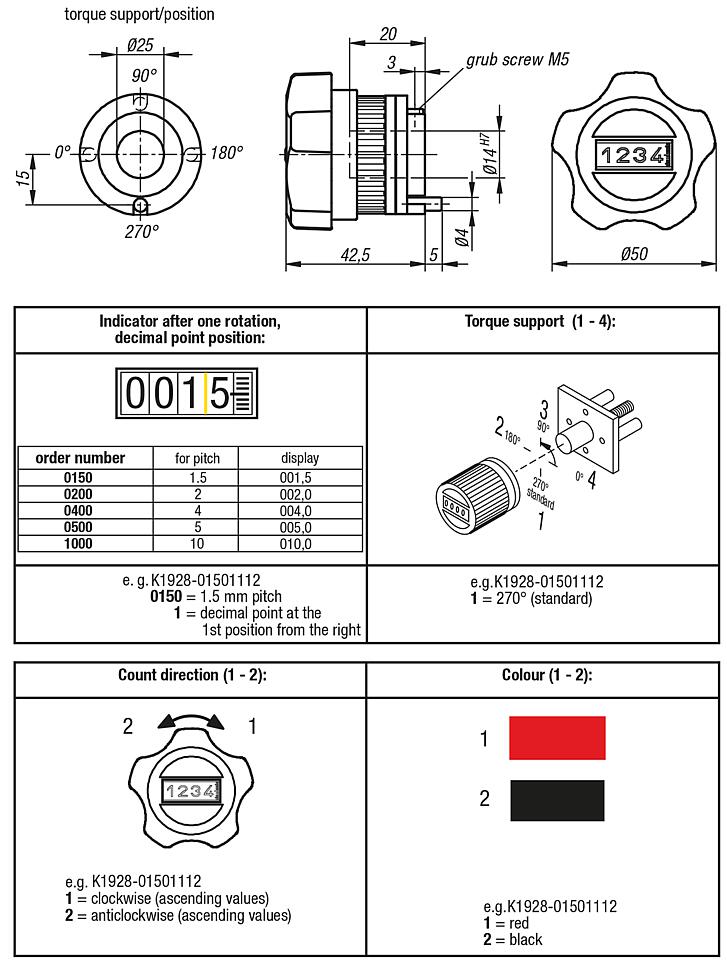

** At the 1st asterisk give torque support and at the 2nd asterisk give the count direction (see sample order "torque support, count direction").Technical data:– Counter consisting of 4 10-position dials + fine scale
– Height of figures about 6 mm
– Hollow shaft Ø 14 H7 mm
– Temperature resistant to 80 °C
– Oil and solvent resistantOn request:Other pitchesAccessory:– Reducing bushes K0412 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Colour | Pitch | Indicator
after one
rotation | Decimal
point in
position | Count direction | torque support | CAD | Acc. | Price | Order |
|---|
| K1928.01501111 | red | 1,5 | 001,5 | 1 | 1 | 1 |  |  | 94.05 € | | | K1928.01501121 | red | 1,5 | 001,5 | 1 | 2 | 1 | | | 94.05 € | | | K1928.01501211 | red | 1,5 | 001,5 | 1 | 1 | 2 | | | 94.05 € | | | K1928.01501221 | red | 1,5 | 001,5 | 1 | 2 | 2 | | | 94.05 € | | | K1928.01501311 | red | 1,5 | 001,5 | 1 | 1 | 3 | | | 94.05 € | | | K1928.01501321 | red | 1,5 | 001,5 | 1 | 2 | 3 | | | 94.05 € | | | K1928.01501411 | red | 1,5 | 001,5 | 1 | 1 | 4 | | | 94.05 € | | | K1928.01501421 | red | 1,5 | 001,5 | 1 | 2 | 4 | | | 94.05 € | | | K1928.02001111 | red | 2 | 002,0 | 1 | 1 | 1 | | | 94.05 € | | | K1928.02001121 | red | 2 | 002,0 | 1 | 2 | 1 | | | 94.05 € | | | K1928.02001211 | red | 2 | 002,0 | 1 | 1 | 2 | | | 94.05 € | | | K1928.02001221 | red | 2 | 002,0 | 1 | 2 | 2 | | | 94.05 € | | | K1928.02001311 | red | 2 | 002,0 | 1 | 1 | 3 | | | 94.05 € | | | K1928.02001321 | red | 2 | 002,0 | 1 | 2 | 3 | | | 94.05 € | | | K1928.02001411 | red | 2 | 002,0 | 1 | 1 | 4 | | | 94.05 € | | | K1928.02001421 | red | 2 | 002,0 | 1 | 2 | 4 | | | 94.05 € | | | K1928.04001111 | red | 4 | 004,0 | 1 | 1 | 1 | | | 94.05 € | | | K1928.04001121 | red | 4 | 004,0 | 1 | 2 | 1 | | | 94.05 € | | | K1928.04001211 | red | 4 | 004,0 | 1 | 1 | 2 | | | 94.05 € | | | K1928.04001221 | red | 4 | 004,0 | 1 | 2 | 2 | | | 94.05 € | | | K1928.04001311 | red | 4 | 004,0 | 1 | 1 | 3 | | | 94.05 € | | | K1928.04001321 | red | 4 | 004,0 | 1 | 2 | 3 | | | 94.05 € | | | K1928.04001411 | red | 4 | 004,0 | 1 | 1 | 4 | | | 94.05 € | | | K1928.04001421 | red | 4 | 004,0 | 1 | 2 | 4 | | | 94.05 € | | | K1928.05001111 | red | 5 | 005,0 | 1 | 1 | 1 | | | 94.05 € | | | K1928.05001121 | red | 5 | 005,0 | 1 | 2 | 1 | | | 94.05 € | | | K1928.05001211 | red | 5 | 005,0 | 1 | 1 | 2 | | | 94.05 € | | | K1928.05001221 | red | 5 | 005,0 | 1 | 2 | 2 | | | 94.05 € | | | K1928.05001311 | red | 5 | 005,0 | 1 | 1 | 3 | | | 94.05 € | | | K1928.05001321 | red | 5 | 005,0 | 1 | 2 | 3 | | | 94.05 € | | | K1928.05001411 | red | 5 | 005,0 | 1 | 1 | 4 | | | 94.05 € | | | K1928.05001421 | red | 5 | 005,0 | 1 | 2 | 4 | | | 94.05 € | | | K1928.10001111 | red | 10 | 010,0 | 1 | 1 | 1 | | | 94.05 € | | | K1928.10001121 | red | 10 | 010,0 | 1 | 2 | 1 | | | 94.05 € | | | K1928.10001211 | red | 10 | 010,0 | 1 | 1 | 2 | | | 94.05 € | | | K1928.10001221 | red | 10 | 010,0 | 1 | 2 | 2 | | | 94.05 € | | | K1928.10001311 | red | 10 | 010,0 | 1 | 1 | 3 | | | 94.05 € | | | K1928.10001321 | red | 10 | 010,0 | 1 | 2 | 3 | | | 94.05 € | | | K1928.10001411 | red | 10 | 010,0 | 1 | 1 | 4 | | | 94.05 € | | | K1928.10001421 | red | 10 | 010,0 | 1 | 2 | 4 | | | 94.05 € | | | K1928.01501112 | black | 1,5 | 001,5 | 1 | 1 | 1 | | | 94.05 € | | | K1928.01501122 | black | 1,5 | 001,5 | 1 | 2 | 1 | | | 94.05 € | | | K1928.01501212 | black | 1,5 | 001,5 | 1 | 1 | 2 | | | 94.05 € | | | K1928.01501222 | black | 1,5 | 001,5 | 1 | 2 | 2 | | | 94.05 € | | | K1928.01501312 | black | 1,5 | 001,5 | 1 | 1 | 3 | | | 94.05 € | | | K1928.01501322 | black | 1,5 | 001,5 | 1 | 2 | 3 | | | 94.05 € | | | K1928.01501412 | black | 1,5 | 001,5 | 1 | 1 | 4 | | | 94.05 € | | | K1928.01501422 | black | 1,5 | 001,5 | 1 | 2 | 4 | | | 94.05 € | | | K1928.02001112 | black | 2 | 002,0 | 1 | 1 | 1 | | | 94.05 € | | | K1928.02001122 | black | 2 | 002,0 | 1 | 2 | 1 | | | 94.05 € | | | K1928.02001212 | black | 2 | 002,0 | 1 | 1 | 2 | | | 94.05 € | | | K1928.02001222 | black | 2 | 002,0 | 1 | 2 | 2 | | | 94.05 € | | | K1928.02001312 | black | 2 | 002,0 | 1 | 1 | 3 | | | 94.05 € | | | K1928.02001322 | black | 2 | 002,0 | 1 | 2 | 3 | | | 94.05 € | | | K1928.02001412 | black | 2 | 002,0 | 1 | 1 | 4 | | | 94.05 € | | | K1928.02001422 | black | 2 | 002,0 | 1 | 2 | 4 | | | 94.05 € | | | K1928.04001112 | black | 4 | 004,0 | 1 | 1 | 1 | | | 94.05 € | | | K1928.04001122 | black | 4 | 004,0 | 1 | 2 | 1 | | | 94.05 € | | | K1928.04001212 | black | 4 | 004,0 | 1 | 1 | 2 | | | 94.05 € | | | K1928.04001222 | black | 4 | 004,0 | 1 | 2 | 2 | | | 94.05 € | | | K1928.04001312 | black | 4 | 004,0 | 1 | 1 | 3 | | | 94.05 € | | | K1928.04001322 | black | 4 | 004,0 | 1 | 2 | 3 | | | 94.05 € | | | K1928.04001412 | black | 4 | 004,0 | 1 | 1 | 4 | | | 94.05 € | | | K1928.04001422 | black | 4 | 004,0 | 1 | 2 | 4 | | | 94.05 € | | | K1928.05001112 | black | 5 | 005,0 | 1 | 1 | 1 | | | 94.05 € | | | K1928.05001122 | black | 5 | 005,0 | 1 | 2 | 1 | | | 94.05 € | | | K1928.05001212 | black | 5 | 005,0 | 1 | 1 | 2 | | | 94.05 € | | | K1928.05001222 | black | 5 | 005,0 | 1 | 2 | 2 | | | 94.05 € | | | K1928.05001312 | black | 5 | 005,0 | 1 | 1 | 3 | | | 94.05 € | | | K1928.05001322 | black | 5 | 005,0 | 1 | 2 | 3 | | | 94.05 € | | | K1928.05001412 | black | 5 | 005,0 | 1 | 1 | 4 | | | 94.05 € | | | K1928.05001422 | black | 5 | 005,0 | 1 | 2 | 4 | | | 94.05 € | | | K1928.10001112 | black | 10 | 010,0 | 1 | 1 | 1 | | | 94.05 € | | | K1928.10001122 | black | 10 | 010,0 | 1 | 2 | 1 | | | 94.05 € | | | K1928.10001212 | black | 10 | 010,0 | 1 | 1 | 2 | | | 94.05 € | | | K1928.10001222 | black | 10 | 010,0 | 1 | 2 | 2 | | | 94.05 € | | | K1928.10001312 | black | 10 | 010,0 | 1 | 1 | 3 | | | 94.05 € | | | K1928.10001322 | black | 10 | 010,0 | 1 | 2 | 3 | | | 94.05 € | | | K1928.10001412 | black | 10 | 010,0 | 1 | 1 | 4 | | | 94.05 € | | | K1928.10001422 | black | 10 | 010,0 | 1 | 2 | 4 | | | 94.05 € | |
