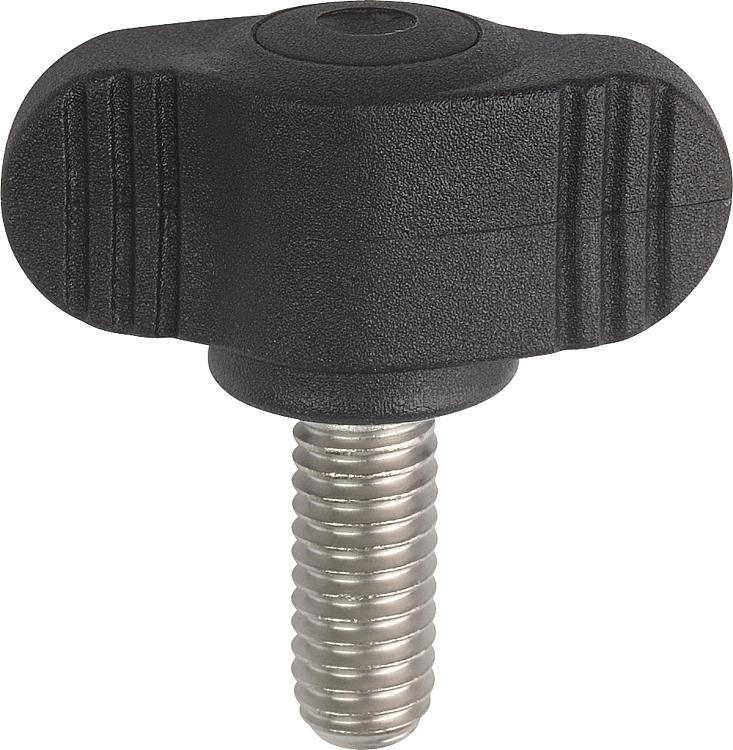

K0274_AGWing grips "Miniwing" with external thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic.
Threaded pin steel 5.8 or stainless steel 1.4305. Version:Grip black grey.
Steel trivalent blue passivated.
Stainless steel bright.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Component
material | A | B | D | D2 | H | H1 | H2 | L | CAD | Acc. | Price | Order |
|---|
| K0274.004X8 | L | steel | 28 | 13 | M4 | 12 | 15 | 13,3 | 2,3 | 8 |  | | 0.62 € | | | K0274.005X10 | L | steel | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 10 | | | 0.62 € | | | K0274.005X15 | L | steel | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 15 | | | 0.65 € | | | K0274.005X20 | L | steel | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 20 | | | 0.66 € | | | K0274.006X10 | L | steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 10 | | | 0.62 € | | | K0274.006X15 | L | steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 15 | | | 0.65 € | | | K0274.006X20 | L | steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 20 | | | 0.66 € | | | K0274.006X25 | L | steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 25 | | | 0.70 € | | | K0274.006X30 | L | steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 30 | | | 0.75 € | | | K0274.008X20 | L | steel | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 20 | | | 0.66 € | | | K0274.008X25 | L | steel | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 25 | | | 0.70 € | | | K0274.008X30 | L | steel | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 30 | | | 0.75 € | | | K0274.008X40 | L | steel | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 40 | | | 0.87 € | | | K0274.806X10 | L | steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 10 | | | 1.28 € | | | K0274.806X15 | L | steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 15 | | | 1.34 € | | | K0274.806X20 | L | steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 20 | | | 1.36 € | | | K0274.806X25 | L | steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 25 | | | 1.40 € | | | K0274.806X30 | L | steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 30 | | | 1.44 € | | | K0274.808X15 | L | steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 15 | | | 1.42 € | | | K0274.808X20 | L | steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 20 | | | 1.45 € | | | K0274.808X25 | L | steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 25 | | | 1.56 € | | | K0274.808X30 | L | steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 30 | | | 1.79 € | | | K0274.808X40 | L | steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 40 | | | 1.90 € | | | K0274.0004X8 | L | stainless steel | 28 | 13 | M4 | 12 | 15 | 13,3 | 2,3 | 8 | | | 1.47 € | | | K0274.0005X10 | L | stainless steel | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 10 | | | 1.07 € | | | K0274.0005X15 | L | stainless steel | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 15 | | | 1.10 € | | | K0274.0005X20 | L | stainless steel | 28 | 13 | M5 | 12 | 15 | 13,3 | 2,3 | 20 | | | 1.18 € | | | K0274.0006X10 | L | stainless steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 10 | | | 1.07 € | | | K0274.0006X15 | L | stainless steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 15 | | | 1.10 € | | | K0274.0006X20 | L | stainless steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 20 | | | 1.18 € | | | K0274.0006X25 | L | stainless steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 25 | | | 1.25 € | | | K0274.0006X30 | L | stainless steel | 28 | 13 | M6 | 12 | 15 | 13,3 | 2,3 | 30 | | | 1.30 € | | | K0274.0008X20 | L | stainless steel | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 20 | | | 1.18 € | | | K0274.0008X25 | L | stainless steel | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 25 | | | 1.25 € | | | K0274.0008X30 | L | stainless steel | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 30 | | | 1.30 € | | | K0274.0008X40 | L | stainless steel | 28 | 13 | M8 | 12 | 15 | 13,3 | 2,3 | 40 | | | 1.45 € | | | K0274.0806X10 | L | stainless steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 10 | | | 1.72 € | | | K0274.0806X15 | L | stainless steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 15 | | | 1.82 € | | | K0274.0806X20 | L | stainless steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 20 | | | 1.84 € | | | K0274.0806X25 | L | stainless steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 25 | | | 1.88 € | | | K0274.0806X30 | L | stainless steel | 40 | 16 | M6 | 14,6 | 21 | 19 | 4 | 30 | | | 1.95 € | | | K0274.0808X15 | L | stainless steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 15 | | | 1.91 € | | | K0274.0808X20 | L | stainless steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 20 | | | 1.97 € | | | K0274.0808X25 | L | stainless steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 25 | | | 2.10 € | | | K0274.0808X30 | L | stainless steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 30 | | | 2.41 € | | | K0274.0808X40 | L | stainless steel | 40 | 16 | M8 | 14,6 | 21 | 19 | 4 | 40 | | | 2.57 € | |
