K0146Palm grips stainless steel, similar to DIN 6335 |
go back |
|
|
DescriptionMaterial:Stainless steel 1.4308.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310. Version:Ground and polished or blasted.

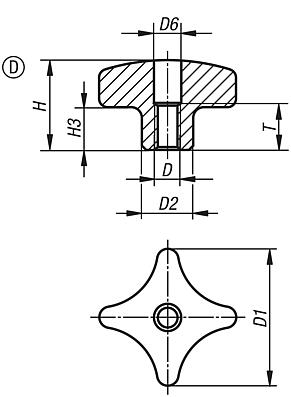

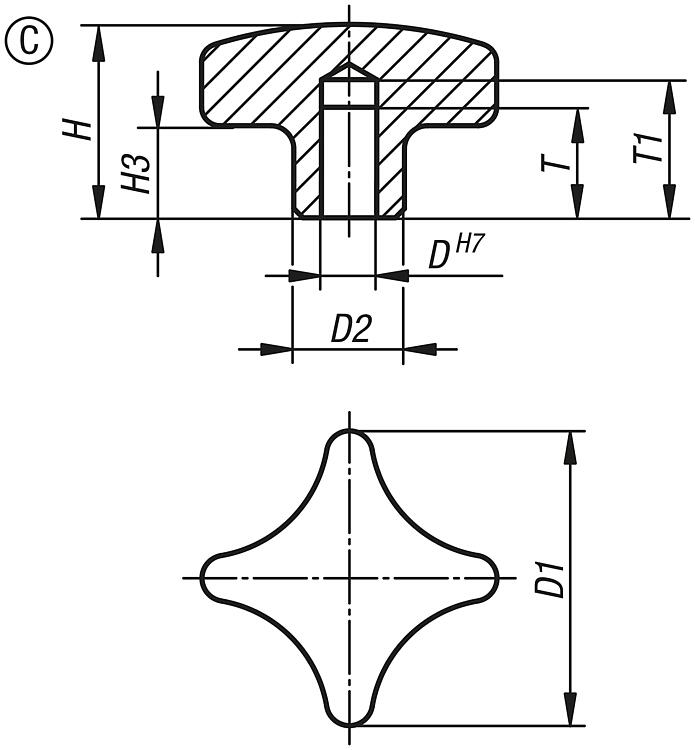

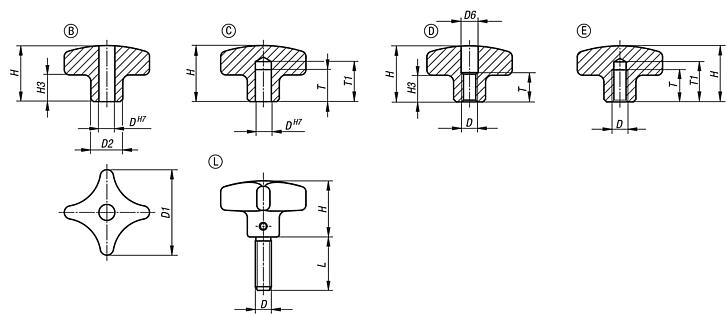

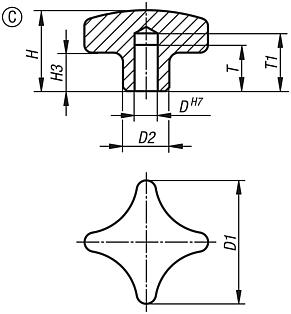

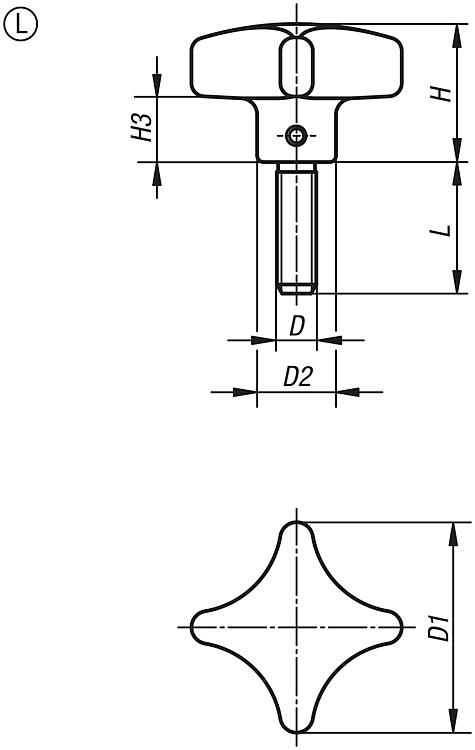

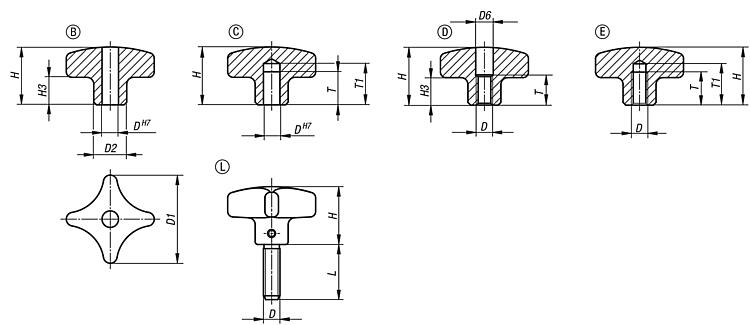

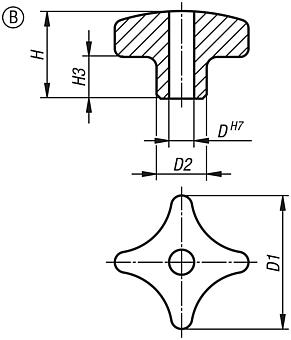

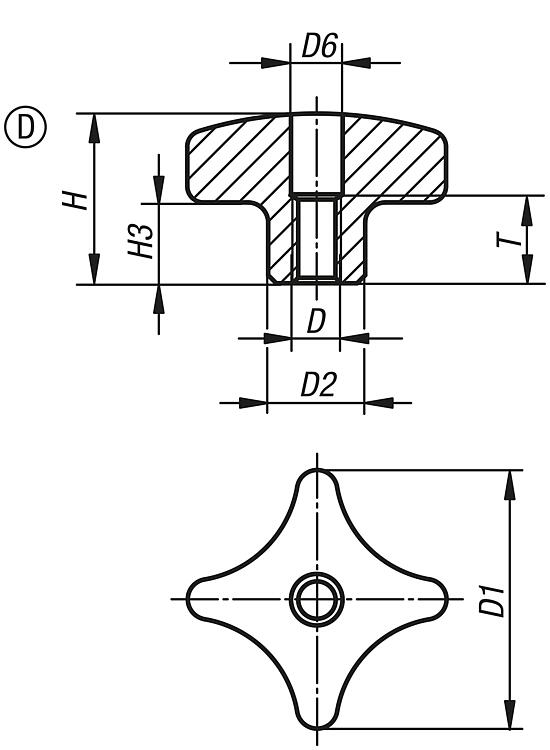

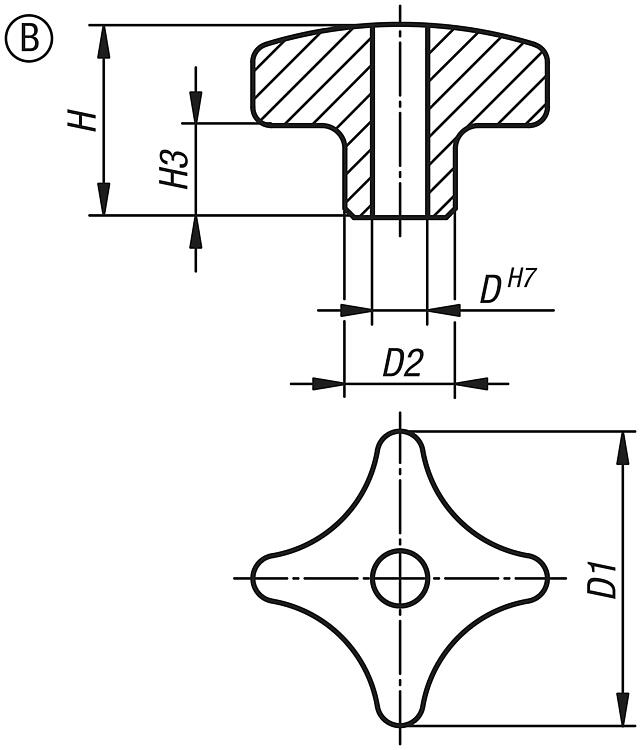

Grub screw and pin bright.Drawing reference:Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored

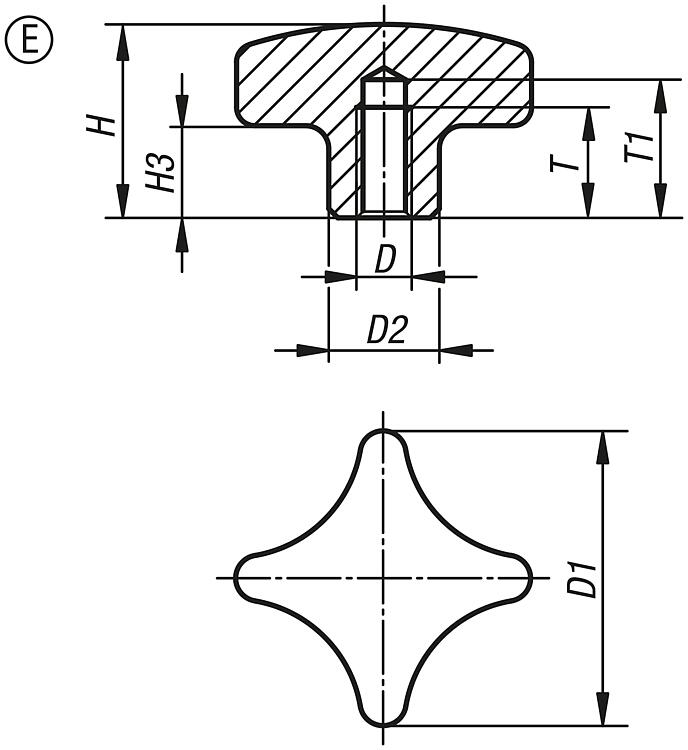

Form E: tapped blind hole
Form L: external thread DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
