Palm grips

go back

Products
- Operating parts | standard elements
  - Grips, knobs
    - Palm grips

Item description/product images

Show/filter all items

DescriptionMaterial:Fibreglass reinforced thermoplastic.
Tapped bush brass.
Screw steel.Version:Grip, black.
Screw electro zinc-plated.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1089 Palm grips

156 kB

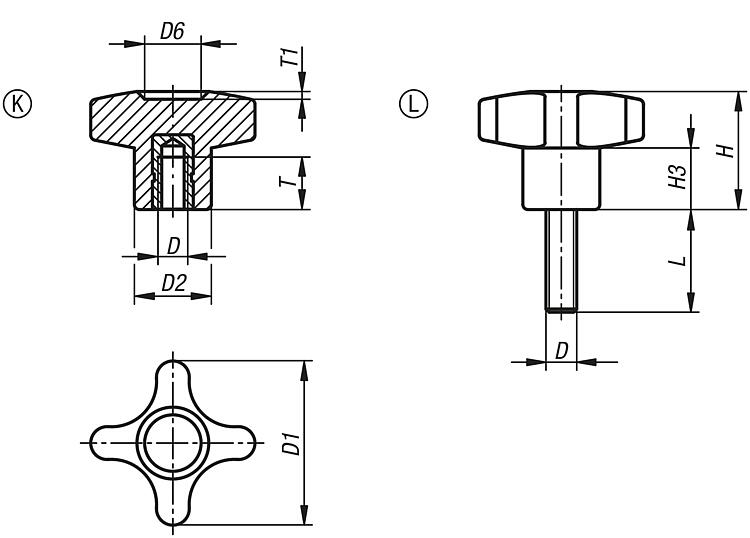

Drawings (total overview)

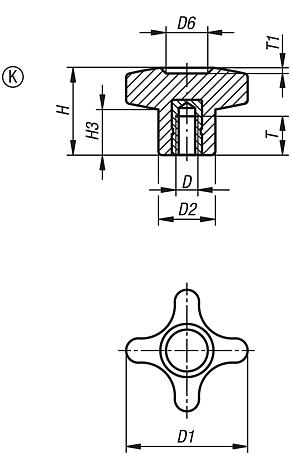

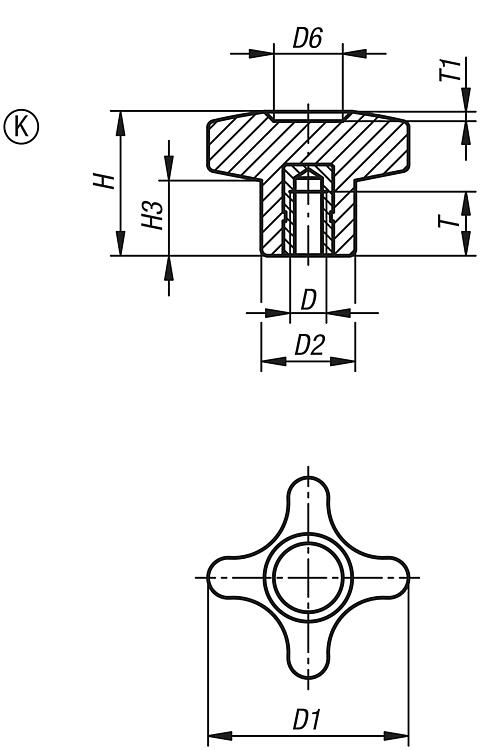

Palm grips with internal thread

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	D6	H	H3	T	T1	Price
K1089.23205	K	M5	32	15	11	23	12	14	1,5	0.90 €
K1089.23206	K	M6	32	15	11	23	12	14	1,5	0.94 €
K1089.24008	K	M8	40	16	13	24,5	12,5	14	1,5	0.94 €
K1089.25010	K	M10	50	20	14	29	15	14	2	1.29 €
K1089.26012	K	M12	60	24	18	34	18,5	18	2	1.90 €

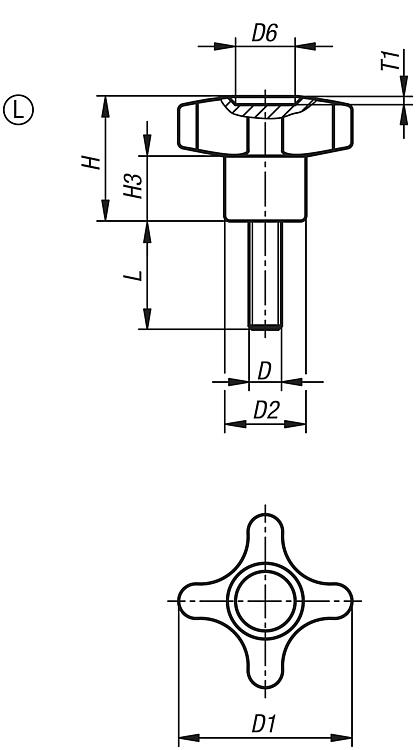

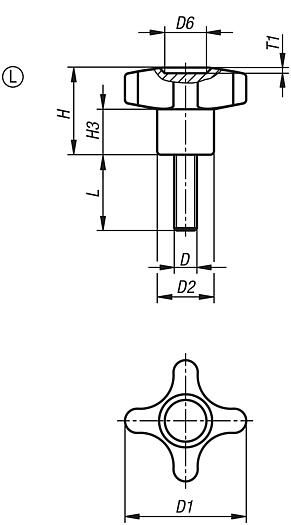

Palm grips with external thread

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	D6	H	H3	T1	L	Price
K1089.43205X16	L	M5	32	15	11	23	11	1,5	16	0.81 €
K1089.43205X20	L	M5	32	15	11	23	11	1,5	20	0.95 €
K1089.43206X16	L	M6	32	15	11	23	11	1,5	16	0.90 €
K1089.43206X20	L	M6	32	15	11	23	11	1,5	20	0.92 €
K1089.43206X30	L	M6	32	15	11	23	11	1,5	30	0.94 €
K1089.43208X16	L	M8	32	15	11	23	11	1,5	16	0.94 €
K1089.43208X20	L	M8	32	15	11	23	11	1,5	20	0.95 €
K1089.43208X30	L	M8	32	15	11	23	11	1,5	30	0.99 €
K1089.43208X40	L	M8	32	15	11	23	11	1,5	40	1.05 €
K1089.44006X20	L	M6	40	15,7	12	24,5	12,5	1	20	0.95 €
K1089.44006X30	L	M6	40	15,7	12	24,5	12,5	1	30	0.96 €
K1089.44008X20	L	M8	40	15,7	12	24,5	12,5	1	20	0.98 €
K1089.44008X30	L	M8	40	15,7	12	24,5	12,5	1	30	1.05 €
K1089.44008X40	L	M8	40	15,7	12	24,5	12,5	1	40	1.07 €
K1089.44008X50	L	M8	40	15,7	12	24,5	12,5	1	50	1.10 €
K1089.45008X20	L	M8	50	20	14,5	29	15	1,5	20	1.20 €
K1089.45008X30	L	M8	50	20	14,5	29	15	1,5	30	1.29 €
K1089.45008X40	L	M8	50	20	14,5	29	15	1,5	40	1.32 €
K1089.45010X20	L	M10	50	20	14,5	29	15	1,5	20	1.38 €
K1089.45010X30	L	M10	50	20	14,5	29	15	1,5	30	1.43 €
K1089.45010X40	L	M10	50	20	14,5	29	15	1,5	40	1.47 €
K1089.45010X50	L	M10	50	20	14,5	29	15	1,5	50	1.57 €
K1089.46010X20	L	M10	60	24	18	34	18,5	1,5	20	1.39 €
K1089.46010X30	L	M10	60	24	18	34	18,5	1,5	30	1.62 €
K1089.46010X40	L	M10	60	24	18	34	18,5	1,5	40	1.66 €
K1089.46010X50	L	M10	60	24	18	34	18,5	1,5	50	1.74 €
K1089.46012X20	L	M12	60	24	18	34	18,5	1,5	20	2.33 €
K1089.46012X30	L	M12	60	24	18	34	18,5	1,5	30	2.49 €
K1089.46012X40	L	M12	60	24	18	34	18,5	1,5	40	2.49 €
K1089.46012X50	L	M12	60	24	18	34	18,5	1,5	50	2.61 €
