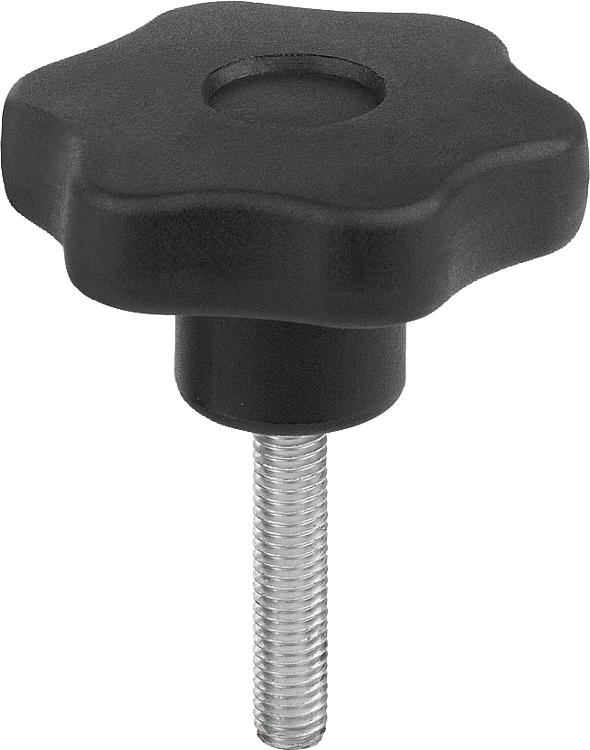

Star grips, Form L, with external thread

Item description/product images

DescriptionMaterial:Fibreglass reinforced thermoplastic.
Screw steel.Version:Grip, black.
Screw electro zinc-plated.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Form	D	D1	D2	D6	H	H3	T1	L	Price
K1090.43006X16	L	M6	30	15	9	22	11	1,5	16	1.08 €
K1090.43006X20	L	M6	30	15	9	22	11	1,5	20	1.16 €
K1090.43006X30	L	M6	30	15	9	22	11	1,5	30	1.16 €
K1090.43008X16	L	M8	30	15	9	22	11	1,5	16	1.10 €
K1090.43008X20	L	M8	30	15	9	22	11	1,5	20	1.16 €
K1090.43008X30	L	M8	30	15	9	22	11	1,5	30	1.23 €
K1090.43008X40	L	M8	30	15	9	22	11	1,5	40	1.27 €
K1090.44006X16	L	M6	40	17	12	24,5	12,5	1	16	1.40 €
K1090.44006X20	L	M6	40	17	12	24,5	12,5	1	20	1.43 €
K1090.44006X30	L	M6	40	17	12	24,5	12,5	1	30	1.44 €
K1090.44006X40	L	M6	40	17	12	24,5	12,5	1	40	1.46 €
K1090.44008X20	L	M8	40	17	12	24,5	12,5	1	20	1.44 €
K1090.44008X30	L	M8	40	17	12	24,5	12,5	1	30	1.50 €
K1090.44008X40	L	M8	40	17	12	24,5	12,5	1	40	1.55 €
K1090.44008X50	L	M8	40	17	12	24,5	12,5	1	50	1.57 €
K1090.45008X20	L	M8	50	20	14,5	29	15	1,5	20	1.76 €
K1090.45008X30	L	M8	50	20	14,5	29	15	1,5	30	1.82 €
K1090.45008X40	L	M8	50	20	14,5	29	15	1,5	40	1.83 €
K1090.45010X20	L	M10	50	20	14,5	29	15	1,5	20	1.90 €
K1090.45010X30	L	M10	50	20	14,5	29	15	1,5	30	1.94 €
K1090.45010X40	L	M10	50	20	14,5	29	15	1,5	40	2.00 €
K1090.45010X50	L	M10	50	20	14,5	29	15	1,5	50	2.09 €
K1090.46010X20	L	M10	60	24	18	34	18	1,5	20	2.45 €
K1090.46010X30	L	M10	60	24	18	34	18	1,5	30	2.53 €
K1090.46010X40	L	M10	60	24	18	34	18	1,5	40	2.56 €
K1090.46010X50	L	M10	60	24	18	34	18	1,5	50	2.66 €
K1090.46012X20	L	M12	60	24	18	34	18	1,5	20	2.49 €
K1090.46012X30	L	M12	60	24	18	34	18	1,5	30	2.56 €
K1090.46012X40	L	M12	60	24	18	34	18	1,5	40	2.59 €
K1090.46012X50	L	M12	60	24	18	34	18	1,5	50	2.72 €
