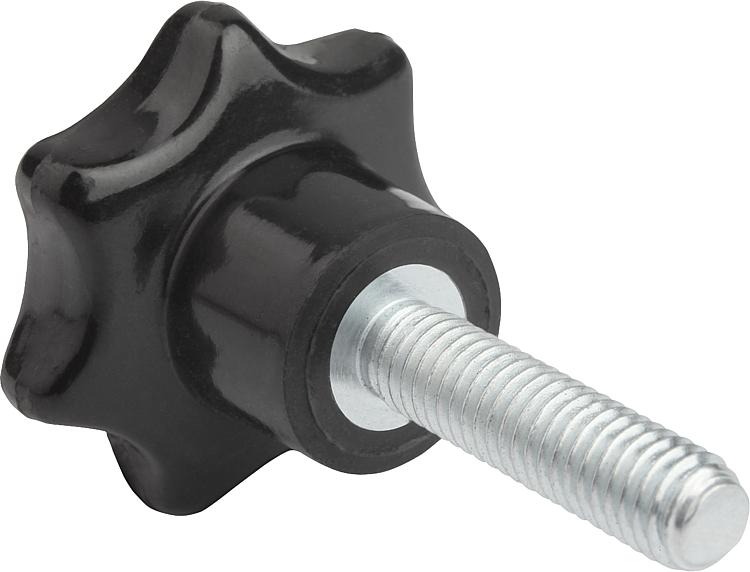

Star grips similar to DIN 6336, metal parts stainless steel Form...

Item description/product images

DescriptionMaterial:

Thermoset PF 31, black.
Bushing or threaded pin stainless steel 1.4301.

Version:High-gloss polished.On request:Other colours.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Form	D	D1	D8	H	H3	L	Price
K1016.42505X15	L	M5	25	12	16	8	15	1.74 €
K1016.42505X20	L	M5	25	12	16	8	20	1.79 €
K1016.42505X25	L	M5	25	12	16	8	25	1.82 €
K1016.43206X15	L	M6	32	14	20	10	15	1.74 €
K1016.43206X20	L	M6	32	14	20	10	20	1.79 €
K1016.43206X25	L	M6	32	14	20	10	25	1.82 €
K1016.43206X30	L	M6	32	14	20	10	30	1.83 €
K1016.43206X40	L	M6	32	14	20	10	40	2.13 €
K1016.44008X20	L	M8	40	18	25	13	20	2.44 €
K1016.44008X25	L	M8	40	18	25	13	25	2.46 €
K1016.44008X30	L	M8	40	18	25	13	30	2.71 €
K1016.44008X40	L	M8	40	18	25	13	40	3.48 €
K1016.44008X50	L	M8	40	18	25	13	50	3.91 €
K1016.45010X25	L	M10	50	22	32	17	25	3.05 €
K1016.45010X30	L	M10	50	22	32	17	30	3.10 €
K1016.45010X40	L	M10	50	22	32	17	40	3.16 €
K1016.45010X50	L	M10	50	22	32	17	50	4.06 €
K1016.46312X30	L	M12	63	26	40	21	30	3.98 €
K1016.46312X40	L	M12	63	26	40	21	40	4.06 €
K1016.46312X50	L	M12	63	26	40	21	50	4.21 €
K1016.46312X60	L	M12	63	26	40	21	60	4.38 €
K1016.48016X30	L	M16	80	35	50	25	30	6.81 €
K1016.48016X40	L	M16	80	35	50	25	40	7.02 €
K1016.48016X50	L	M16	80	35	50	25	50	7.24 €
K1016.48016X60	L	M16	80	35	50	25	60	7.56 €
