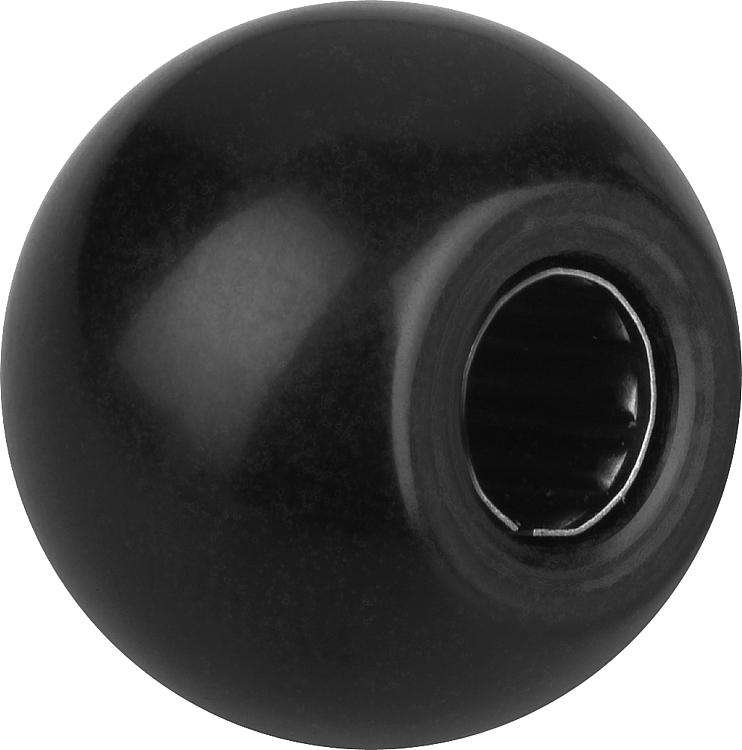

      - Ball knobs, smooth, DIN 319 enhanced, Form L, with clamping sleeve

Item description/product images

DescriptionMaterial:Black thermoset PF 31.
Bush electro zinc-plated steel.Version:High-gloss polished.Note:Assembly Form L: The Ball Knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g!Shank tolerance:Ball knobs with press-fit sleeve can be mounted on standard shafts with tolerance h9. The supplied press-fit sleeve assures a firm and reliable fit.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0159_L Ball knobs, smooth, DIN 319 enhanced, Form L, with clamping sleeve

184 kB

Drawings

Item selection/filter

Order No.	Form	Main colour	D	D1	D6	H	T	Price
K0159.42005	L	black	5	20	12	18	13	1.53 €
K0159.42506	L	black	6	25	15	23	16	1.43 €
K0159.42508	L	black	8	25	15	23	15	1.43 €
K0159.43208	L	black	8	32	18	29	15	1.75 €
K0159.43210	L	black	10	32	18	29	20	1.75 €
K0159.44010	L	black	10	40	20	37,5	20	2.39 €
K0159.44012	L	black	12	40	20	37,5	23	2.39 €
K0159.45012	L	black	12	50	28	48	20	3.73 €
