K2357Latches, steel or stainless steel, with draw bail for up to... |
go back |
|

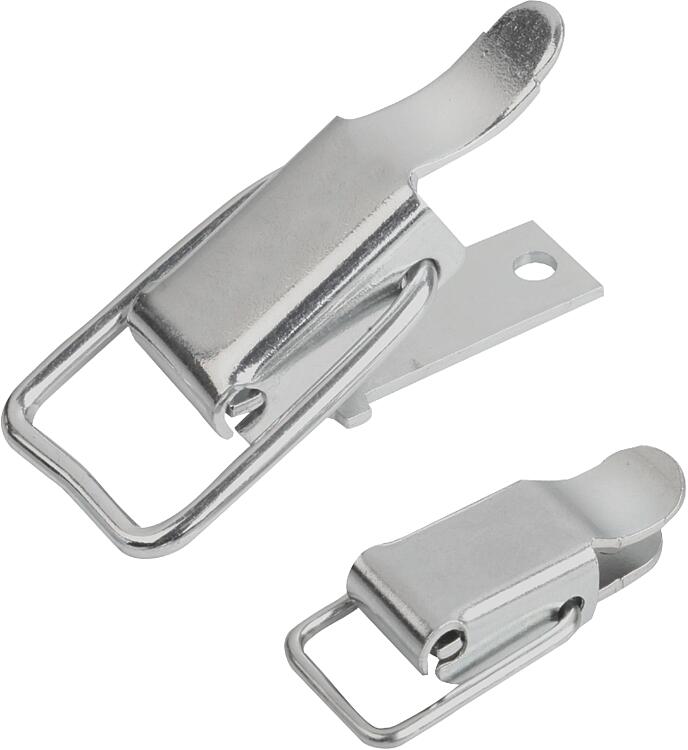

Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4301. Version:Electro zinc-plated, thick-film passivated and sealed with Top Coat.
Stainless steel bright.Note:Latches with draw bail for securing and locking hatches, container lids, machine cladding etc. By exceeding the dead centre they resist vibration.
The locking force is applied by drawing on the bail.
The latches can be screwed down or riveted. We recommend using countersunk screws for fastening the components.
Order catch plates separately.Accessory:Catch plate K2356.
Catch plate K2357.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

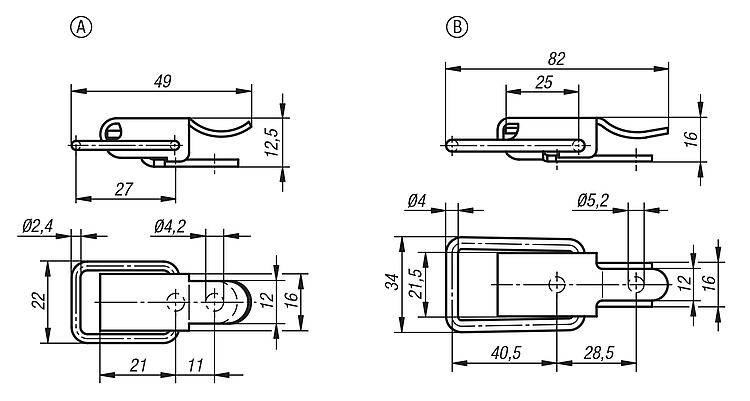

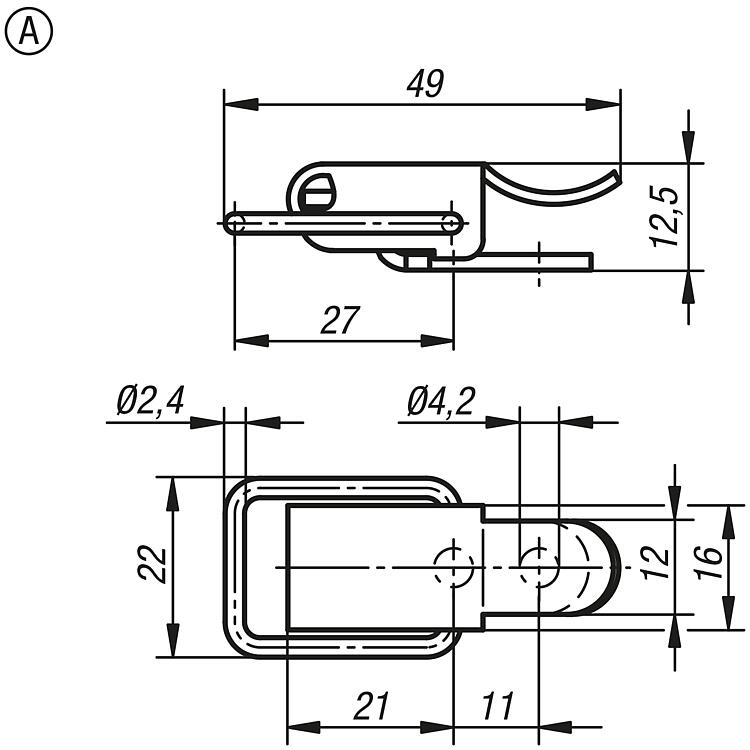

Drawings (total overview) |
