K2359_NASBLatches, fastening holes hidden, not lockable |
go back |
|

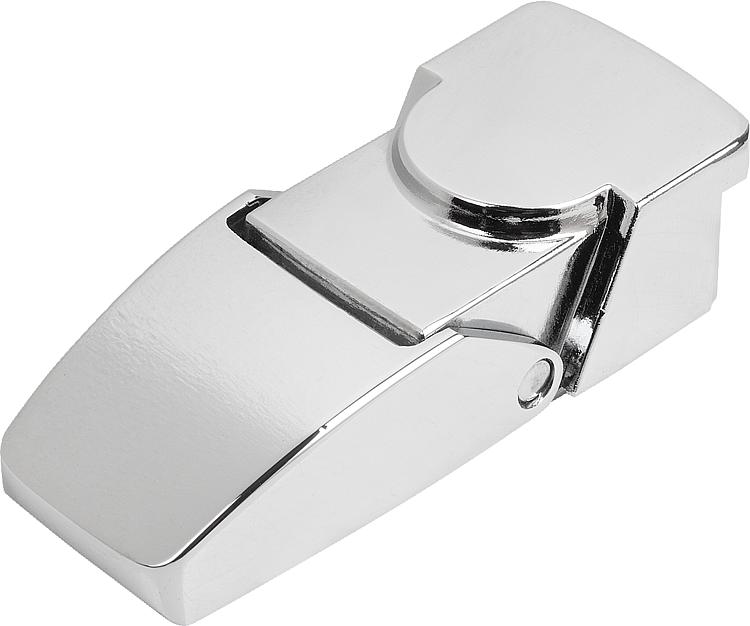

Item description/product images |
|
|
DescriptionMaterial:Die-cast zinc.Version:Black powder-coated, high-gloss chromed or matt chromed.Note:Latches for the easy and secure locking of doors and hatches. The toggle system makes them vibration proof.
The latches can be screwed on or riveted. We recommend using M3 countersunk screws to fasten the components.
The die-cast housing conceals all functional parts and so secures against dismantling when closed.
Max. load capacity is 1,200 N.
Supplied with catch plate.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 1 | Main
colour | Surface finish
body | L | B | H | B1 | D | D1 | E | E1 | E2 | H1 | H2 | L1 | L2 | CAD | Acc. | Price | Order |
|---|
| K2359.10064 | not lockable | black | powder-coated | 64,8 | 26,5 | 18 | 19,7 | 3,2 | 3,2 | 12 | 12 | 30 | 6,5 | 3,5 | 15,5 | 6 |  | | 5.14 € | | | K2359.20064 | not lockable | - | high-gloss chromed | 64,8 | 26,5 | 18 | 19,7 | 3,2 | 3,2 | 12 | 12 | 30 | 6,5 | 3,5 | 15,5 | 6 | | | 5.96 € | | | K2359.30064 | not lockable | - | matt chromed | 64,8 | 26,5 | 18 | 19,7 | 3,2 | 3,2 | 12 | 12 | 30 | 6,5 | 3,5 | 15,5 | 6 | | | 5.96 € | | | K2359.10076 | not lockable | black | powder-coated | 76 | 32 | 21 | 24 | 3,2 | 3,2 | 16 | 12 | 34,5 | 8 | 4 | 16 | 6 | | | 6.77 € | | | K2359.20076 | not lockable | - | high-gloss chromed | 76 | 32 | 21 | 24 | 3,2 | 3,2 | 16 | 12 | 34,7 | 8 | 4 | 16 | 6 | | | 7.59 € | | | K2359.30076 | not lockable | - | matt chromed | 76 | 32 | 21 | 24 | 3,2 | 3,2 | 16 | 12 | 34,9 | 8 | 4 | 16 | 6 | | | 7.59 € | |
