Riser bars, steel, for hook clamps

go back

Products
- Operating parts | standard elements
  - Clamping elements
    - Hook clamps
      - Riser bars, steel, for hook clamps

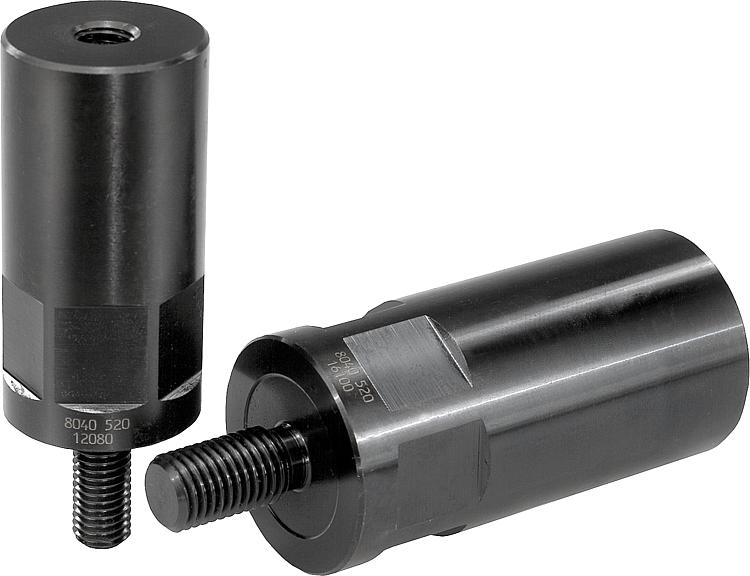

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.Note:The height of the hook clamps and hook clamp holders can be raised using these riser bars.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0018 Riser bars

173 kB

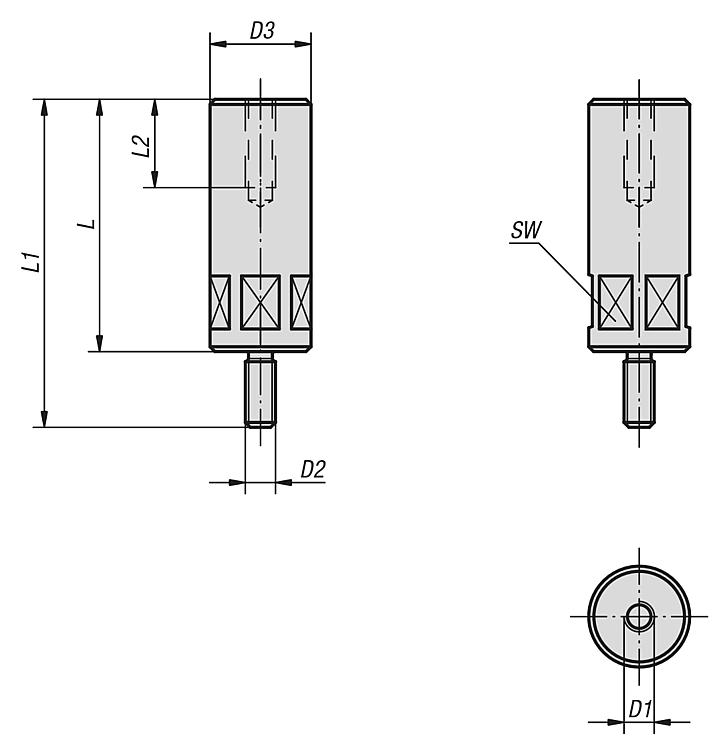

Drawings

Item selection/filter

Order No.	D1	D2	D3	L	L1	L2	SW	Tightening torque max. Nm	Price
K0018.08032	M8	M8	24	32	51	20	22	29,4	15.36 €
K0018.08040	M8	M8	24	40	59	20	22	29,4	15.65 €
K0018.08050	M8	M8	24	50	69	20	22	29,4	15.92 €
K0018.08065	M8	M8	24	65	84	20	22	29,4	16.33 €
K0018.12050	M12	M12	40	50	80	35	36	49	24.53 €
K0018.12065	M12	M12	40	65	95	35	36	49	25.03 €
K0018.12080	M12	M12	40	80	110	35	36	49	26.60 €
K0018.12100	M12	M12	40	100	130	35	36	49	28.81 €
K0018.12125	M12	M12	40	125	155	35	36	49	31.55 €
K0018.12160	M12	M12	40	160	190	35	36	49	35.05 €
K0018.12200	M12	M12	40	200	230	35	36	49	39.83 €
K0018.16050	M16	M16	50	50	80	35	46	78,4	28.50 €
K0018.16065	M16	M16	50	65	95	35	46	78,4	30.61 €
K0018.16080	M16	M16	50	80	110	35	46	78,4	32.99 €
K0018.16100	M16	M16	50	100	130	35	46	78,4	35.83 €
K0018.16125	M16	M16	50	125	155	35	46	78,4	40.52 €
K0018.16160	M16	M16	60	160	190	35	55	78,4	53.20 €
K0018.16200	M16	M16	60	200	230	35	55	78,4	62.43 €
