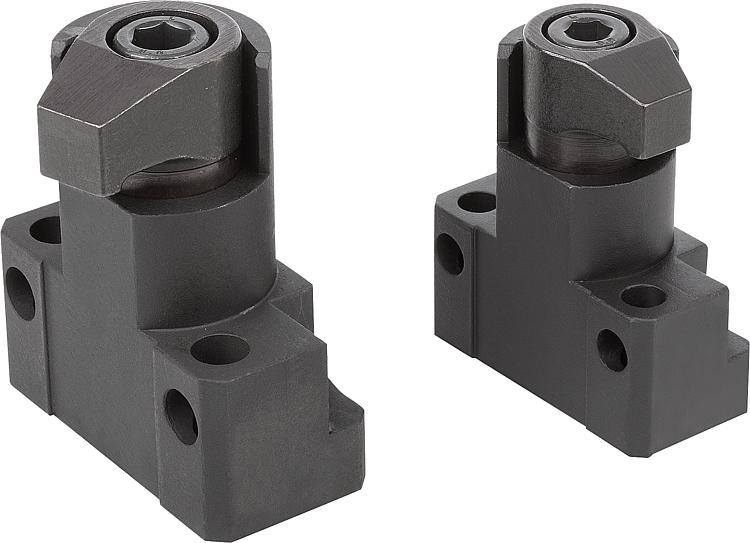

K0016Hook clamps with mounting bracket |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Hook clamps and clamping screw carbon steel, tempered.Version:Black oxidised.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

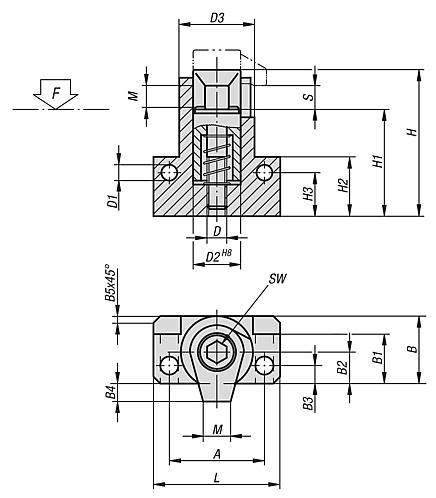

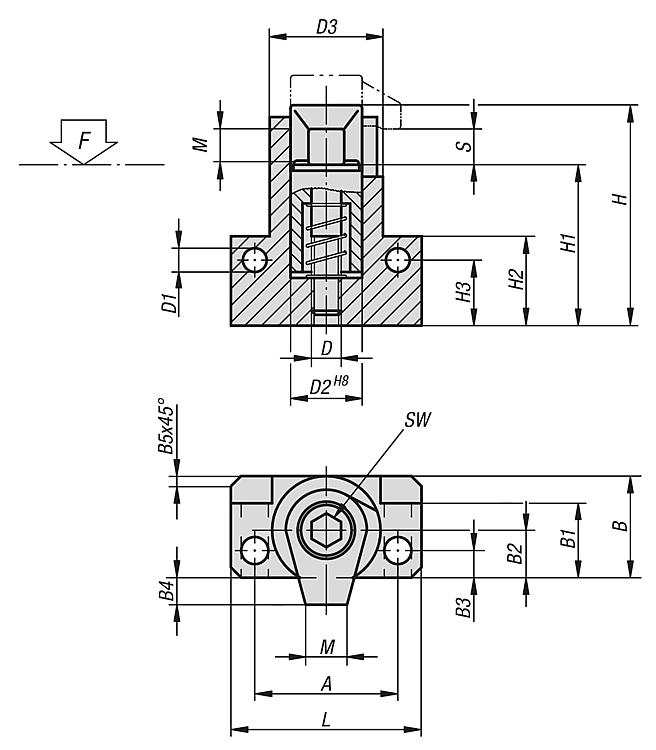

| Order No. | D | D1 | D2 | D3 | A | B | B1 | B2 | B3 | B4 | B5 | H | H1 | H2 | H3 | L | M | S | SW | Tightening
torque
max. Nm
| F
max. kN
| CAD | Acc. | Price | Order |
|---|
| K0016.08 | M8 | 6,4 | 20 | 28 | 38 | 26 | 19,5 | 12 | 6 | 6 | 2,5 | 62 | 47,5 | 25 | 18 | 50 | 10 | 4 | 6 | 30 | 17 |  | | 76.89 € | | | K0016.10 | M10 | 8,4 | 24 | 34 | 48 | 31 | 22,5 | 14 | 7,5 | 9 | 3 | 74 | 57,5 | 30 | 21 | 64 | 12 | 5 | 8 | 50 | 18 | | | 104.78 € | | | K0016.12 | M12 | 10,5 | 28 | 40 | 55 | 36,5 | 26 | 16,5 | 9 | 10,5 | 3,5 | 87 | 67 | 35 | 24 | 75 | 15 | 5 | 10 | 60 | 20 | | | 132.15 € | | | K0016.16 | M16 | 12,8 | 34 | 48 | 65 | 43,5 | 31 | 19,5 | 10 | 16,5 | 4 | 112 | 87 | 45 | 32 | 88 | 20 | 5 | 14 | 120 | 24 | | | 201.87 € | |
