K0416

Swivel feet plates die-cast zinc or stainless steel

go back

Products
- Operating parts | standard elements
  - Swivel feet, levelling feet
    - Swivel feet plates die-cast zinc or stainless steel

Item description/product images

DescriptionMaterial:

Plate die-cast zinc or stainless steel 1.4305.
Anti-slip plate thermoplastic elastomer.

Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.Note:Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint. The anti-slip plate absorbs vibrations and prevents the swivel foot slipping.
For matching threaded spindles see K0421.
For matching ball joints see K0422.Drawing reference:

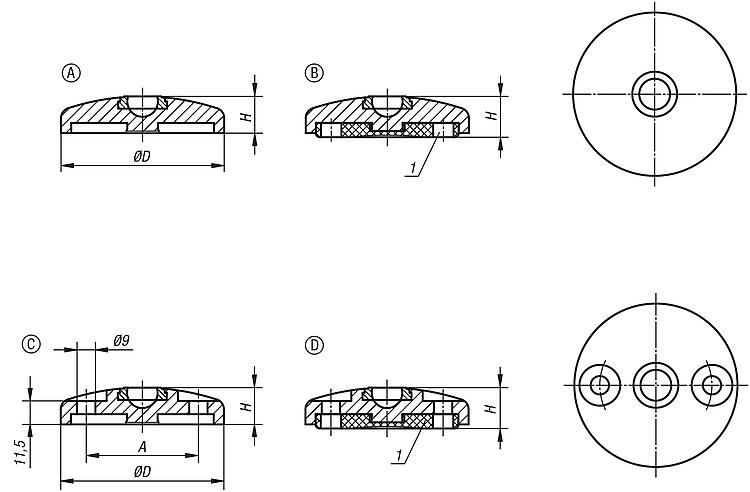

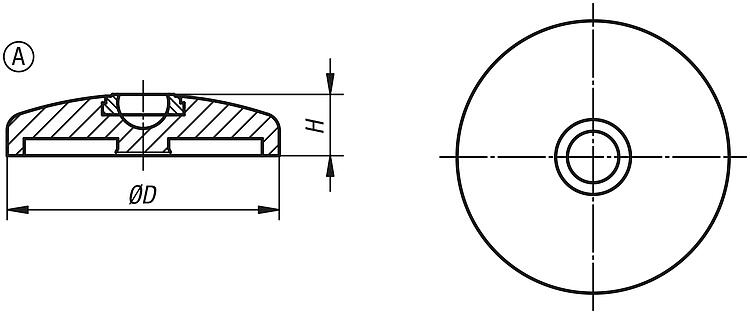

Form A without screw-on hole, without anti-slip plate

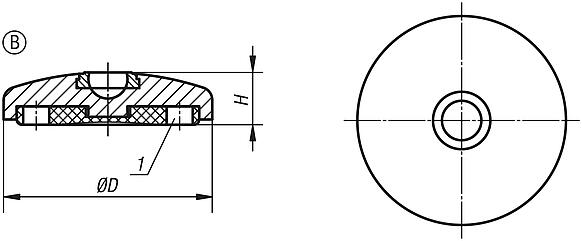

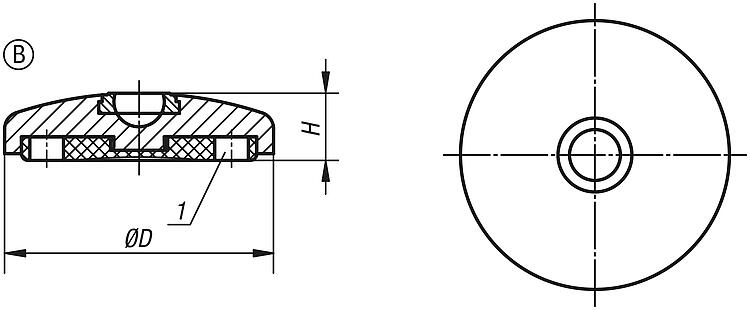

Form B without screw-on hole, with anti-slip plate

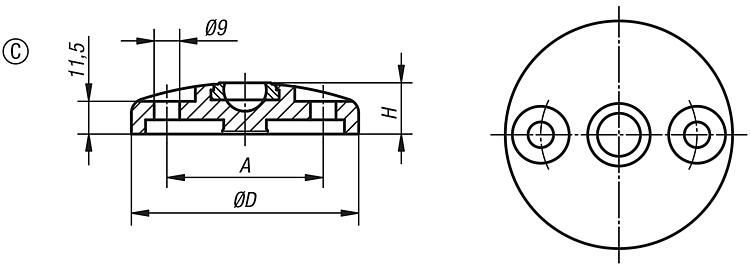

Form C with screw-on hole (open), without anti-slip plate

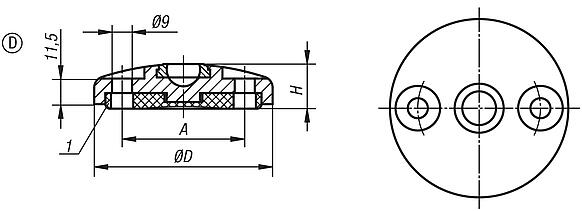

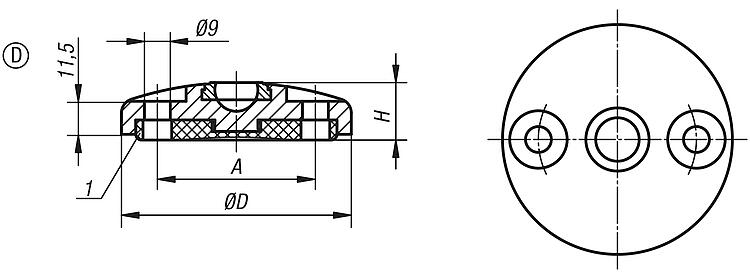

Form D with screw-on hole (open), with anti-slip plate

1) From plate Ø 80

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0416 Swivel feet platesdie-cast zinc or stainless steel

197 kB

Technical Information for swivel feet

141 kB

Drawings (total overview)

Swivel feet plates, Form A

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	A	H	Load rating max. kN	Price
K0416.10301	A	zinc	30	-	18	20	5.06 €
K0416.10401	A	zinc	40	-	18	30	5.79 €
K0416.10451	A	zinc	45	-	18	30	6.82 €
K0416.10501	A	zinc	50	-	18	30	6.82 €
K0416.10601	A	zinc	60	-	18	30	8.04 €
K0416.10801	A	zinc	80	-	18	30	10.92 €
K0416.11001	A	zinc	100	-	18	35	14.84 €
K0416.11201	A	zinc	120	-	18	35	16.36 €
K0416.10302	A	stainless steel	30	-	18	20	10.31 €
K0416.10402	A	stainless steel	40	-	18	30	11.44 €
K0416.10452	A	stainless steel	45	-	18	30	13.05 €
K0416.10502	A	stainless steel	50	-	18	35	15.21 €
K0416.10602	A	stainless steel	60	-	18	35	19.38 €
K0416.10802	A	stainless steel	80	-	18	35	30.95 €
K0416.11002	A	stainless steel	100	-	18	40	47.61 €
K0416.11202	A	stainless steel	120	-	18	40	61.92 €

Swivel feet plates, Form B

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	A	H	Load rating max. kN	Price
K0416.20401	B	zinc	40	-	20	30	6.51 €
K0416.20601	B	zinc	60	-	20	30	8.93 €
K0416.20802	B	stainless steel	80	-	20	35	32.38 €
K0416.20302	B	stainless steel	30	-	20	20	10.97 €
K0416.20451	B	zinc	45	-	20	30	7.66 €
K0416.20502	B	stainless steel	50	-	20	35	16.18 €
K0416.21202	B	stainless steel	120	-	20	40	65.08 €
K0416.21201	B	zinc	120	-	20	35	19.34 €
K0416.20301	B	zinc	30	-	20	20	5.64 €
K0416.20801	B	zinc	80	-	20	30	12.28 €
K0416.20452	B	stainless steel	45	-	20	30	13.85 €
K0416.21002	B	stainless steel	100	-	20	40	50.51 €
K0416.20501	B	zinc	50	-	20	30	7.70 €
K0416.20602	B	stainless steel	60	-	20	35	20.33 €
K0416.21001	B	zinc	100	-	20	35	17.51 €
K0416.20402	B	stainless steel	40	-	20	30	12.22 €

Swivel feet plates, Form C

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	A	H	Load rating max. kN	Price
K0416.30801	C	zinc	80	55	18	30	13.89 €
K0416.31001	C	zinc	100	74	18	35	17.85 €
K0416.31201	C	zinc	120	94	18	35	19.34 €
K0416.30802	C	stainless steel	80	55	18	35	34.13 €
K0416.31002	C	stainless steel	100	74	18	40	50.79 €
K0416.31202	C	stainless steel	120	94	18	40	65.08 €

Swivel feet plates, Form D

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	A	H	Load rating max. kN	Price
K0416.40801	D	zinc	80	55	20	30	15.26 €
K0416.41001	D	zinc	100	74	20	35	20.49 €
K0416.41201	D	zinc	120	94	20	35	22.29 €
K0416.40802	D	stainless steel	80	55	20	35	35.59 €
K0416.41002	D	stainless steel	100	74	20	40	53.67 €
K0416.41202	D	stainless steel	120	94	20	40	68.28 €
