K2148Spherical washers and conical seats combined steel or stainless... |
go back |
|

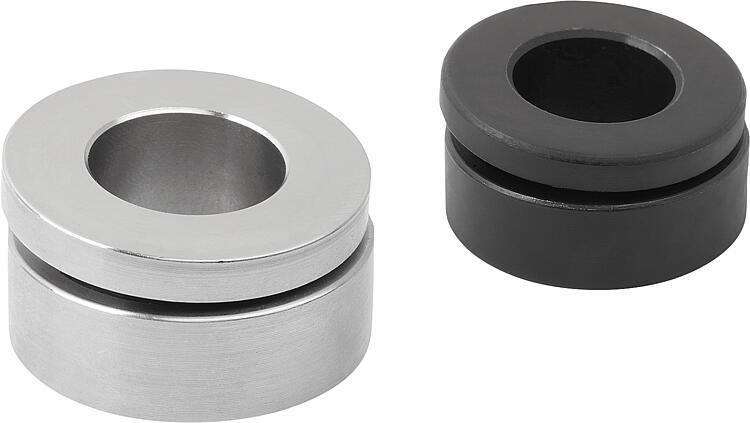

Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4301. Version:Spherical washer steel, case-hardened, hardening depth min. 0.2 mm.
Conical seat steel, hardened and tempered.Note:Spherical washer and conical seat form a firmly connected and captive unit. Quick and easy assembly.
The overall height is greater than the individual parts in accordance with DIN 6319.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

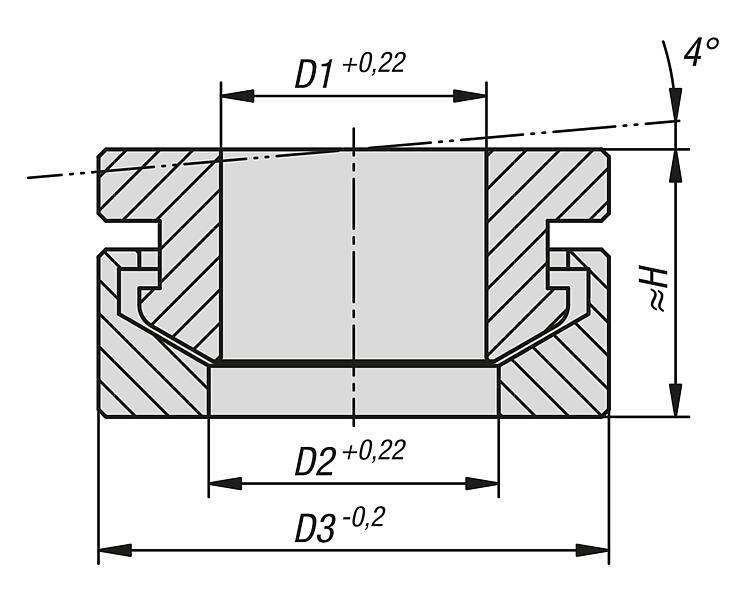

| Order No. | Main
material | D1
| D2 | D3 | H | G | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| K2148.061 | steel | 6,4 | 7,4 | 13 | 7 | M6 | 9 |  | | 5.40 € | | | K2148.081 | steel | 8,4 | 9,7 | 17 | 8,5 | M8 | 17 | | | 6.09 € | | | K2148.101 | steel | 10,5 | 12 | 21 | 10,4 | M10 | 26 | | | 6.97 € | | | K2148.121 | steel | 13 | 14,2 | 25 | 13,1 | M12 | 38 | | | 7.89 € | | | K2148.161 | steel | 17 | 19,7 | 32 | 17 | M16 | 73 | | | 8.55 € | | | K2148.201 | steel | 21 | 24,6 | 40 | 20,3 | M20 | 117 | | | 10.79 € | | | K2148.241 | steel | 25 | 29,4 | 48 | 24,8 | M24 | 168 | | | 12.00 € | | | K2148.301 | steel | 31 | 36,9 | 60 | 31,5 | M30 | 269 | | | 15.49 € | | | K2148.062 | stainless steel A2 | 6,4 | 7,4 | 13 | 7 | M6 | 6 | | | 6.85 € | | | K2148.082 | stainless steel A2 | 8,4 | 9,7 | 17 | 8,5 | M8 | 12 | | | 7.72 € | | | K2148.102 | stainless steel A2 | 10,5 | 12 | 21 | 10,4 | M10 | 16 | | | 8.79 € | | | K2148.122 | stainless steel A2 | 13 | 14,2 | 25 | 13,1 | M12 | 24 | | | 11.35 € | | | K2148.162 | stainless steel A2 | 17 | 19,7 | 32 | 17 | M16 | 45 | | | 10.69 € | | | K2148.202 | stainless steel A2 | 21 | 24,6 | 40 | 20,3 | M20 | 71 | | | 14.86 € | | | K2148.242 | stainless steel A2 | 25 | 29,4 | 48 | 24,8 | M24 | 105 | | | 16.84 € | | | K2148.302 | stainless steel A2 | 31 | 36,9 | 60 | 31,5 | M30 | 191 | | | 24.04 € | |
