K1914Gripper pads round carbide |
go back |
|
Item description/product images |
|
|

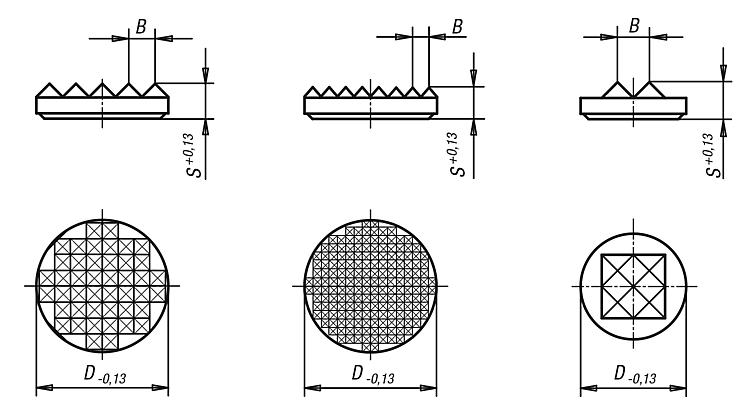

DescriptionMaterial:Carbide.Version:sintered.Note:These carbide gripper pads are available as 4-point or serrated. They have many uses i.e. they can be glued onto cast iron base plates.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Version 2 | D | S | B | CAD | Acc. | Price | Order |
|---|
| K1914.110 | serrated | 6,35 | 3,2 | 2,3 |  | | 8.31 € | | | K1914.111 | serrated | 7,9 | 3,2 | 2,3 | | | 8.50 € | | | K1914.112 | serrated | 9,5 | 3,2 | 3 | | | 7.48 € | | | K1914.113 | serrated | 12,7 | 3,2 | 3 | | | 8.62 € | | | K1914.114 | serrated | 19,05 | 3,2 | 3 | | | 14.99 € | | | K1914.211 | fine serrated | 7,9 | 3,2 | 1,5 | | | 9.02 € | | | K1914.212 | fine serrated | 9,5 | 3,2 | 2,3 | | | 7.48 € | | | K1914.213 | fine serrated | 12,7 | 3,2 | 2,3 | | | 8.62 € | | | K1914.214 | fine serrated | 19,05 | 3,2 | 2,3 | | | 14.99 € | | | K1914.215 | fine serrated | 25,4 | 4 | 2,3 | | | 29.18 € | | | K1914.411 | 4-point contact | 7,9 | 3,2 | 3 | | | 8.50 € | | | K1914.412 | 4-point contact | 9,5 | 3,2 | 3 | | | 7.48 € | | | K1914.413 | 4-point contact | 12,7 | 4 | 3,5 | | | 9.02 € | |
