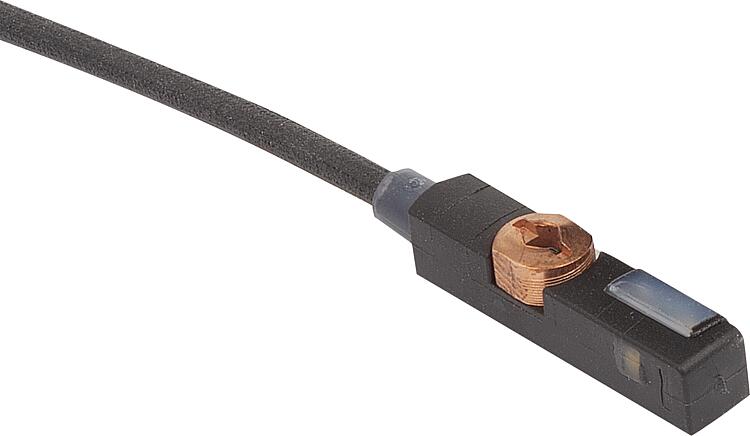

DescriptionProduct description:Magnetic field sensor for detecting the piston position of a pneumatic cylinder in which a magnet is installed.Material:Housing thermoplastic PA12. Active area PU. Connection cable PUR.Version:Housing black. Mounted in the T-slot.Technical data:Output relay: PNP normally open (NO) Operating voltage: 10 - 30 V DC Operating current: 200 mA Switch field strength: 2 kA/m Switching frequency: 3000 Hz Short-circuit proof: yes Reverse polarity protected: no Rating: IP67 Connection type: 2 m PUR cable Approvals: CE, c-UL-us, UKCA, WEEETemperature range:-25 °C to +85 °CAssembly:Insert from above into the T-slot and lock with the clamping screw. SW2, max. tightening torque 0.4 Nm.Accessory:Stainless steel pneumatic indexing plungers K2202. Sensor holder with T-slot K2204.Drawing reference:

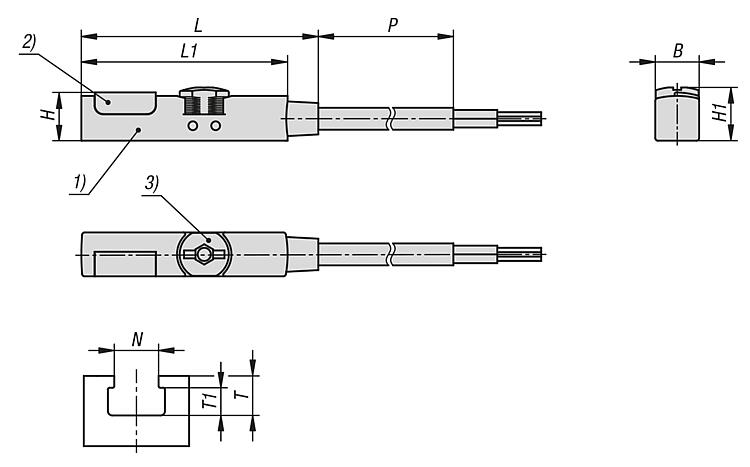

1) Active area 2) LED 3) Lock screw

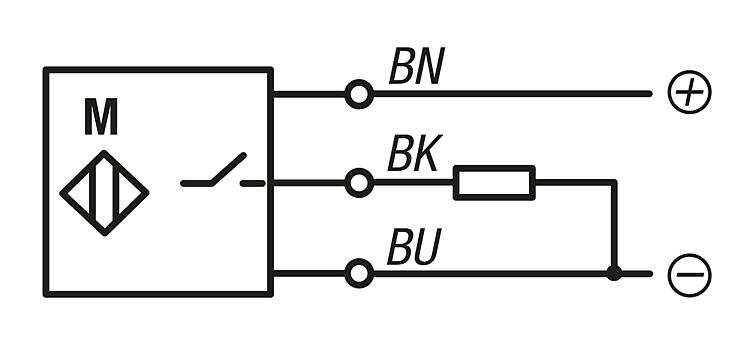

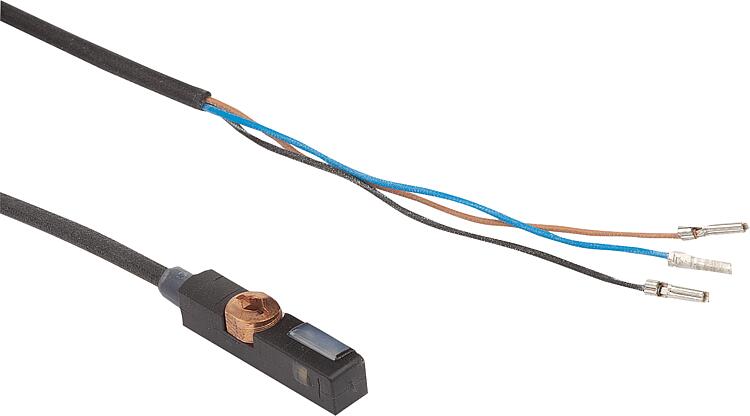

BN= Brown BK= Black BU= Blue
