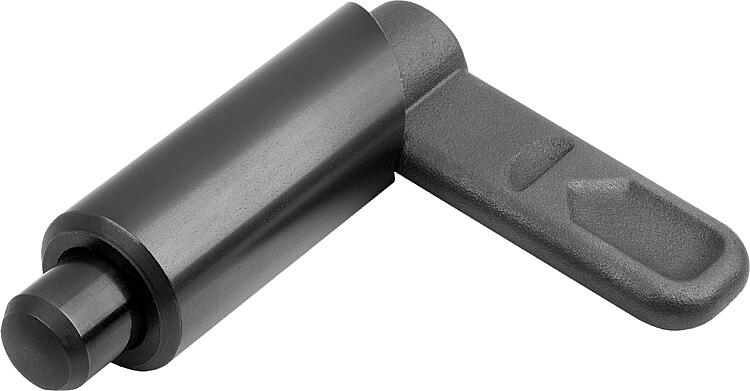

K1670_ECam-action indexing plungers, Form E, without grip cap |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Sleeve 1.0403.
Indexing pin free-cutting steel.
Spring 1.4310.Version:Sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.Note:If the cam-action indexing plunger is to be welded on, the sleeve should be tack welded so that the spring is not thermally damaged from the high temperatures.Advantages:Turning the grip through 180° retracts the pin.
Smooth sleeve, Connecting option via adapter sleeveOn request:Special versions.
Accessory:Positioning bushes K1290, K1839, K1840.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | L | L1 | B | B1 | H | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| K1670.080410 | E | 4 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1 | 8 | 14 |  | | 11.66 € | | | K1670.080510 | E | 5 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1,3 | 8 | 14 | | | 11.66 € | | | K1670.080610 | E | 6 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1,8 | 8 | 14 | | | 11.66 € | | | K1670.080512 | E | 5 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 1,3 | 8 | 14 | | | 11.95 € | | | K1670.080612 | E | 6 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 1,8 | 8 | 14 | | | 11.95 € | | | K1670.080812 | E | 8 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 2,3 | 8 | 14 | | | 11.95 € | | | K1670.080616 | E | 6 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 1,8 | 15 | 35 | | | 14.19 € | | | K1670.080816 | E | 8 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 2,3 | 15 | 35 | | | 14.19 € | | | K1670.081016 | E | 10 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 2,8 | 15 | 35 | | | 14.19 € | | | K1670.080820 | E | 8 | 20 | 71 | 50 | 18 | 6 | 12 | 2,3 | 20 | 60 | | | 16.26 € | | | K1670.081020 | E | 10 | 20 | 71 | 50 | 18 | 6 | 12 | 2,8 | 20 | 60 | | | 16.26 € | | | K1670.081220 | E | 12 | 20 | 71 | 50 | 18 | 6 | 12 | 3 | 20 | 60 | | | 16.26 € | |
