K2397Four-lip profiles EPDM foam rubber |
go back |
|
Item description/product images |
|
|

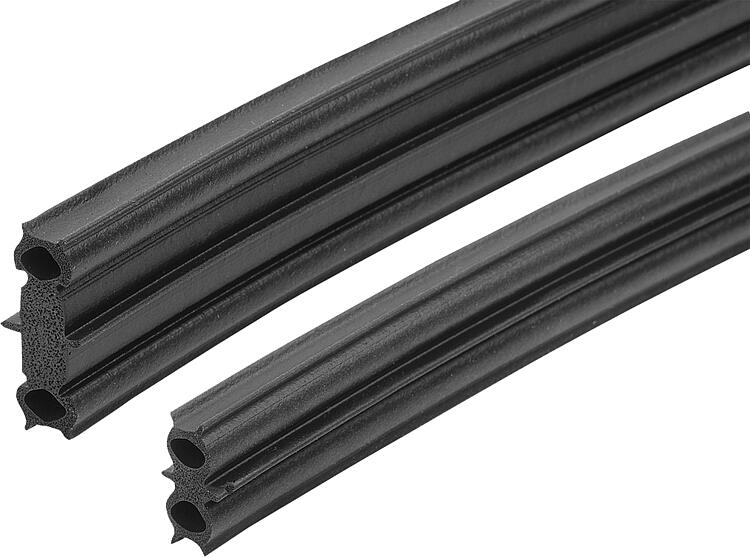

DescriptionProduct description:EPDM foam rubber sealing profiles for installation in sealing ducts, slots or U-profiles.
These four-lip profiles reliably seal and protect components from external influences.Material:EPDM foam rubber.Version:black.Note:Channel width must not be less than 8.6 mm.
H1= compressed dimension.
Type-tested according to UL 157 and UL 50E guidelines.
For optimal performance, the seal must be able to move freely and should ideally only be held in place by the two centre fins.
Observe tolerance specifications as per DIN ISO 3302-01.Application:- Switchbox construction
- Machine and plant construction
- Automotive industry
- Construction and window fabricationAssembly:Quick, simple and smooth installation. When pressed in by hand, the four-lip profile wedges itself into a cavity or channel between two surfaces. The lateral fins prevent the profile from falling out.Advantages:Wide tolerance compensation with applied pressure.
The seal works in both directions with positive and negative pressure.

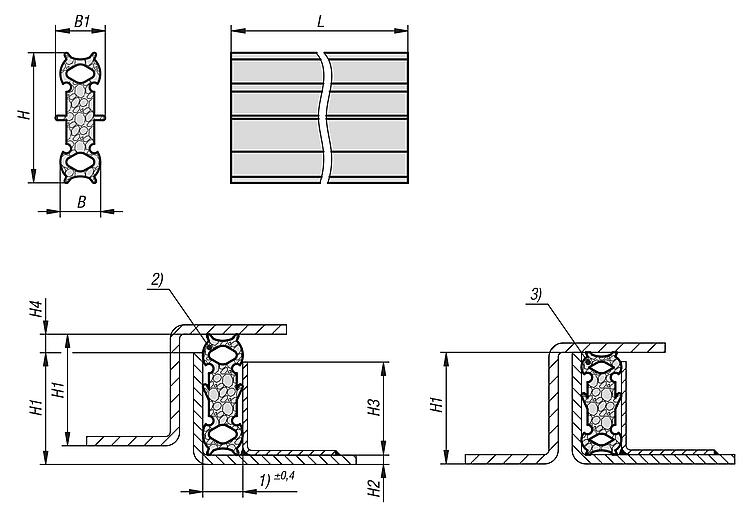

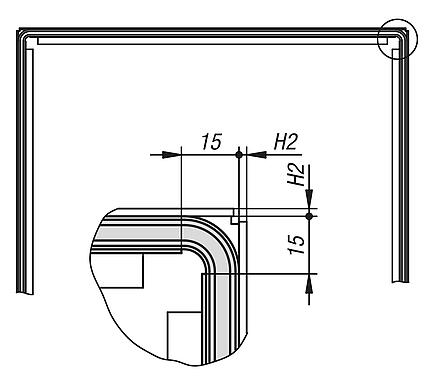

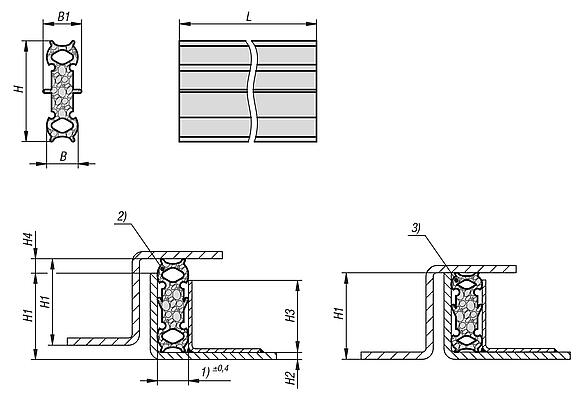

No distortions in corners with small radii.On request:Other lengths.Drawing reference:1) Holding area
2) Uncompressed state
3) Compressed state DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | B
| B1 | H | H1 | H2 | H3 | H4 | L | Clamping range
mm | CAD | Acc. | Price | Order |
|---|
| K2397.018X2000 | 8,6 | 10,7 | 18 | 16 | 2 | 12 | 4 | 2000 | 8,6 |  | | 8.53 € | | | K2397.018X5000 | 8,6 | 10,7 | 18 | 16 | 2 | 12 | 4 | 5000 | 8,6 | | | 18.06 € | | | K2397.018X10000 | 8,6 | 10,7 | 18 | 16 | 2 | 12 | 4 | 10000 | 8,6 | | | 33.95 € | | | K2397.018X20000 | 8,6 | 10,7 | 18 | 16 | 2 | 12 | 4 | 20000 | 8,6 | | | 65.73 € | | | K2397.018X40000 | 8,6 | 10,7 | 18 | 16 | 2 | 12 | 4 | 40000 | 8,6 | | | 129.28 € | | | K2397.020X2000 | 8,6 | 10,7 | 20 | 18 | 2 | 14 | 4 | 2000 | 8,6 | | | 8.70 € | | | K2397.020X5000 | 8,6 | 10,7 | 20 | 18 | 2 | 14 | 4 | 5000 | 8,6 | | | 18.50 € | | | K2397.020X10000 | 8,6 | 10,7 | 20 | 18 | 2 | 14 | 4 | 10000 | 8,6 | | | 34.84 € | | | K2397.020X20000 | 8,6 | 10,7 | 20 | 18 | 2 | 14 | 4 | 20000 | 8,6 | | | 67.51 € | | | K2397.020X40000 | 8,6 | 10,7 | 20 | 18 | 2 | 14 | 4 | 40000 | 8,6 | | | 132.85 € | | | K2397.022X2000 | 8,6 | 10,7 | 22 | 20 | 2 | 16 | 4 | 2000 | 8,6 | | | 9.12 € | | | K2397.022X5000 | 8,6 | 10,7 | 22 | 20 | 2 | 16 | 4 | 5000 | 8,6 | | | 19.55 € | | | K2397.022X10000 | 8,6 | 10,7 | 22 | 20 | 2 | 16 | 4 | 10000 | 8,6 | | | 36.92 € | | | K2397.022X20000 | 8,6 | 10,7 | 22 | 20 | 2 | 16 | 4 | 20000 | 8,6 | | | 71.67 € | | | K2397.022X40000 | 8,6 | 10,7 | 22 | 20 | 2 | 16 | 4 | 40000 | 8,6 | | | 141.16 € | | | K2397.024X2000 | 8,6 | 10,7 | 24 | 22 | 2 | 18 | 4 | 2000 | 8,6 | | | 10.25 € | | | K2397.024X5000 | 8,6 | 10,7 | 24 | 22 | 2 | 18 | 4 | 5000 | 8,6 | | | 22.36 € | | | K2397.024X10000 | 8,6 | 10,7 | 24 | 22 | 2 | 18 | 4 | 10000 | 8,6 | | | 42.56 € | | | K2397.024X20000 | 8,6 | 10,7 | 24 | 22 | 2 | 18 | 4 | 20000 | 8,6 | | | 82.95 € | | | K2397.024X40000 | 8,6 | 10,7 | 24 | 22 | 2 | 18 | 4 | 40000 | 8,6 | | | 163.74 € | | | K2397.026X2000 | 8,6 | 10,7 | 26 | 24 | 2 | 20 | 4 | 2000 | 8,6 | | | 10.90 € | | | K2397.026X5000 | 8,6 | 10,7 | 26 | 24 | 2 | 20 | 4 | 5000 | 8,6 | | | 24.00 € | | | K2397.026X10000 | 8,6 | 10,7 | 26 | 24 | 2 | 20 | 4 | 10000 | 8,6 | | | 45.83 € | | | K2397.026X20000 | 8,6 | 10,7 | 26 | 24 | 2 | 20 | 4 | 20000 | 8,6 | | | 89.49 € | | | K2397.026X40000 | 8,6 | 10,7 | 26 | 24 | 2 | 20 | 4 | 40000 | 8,6 | | | 176.80 € | | | K2397.028X2000 | 8,6 | 10,7 | 28 | 26 | 2 | 22 | 4 | 2000 | 8,6 | | | 11.62 € | | | K2397.028X5000 | 8,6 | 10,7 | 28 | 26 | 2 | 22 | 4 | 5000 | 8,6 | | | 25.78 € | | | K2397.028X10000 | 8,6 | 10,7 | 28 | 26 | 2 | 22 | 4 | 10000 | 8,6 | | | 49.39 € | | | K2397.028X20000 | 8,6 | 10,7 | 28 | 26 | 2 | 22 | 4 | 20000 | 8,6 | | | 96.61 € | | | K2397.028X40000 | 8,6 | 10,7 | 28 | 26 | 2 | 22 | 4 | 40000 | 8,6 | | | 191.06 € | |
